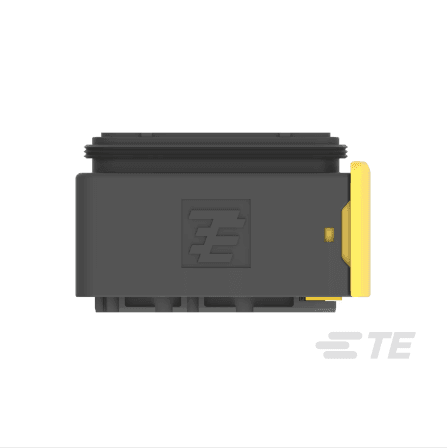

1-1564337-1

16 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm / 6 mm [.157 in / .236 in] Centerline, Heavy Duty Sealed Connector Series

Additional information

Number of Positions	16
Connector & Housing Type	Housing for Female Terminals
Mating Tab Width (mm)	1.5, 2.8
Mating Tab Width (in)	.059, .11
Connector System	Wire-to-Wire
Centerline (Pitch) (mm)	4, 6
Centerline (Pitch) (in)	.157, .236

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features	Number of Positions : 16 Number of Rows : 2
Product Type Features	Connector Shape : Rectangular Mixed & Hybrid Connector : Yes Connector & Housing Type : Housing for Female Terminals Connector System : Wire-to-Wire Sealable : Yes Primary Locking Feature : On the Terminal Connector & Contact Terminates To : Wire & Cable
Contact Features	Contact Type : Receptacle Contact Size : 1.5K, 2.8mm Mating Tab Width (mm): 1.5, 2.8 Mating Tab Width (in): .059, .11 Contact Current Rating (Max) (A): 40
Other	Serviceable : Yes Connector Position Assurance Capable : No
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Keyed Terminal Position Assurance : No Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging)
Packaging Features	Packaging Method : Package Packaging Quantity : 230
Dimensions	Connector Height : 31.25 mm [ 1.23 in ] Product Length : 67.2 mm [ 2.646 in ] Product Width : 25.7 mm [ 1.012 in ]
Body Features	Cable Exit Angle : 180°, 90° Primary Product Color : Black Connector & Keying Code : A
Housing Features	Housing Material : PBT GF30 Centerline (Pitch) (mm): 4, 6 Centerline (Pitch) (in): .157, .236
Electrical Characteristics	Operating Voltage (VDC): 60 Nominal Voltage Architecture (V): 12, 24, 42, 60
Industry Standards	UL Flammability Rating : UL 94V-0 IP Rating : IP67
Usage Conditions	Operating Temperature (Max) : 140 °C [ 284 °F ] Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Operation/Application	Circuit Application : Power

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

1-1564337-1

16 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm / 6 mm [.157 in / .236 in] Centerline, Heavy Duty Sealed Connector Series

Additional information

Number of Positions : 16

Number of Rows : 2

Connector Shape : Rectangular

Mixed & Hybrid Connector : Yes

Connector & Housing Type : Housing for Female Terminals

Connector System : Wire-to-Wire

Sealable : Yes

Primary Locking Feature : On the Terminal

Connector & Contact Terminates To : Wire & Cable

Contact Type : Receptacle

Contact Size : 1.5K, 2.8mm

Mating Tab Width (mm): 1.5, 2.8

Mating Tab Width (in): .059, .11

Contact Current Rating (Max) (A): 40

Serviceable : Yes

Connector Position Assurance Capable : No

Mating Alignment : With

Mating Alignment Type : Keyed

Terminal Position Assurance : No

Strain Relief : Without

Connector Mounting Type : Cable Mount (Free-Hanging)

Packaging Method : Package

Packaging Quantity : 230

Connector Height : 31.25 mm [ 1.23 in ]

Product Length : 67.2 mm [ 2.646 in ]

Product Width : 25.7 mm [ 1.012 in ]

Cable Exit Angle : 180°, 90°

Primary Product Color : Black

Connector & Keying Code : A

Housing Material : PBT GF30

Centerline (Pitch) (mm): 4, 6

Centerline (Pitch) (in): .157, .236

Operating Voltage (VDC): 60

Nominal Voltage Architecture (V): 12, 24, 42, 60

UL Flammability Rating : UL 94V-0

IP Rating : IP67

Operating Temperature (Max) : 140 °C [ 284 °F ]

Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

Circuit Application : Power
