Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

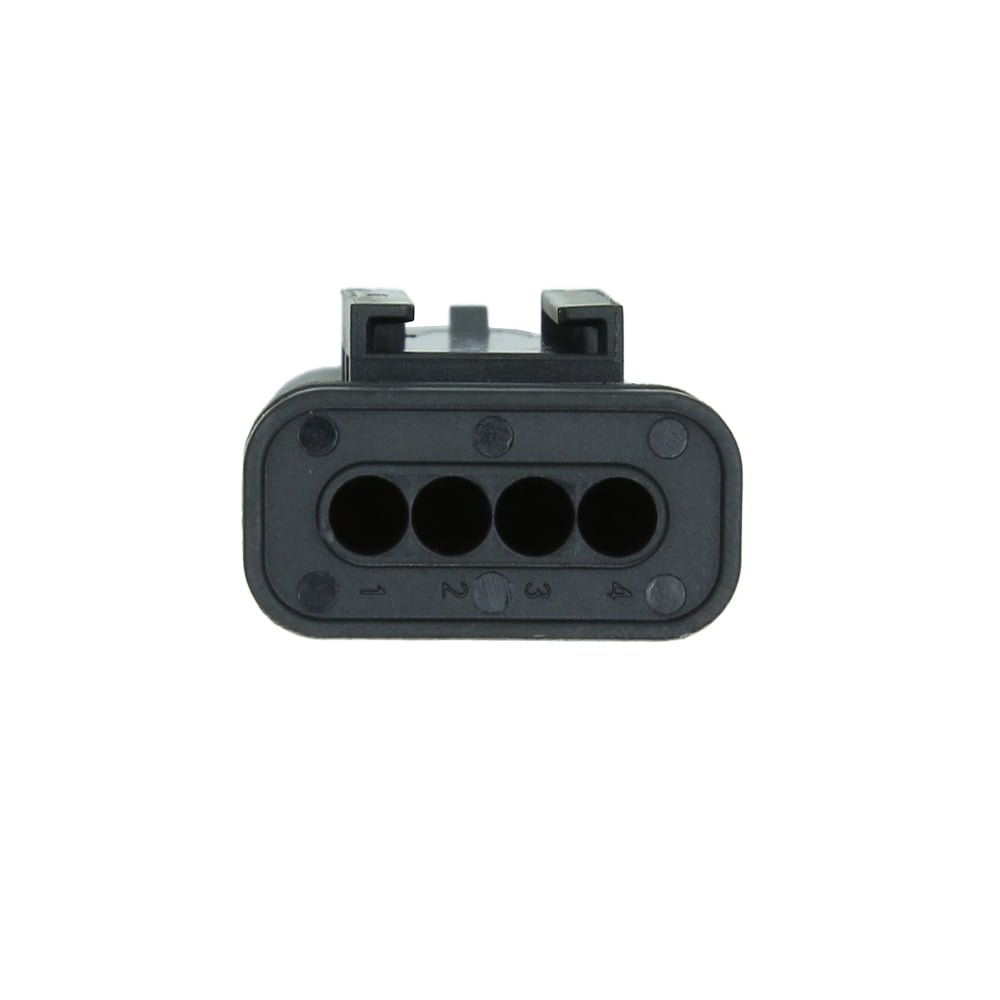

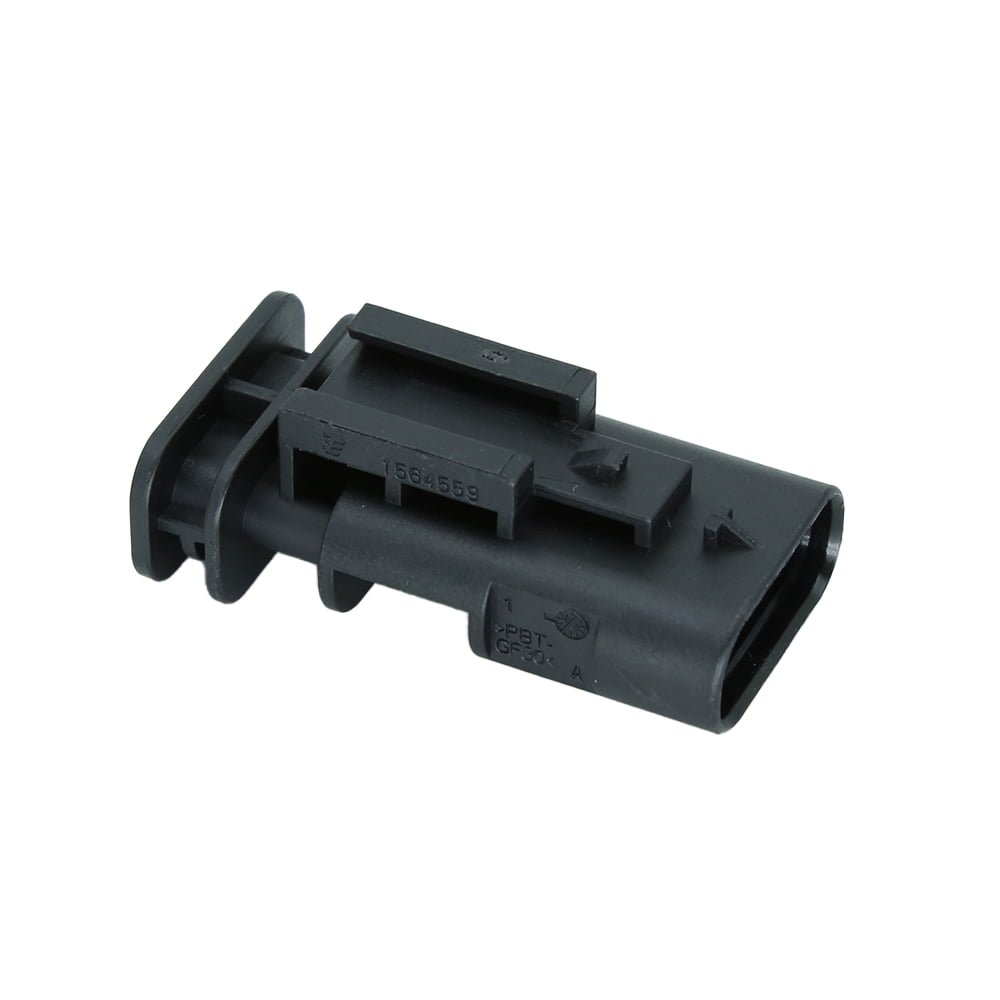

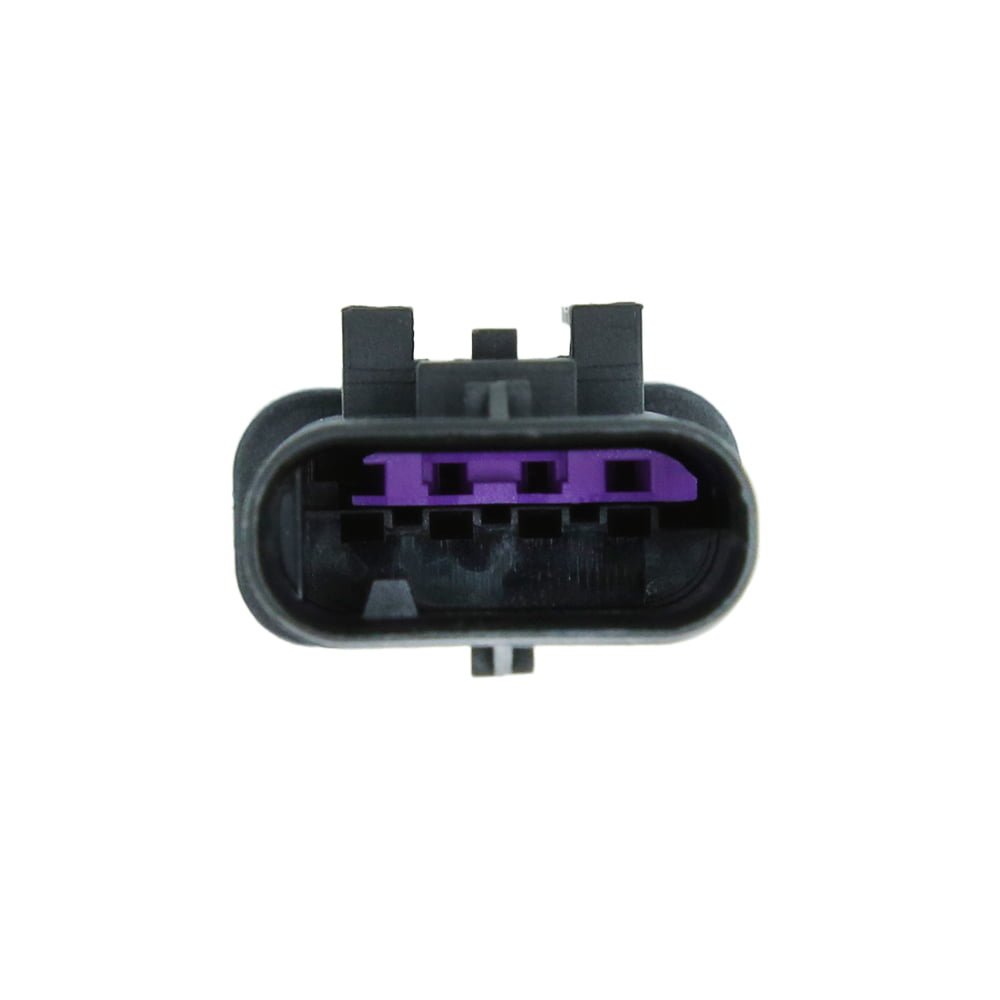

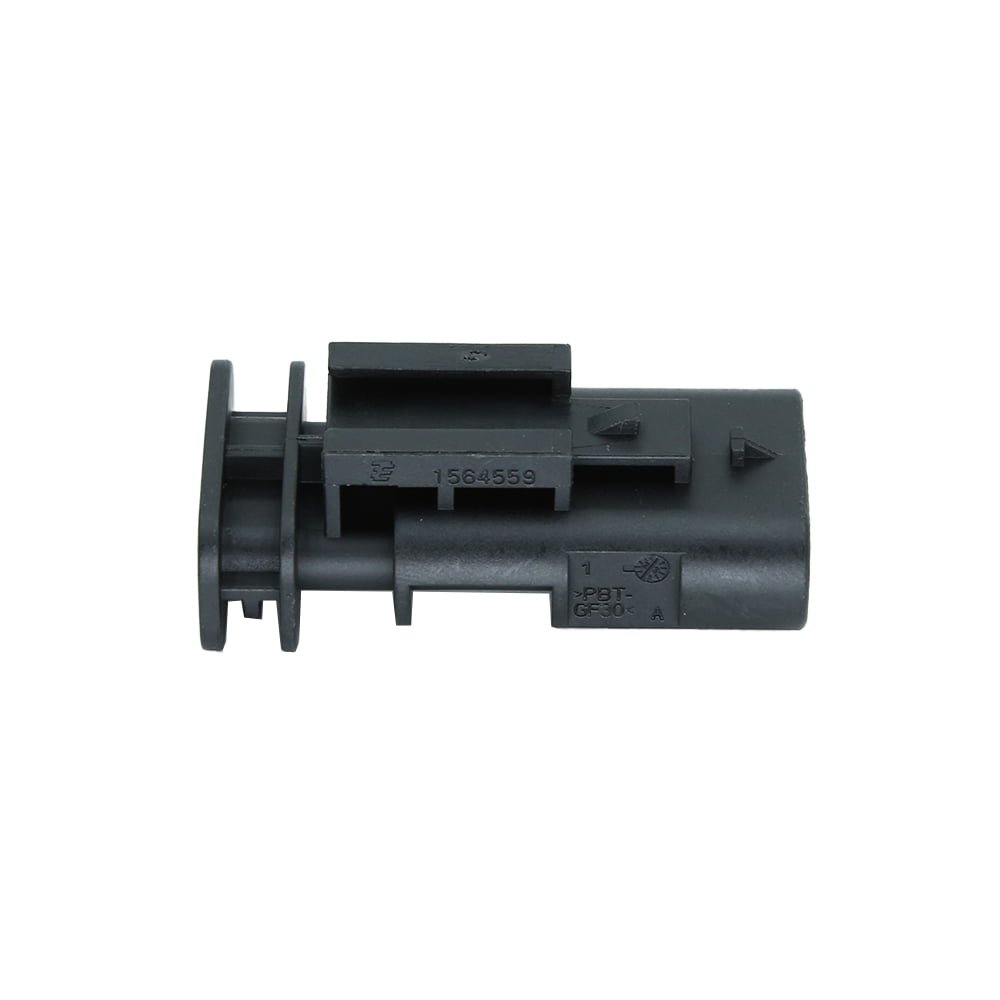

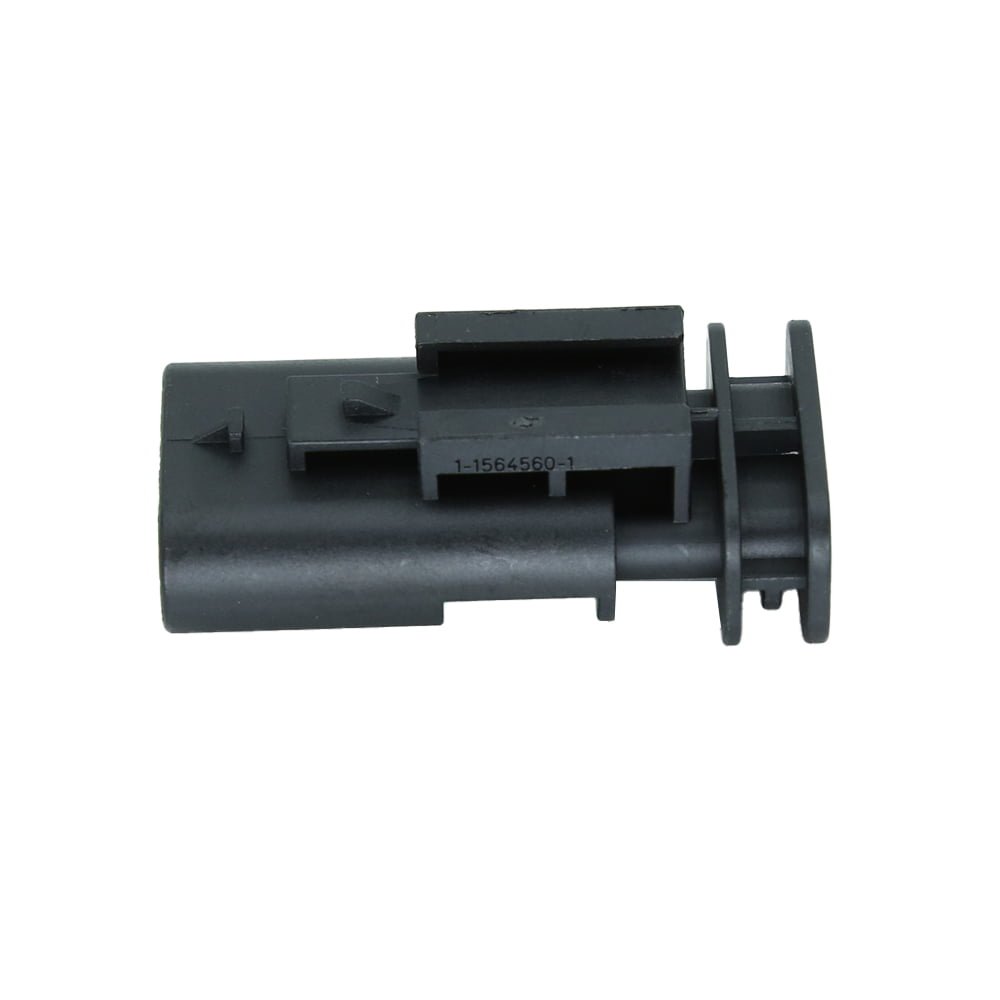

| Product Type Features |
-
Connector Shape : Rectangular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Housing for Male Terminals
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : On the Terminal
-
Mixed & Hybrid Connector : No
|
| Configuration Features |
-
Number of Positions : 4
-
Number of Rows : 1
|
| Electrical Characteristics |
-
Operating Voltage (VDC): 14
-
Nominal Voltage Architecture (V): 12
|
| Body Features |
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
-
Connector & Keying Code : A
|
| Contact Features |
-
Contact Type : Tab
-
Contact Size : 1.2mm
-
Contact Current Rating (Max) (A): 25
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Strain Relief : Without
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : Yes
|
| Housing Features |
-
Housing Material : PBT GF
-
Centerline (Pitch) : 4 mm [ .157 in ]
|
| Dimensions |
-
Product Length : 24.2 mm [ .953 in ]
-
Product Width : 44 mm [ 1.732 in ]
-
Connector Height : 16.3 mm [ .642 in ]
|
| Usage Conditions |
-
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
-
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
| Packaging Features |
-
Packaging Method : Box
-
Packaging Quantity : 1000
|
| Other |
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
|
