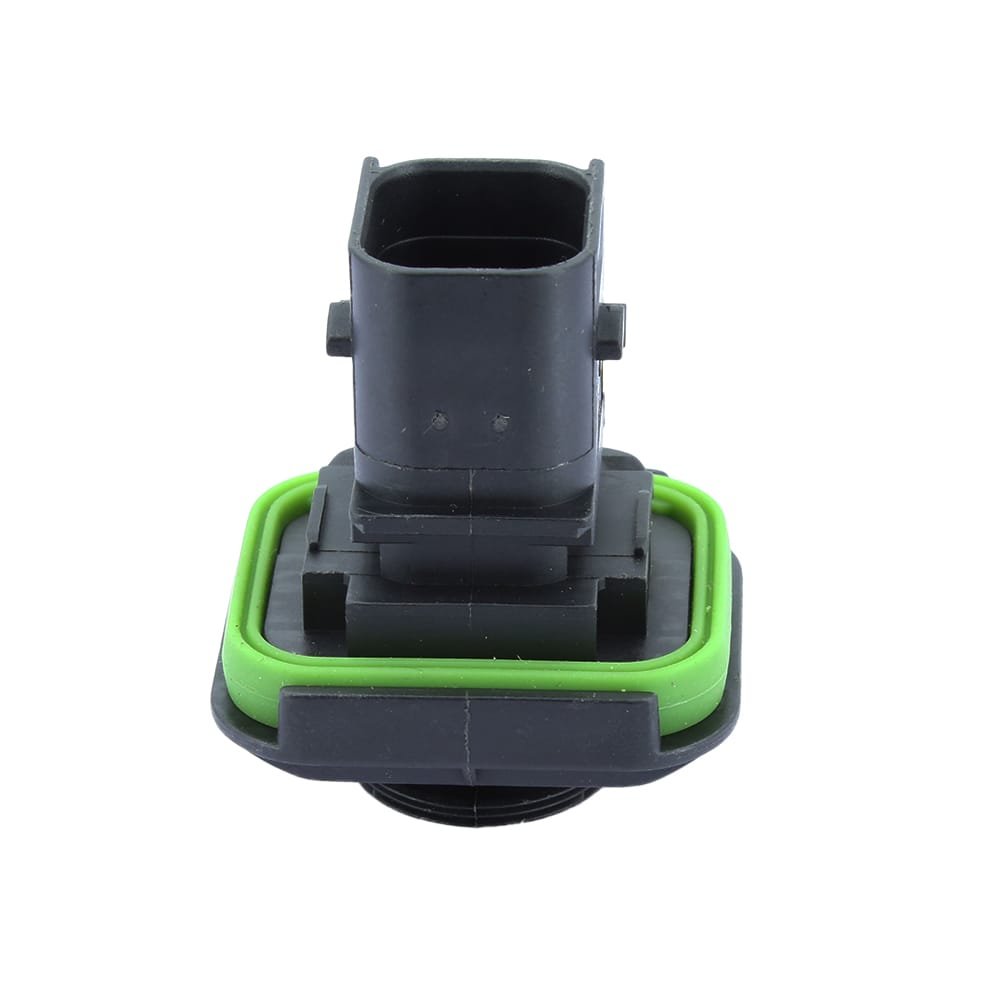

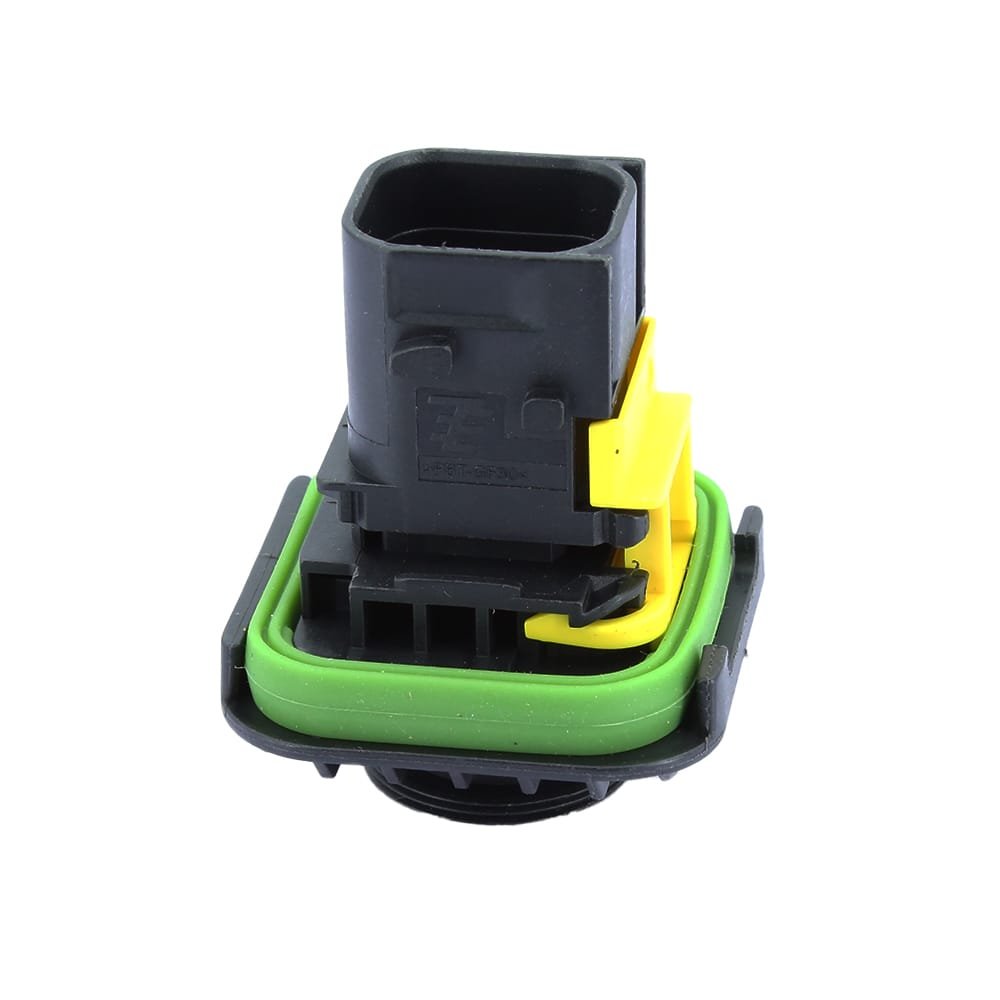

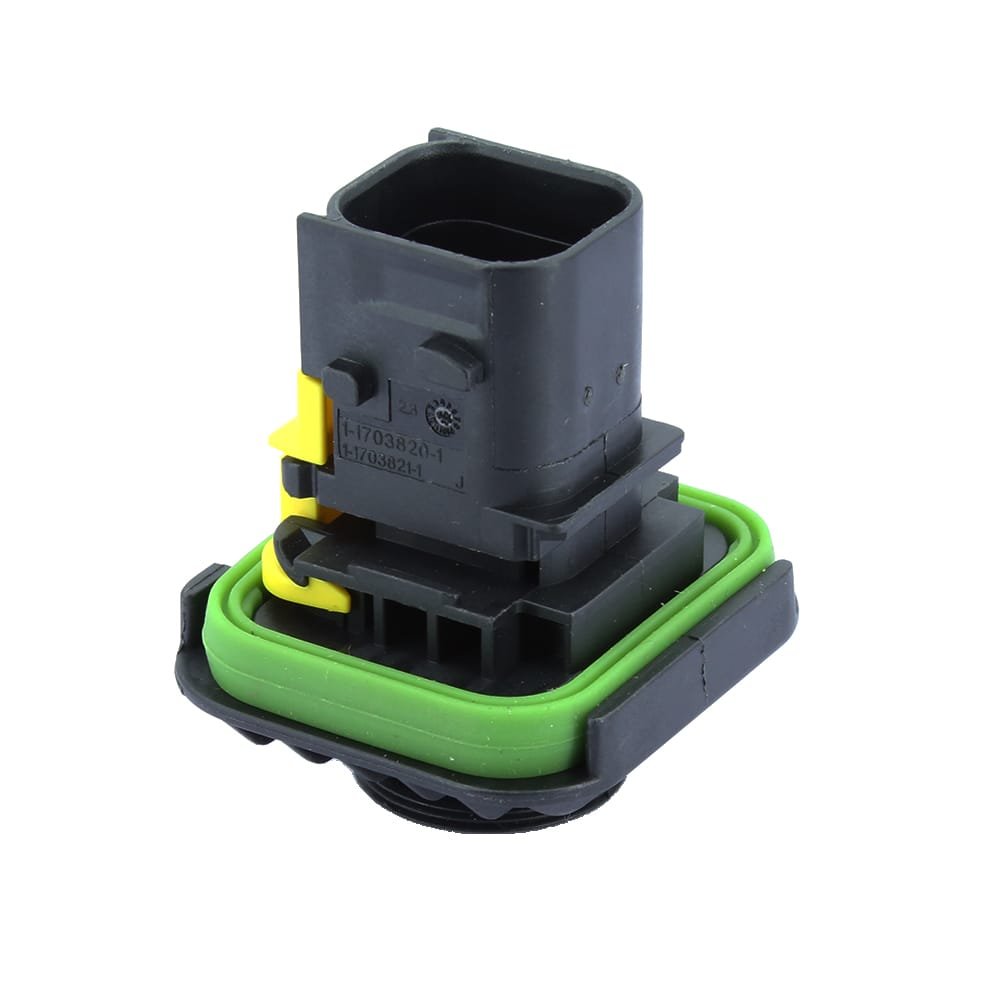

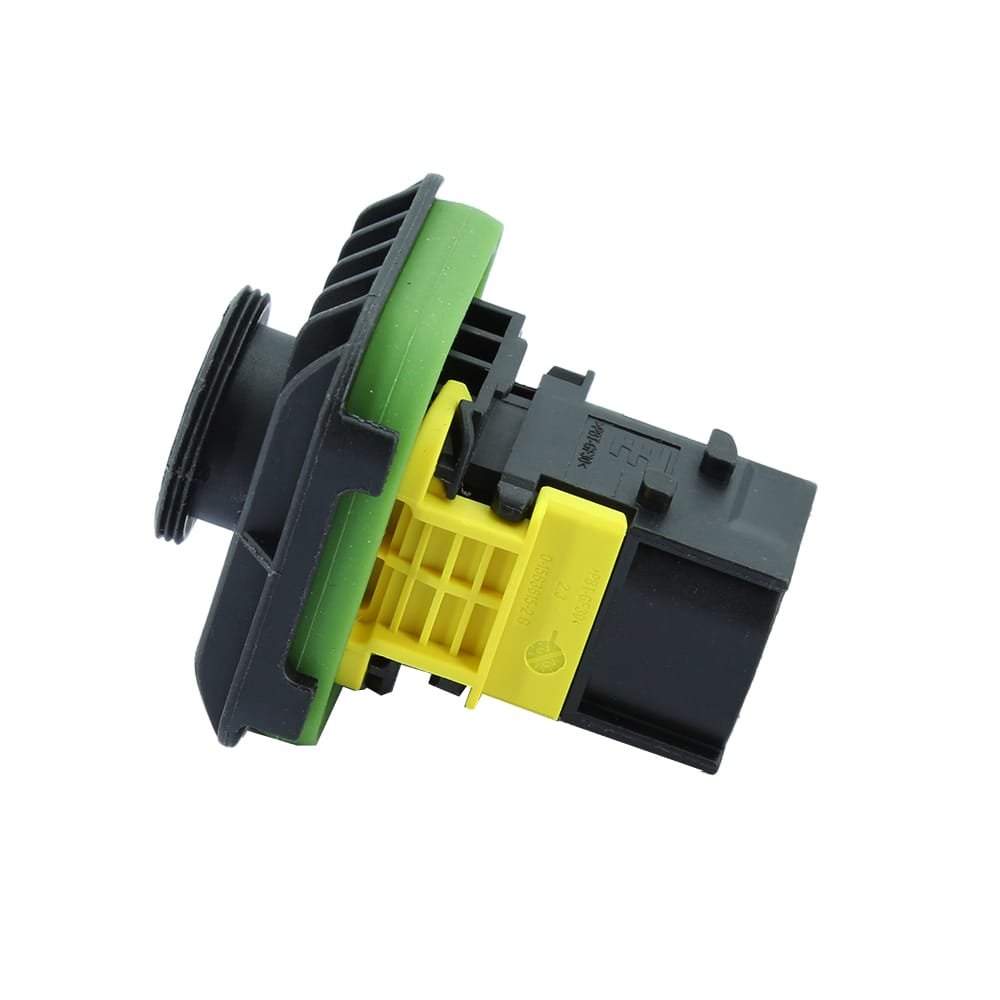

| Configuration Features |
-
Number of Positions : 6
-
Number of Rows : 2
|
| Product Type Features |
-
Connector Shape : Rectangular
-
Mixed & Hybrid Connector : No
-
Connector & Housing Type : Housing for Male Terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Primary Locking Feature : On the Terminal
-
Connector & Contact Terminates To : Wire & Cable
|
| Contact Features |
-
Contact Type : Tab
-
Contact Size : 1.6mm
-
Mating Tab Width : 1.6 mm [ .063 in ]
-
Contact Current Rating (Max) (A): 10
|
| Other |
-
Serviceable : Yes
-
Connector Position Assurance Capable : No
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Terminal Position Assurance : No
-
Strain Relief : Without
-
Connector Mounting Type : Cable Mount (Free-Hanging)
|
| Packaging Features |
-
Packaging Method : Carton
-
Packaging Quantity : 320
|
| Dimensions |
-
Connector Height : 39.8 mm [ 1.567 in ]
-
Product Length : 37.5 mm [ 1.476 in ]
-
Product Width : 47.05 mm [ 1.852 in ]
-
Row-to-Row Spacing (mm): 5.5, 6.3
-
Row-to-Row Spacing (in): .217, .248
|
| Body Features |
-
Cable Exit Angle : 180°, 90°
-
Primary Product Color : Black
-
Connector & Keying Code : A
|
| Housing Features |
-
Housing Material : PBT GF30
-
Centerline (Pitch) : 4 mm [ .157 in ]
|
| Electrical Characteristics |
-
Operating Voltage (VDC): 60
-
Nominal Voltage Architecture (V): 12, 24, 42, 60
|
| Usage Conditions |
-
Operating Temperature (Max) : 140 °C [ 284 °F ]
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
| Industry Standards |
-
UL Flammability Rating : UL 94V-0
-
IP Rating : IP67
|
