Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

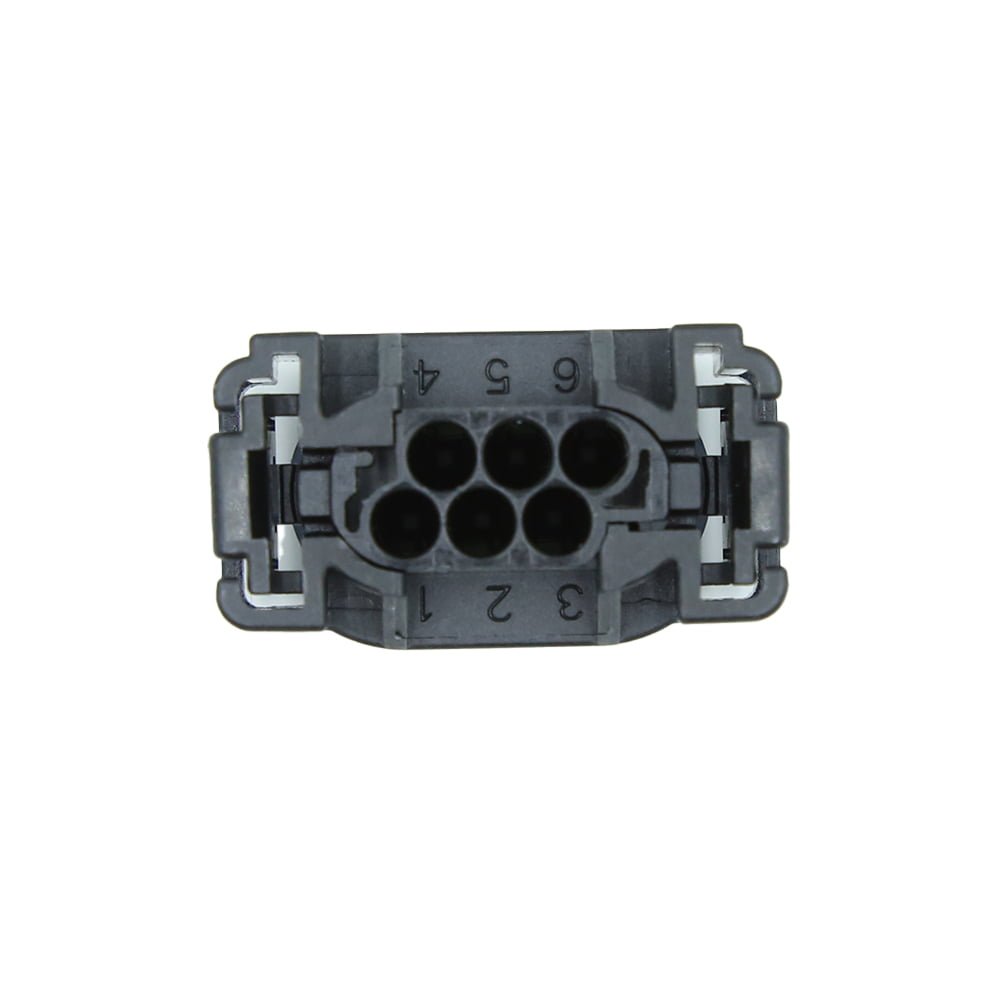

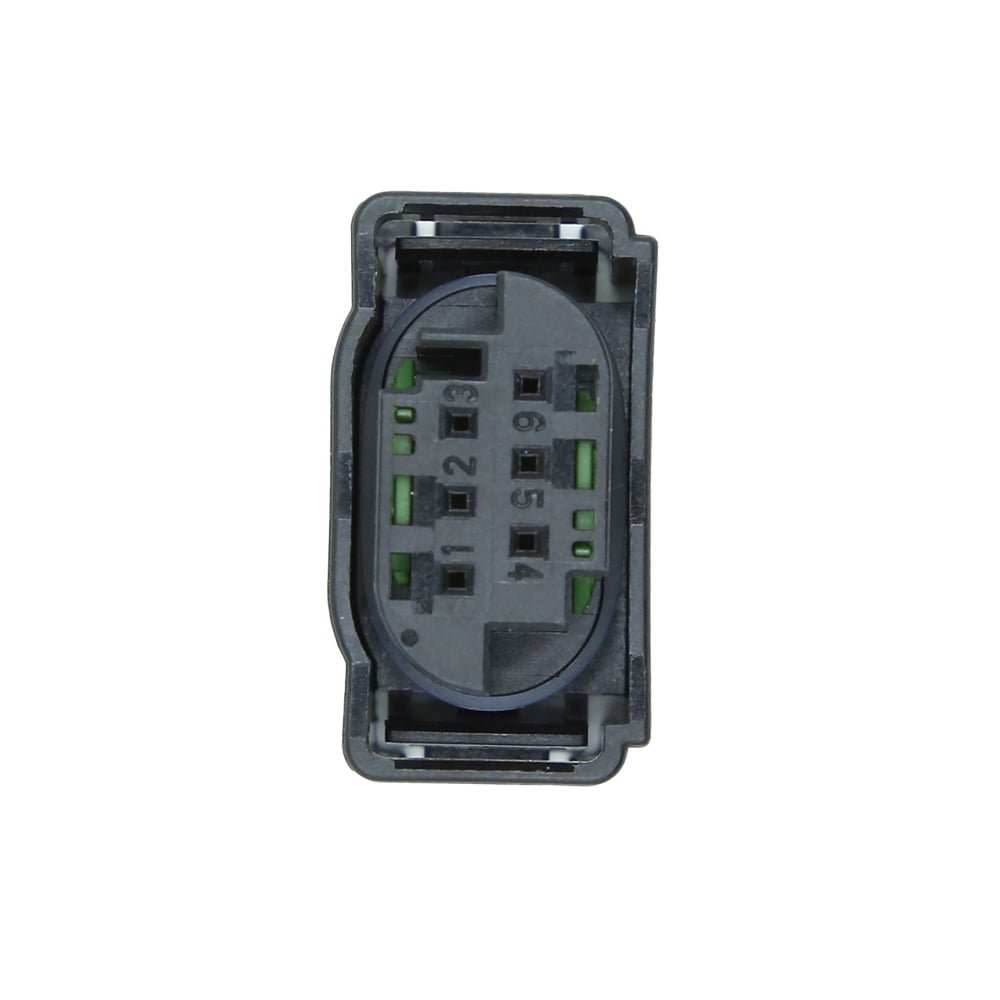

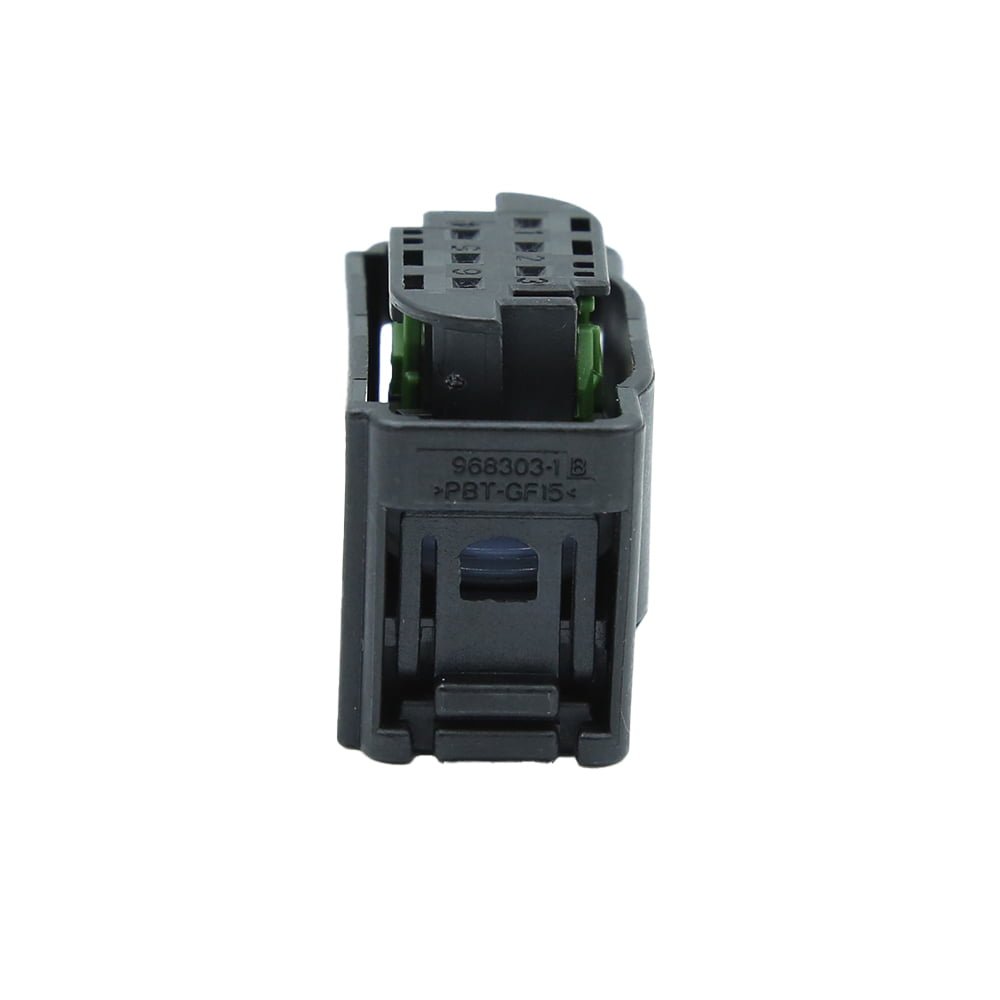

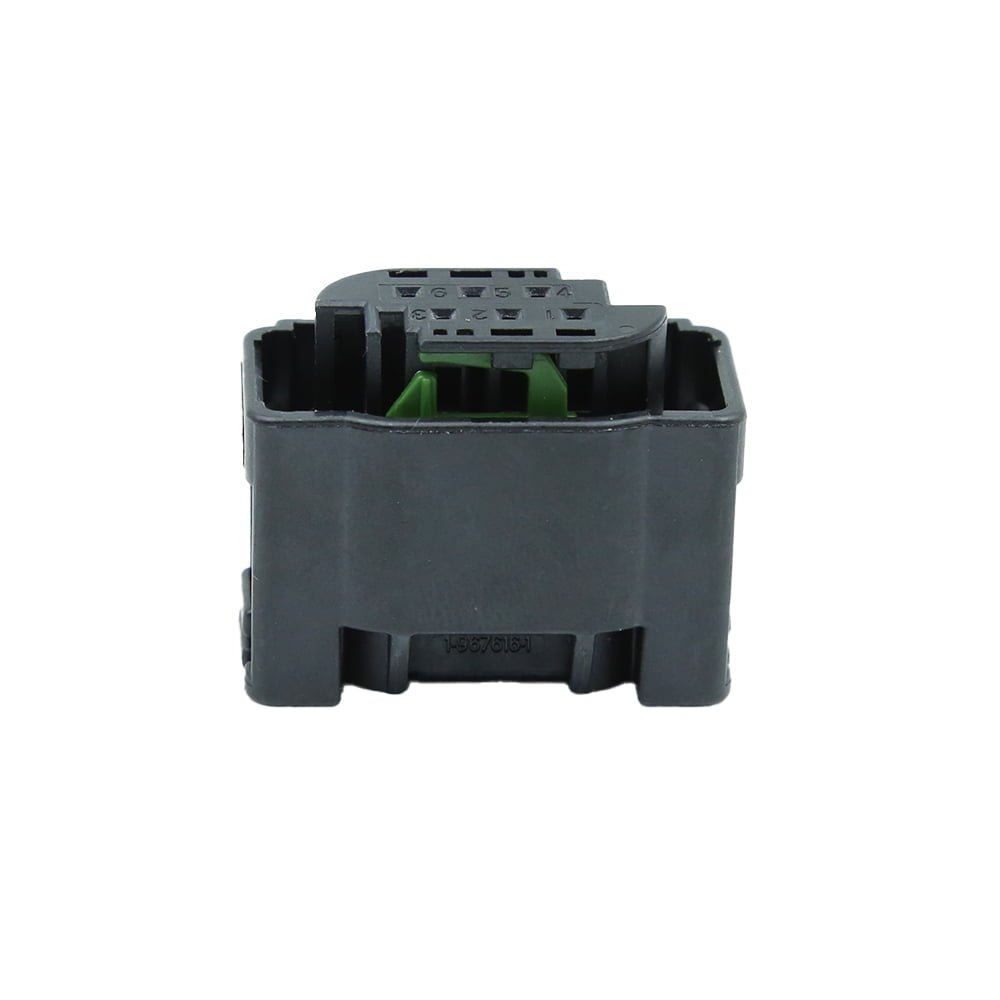

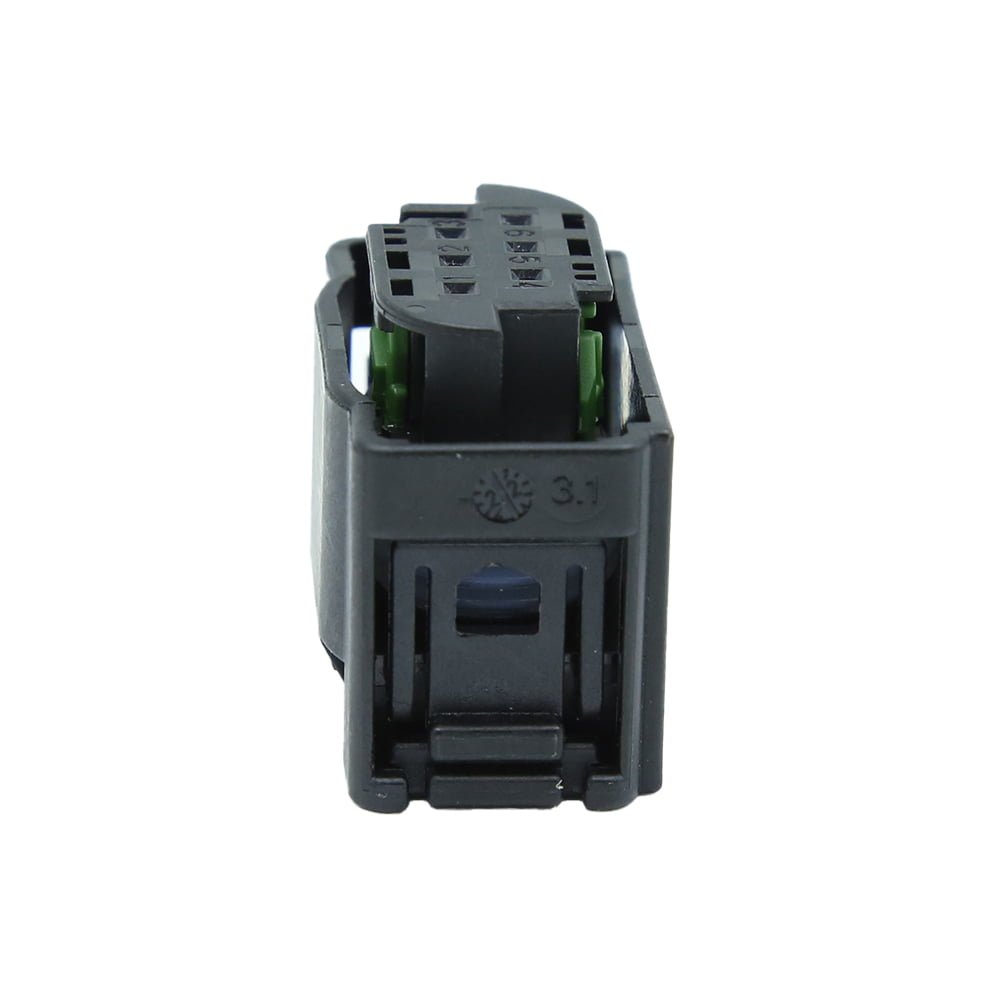

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : On the TerminalMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 6Number of Rows : 2
|
|---|
| Electrical Characteristics | Nominal Voltage Architecture (V): 12
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : BlackConnector & Keying Code : A
|
|---|
| Contact Features | Contact Type : SocketContact Size : .63mmMating Tab Width : .63 mm [ .025 in ]Contact Current Rating (Max) (A): 7.5
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PBT GFCenterline (Pitch) : 4 mm [ .157 in ]
|
|---|
| Dimensions | Row-to-Row Spacing : 5.9 mm [ .232 in ]Product Length : 24 mm [ .945 in ]Product Width : 17 mm [ .669 in ]Connector Height : 30.4 mm [ 1.197 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 120 °C [ 248 °F ]Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
|
|---|
| Operation/Application | Circuit Application : Signal
|
|---|
| Industry Standards | Degree of Protection : IPX9K
|
|---|
| Packaging Features | |
|---|
| Other | Connector Position Assurance Capable : NoServiceable : No
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
