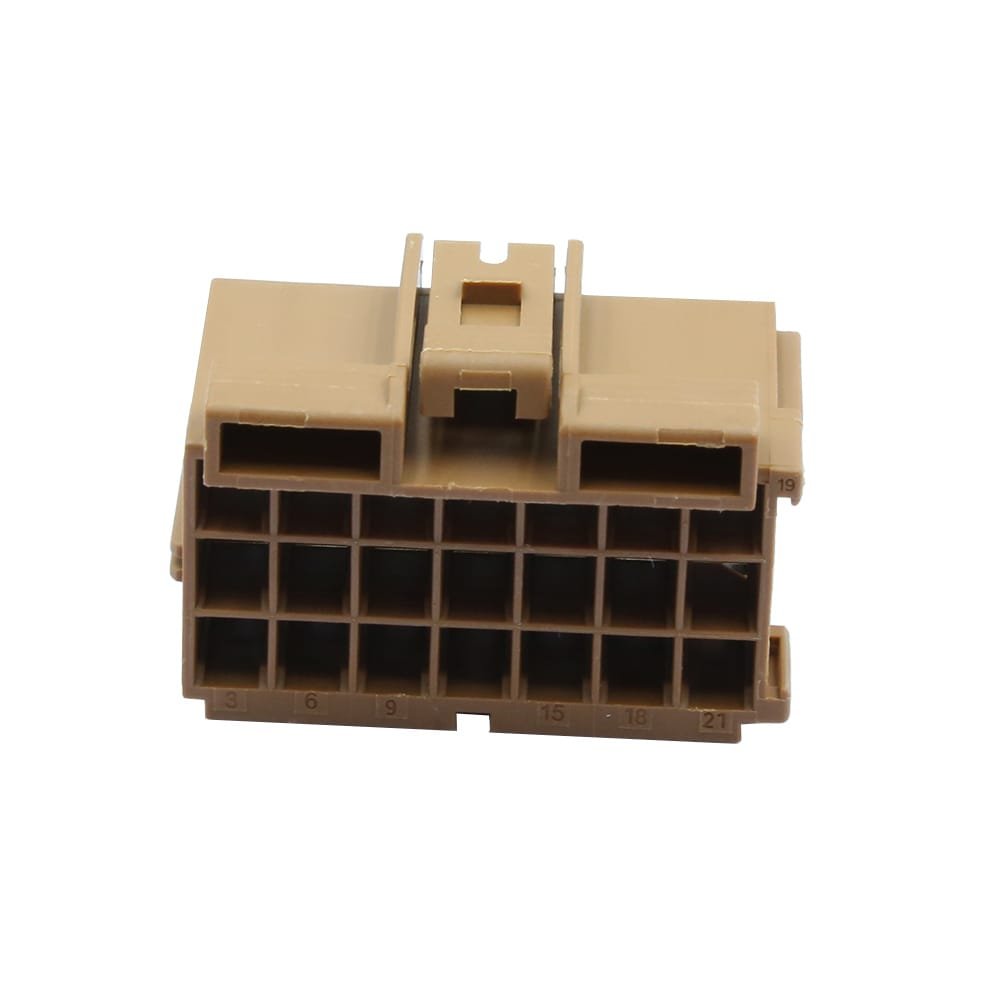

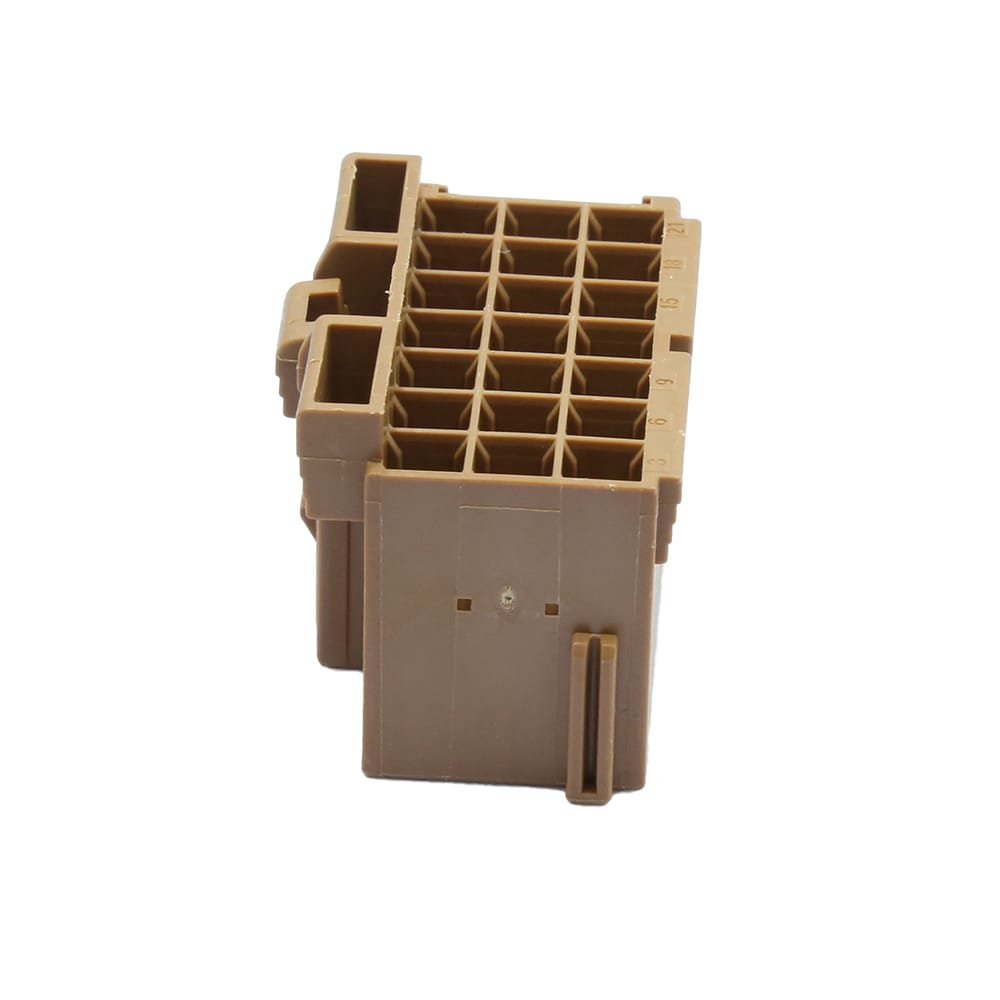

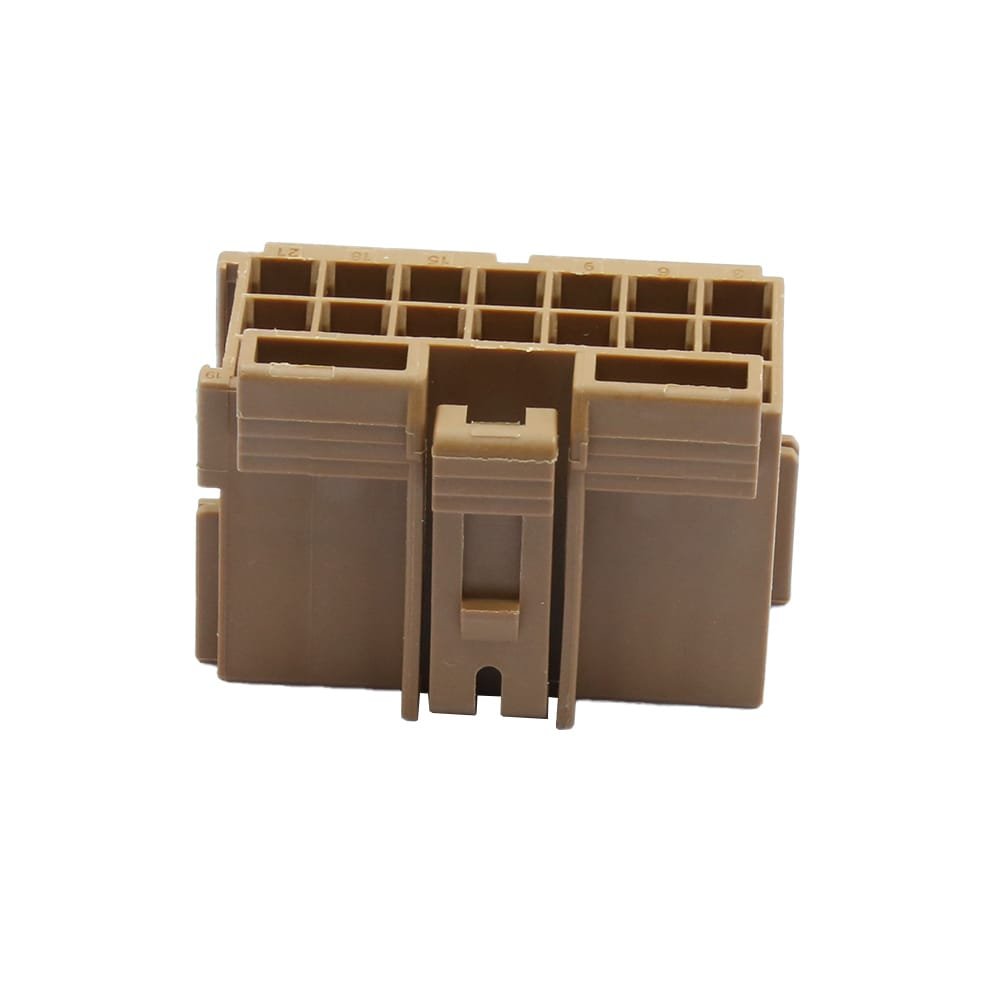

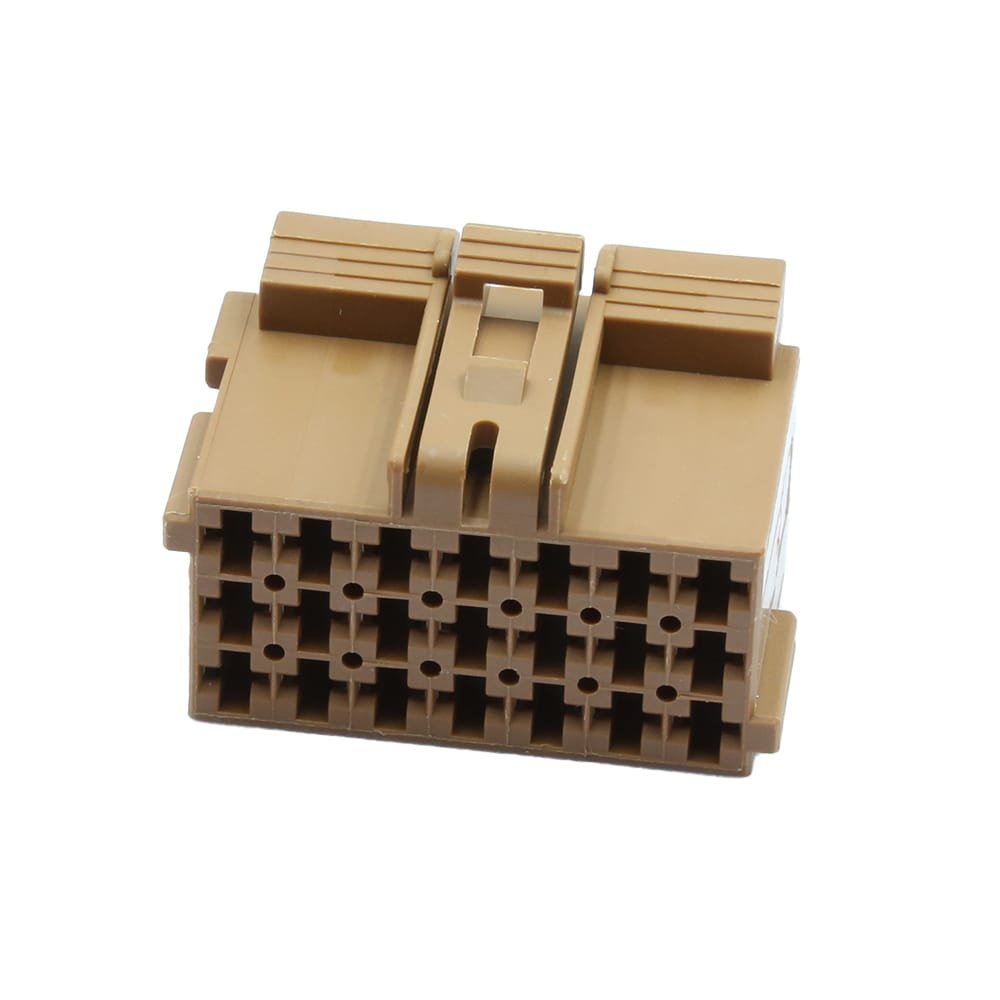

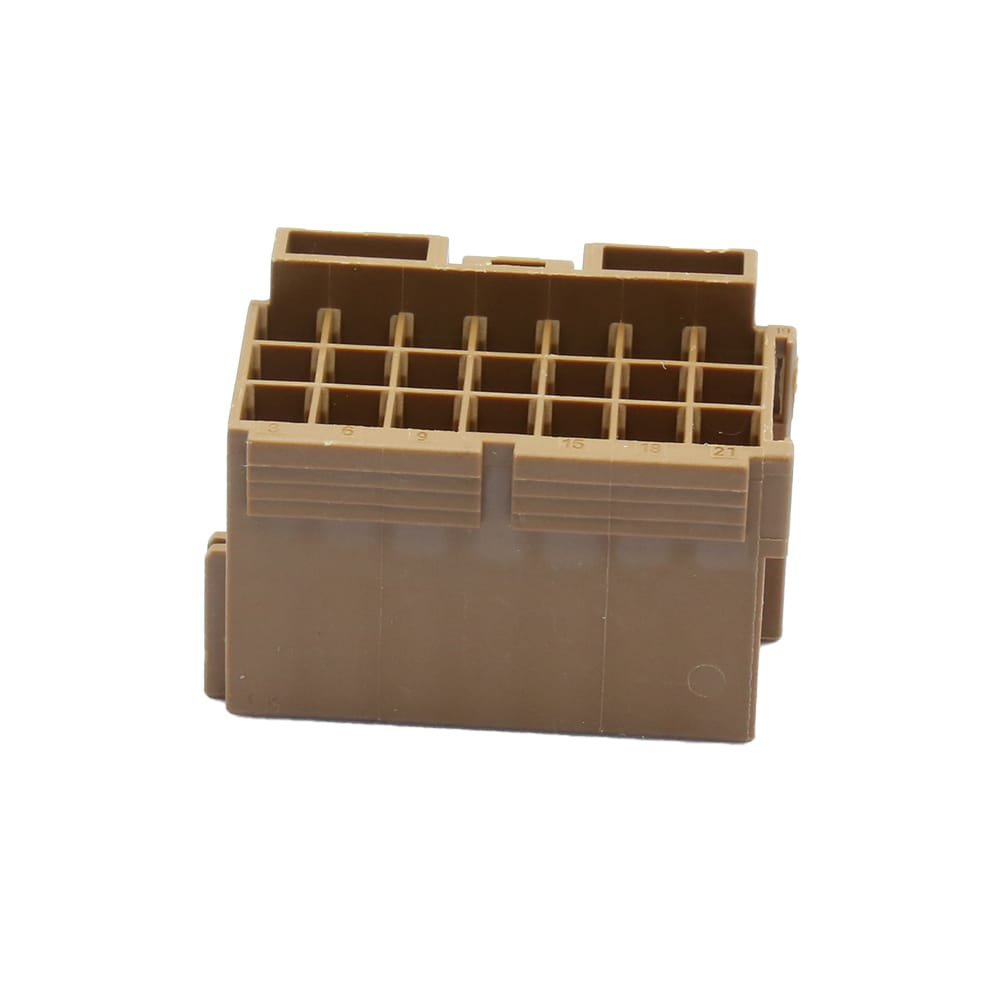

21 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 5 mm [.197 in] Centerline, Brown, Power, Junior Power Timer

Additional information

Number of Positions	21
Connector & Housing Type	Housing for Female Terminals
Mating Tab Width	2.8 mm [ .11 in ]
Connector System	Wire-to-Board, Wire-to-Wire
Centerline (Pitch)	5 mm [ .197 in ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features	Number of Positions : 21 Number of Rows : 3
Product Type Features	Connector Shape : Rectangular Mixed & Hybrid Connector : No Connector & Housing Type : Housing for Female Terminals Connector System : Wire-to-Board, Wire-to-Wire Sealable : No Primary Locking Feature : On the Terminal
Contact Features	Contact Type : Receptacle Contact Size : 2.8mm Mating Tab Width : 2.8 mm [ .11 in ] Contact Current Rating (Max) (A): 30
Other	Serviceable : No Connector Position Assurance Capable : No
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Keyed Terminal Position Assurance : Yes Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging)
Packaging Features	Packaging Method : Carton
Dimensions	Connector Height : 26.5 mm [ 1.043 in ] Product Length : 36.2 mm [ 1.425 in ]
Usage Conditions	Operating Temperature (Max) : 100 °C [ 212 °F ] Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]
Body Features	Primary Product Color : Brown Connector & Keying Code : A
Housing Features	Housing Material : PBT GF Centerline (Pitch) : 5 mm [ .197 in ]
Electrical Characteristics	Nominal Voltage Architecture (V): 28
Operation/Application	Circuit Application : Power
