1-967627-6

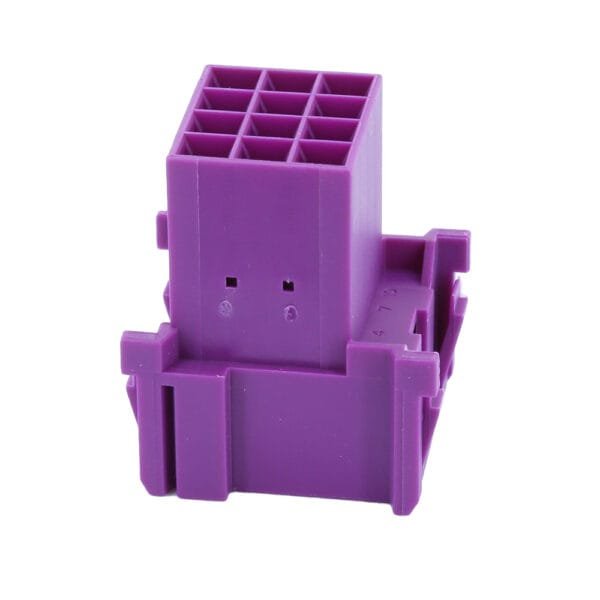

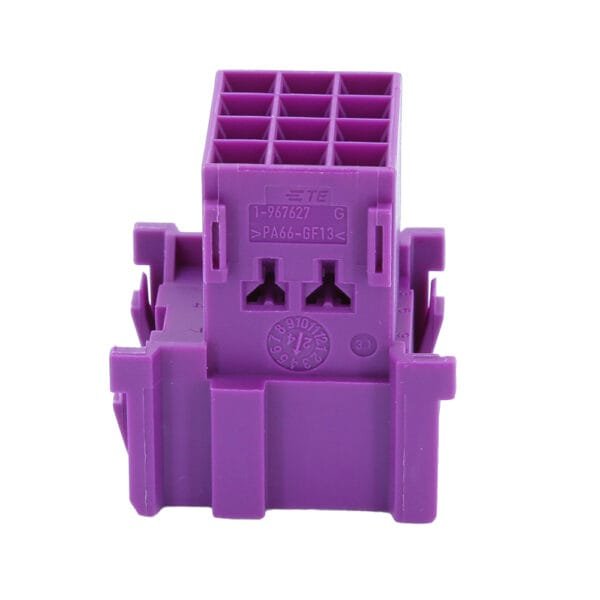

12 Position Housing, Housing for Male Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Purple, Wire & Cable, Power, Cable Mount (Free-Hanging)

Additional information

Number of Positions	12
Connector & Housing Type	Housing for Male Terminals
Mating Tab Width	2.8 mm [ .11 in ]
Connector System	Wire-to-Wire
Centerline (Pitch)	5 mm [ .197 in ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features	Number of Positions : 12 Number of Rows : 3
Product Type Features	Mixed & Hybrid Connector : No Connector Shape : Rectangular Connector & Housing Type : Housing for Male Terminals Connector System : Wire-to-Wire Sealable : No Primary Locking Feature : Integrated in Housing Connector & Contact Terminates To : Wire & Cable
Contact Features	Contact Type : Tab Contact Size : 2.8mm Mating Tab Width : 2.8 mm [ .11 in ]
Other	Serviceable : No Connector Position Assurance Capable : No
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Keyed Terminal Position Assurance : No Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging)
Packaging Features	Packaging Method : Bag
Dimensions	Connector Height : 30.6 mm [ 1.205 in ] Product Length : 27.5 mm [ 1.083 in ] Product Width : 35.45 mm [ 1.396 in ]
Body Features	Cable Exit Angle : 180° Primary Product Color : Purple Connector & Keying Code : A
Housing Features	Housing Material : PA GF Centerline (Pitch) : 5 mm [ .197 in ]
Electrical Characteristics	Operating Voltage (VDC): 28 Nominal Voltage Architecture (V): 12, 24
Usage Conditions	Operating Temperature (Max) : 120 °C [ 248 °F ] Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Operation/Application	Circuit Application : Power
