Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

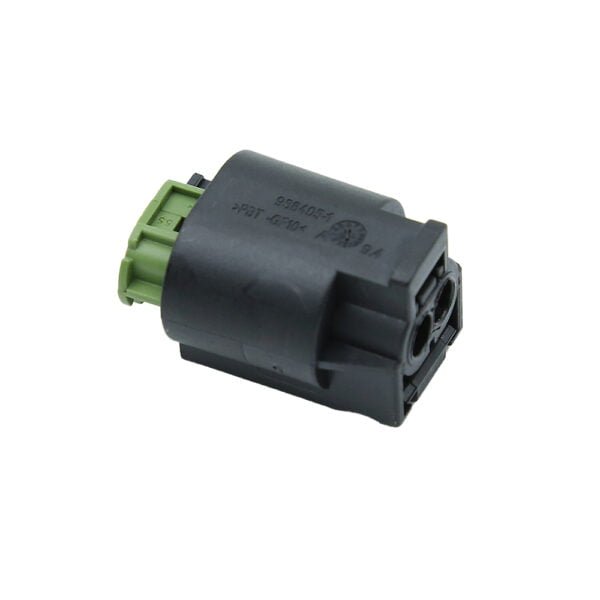

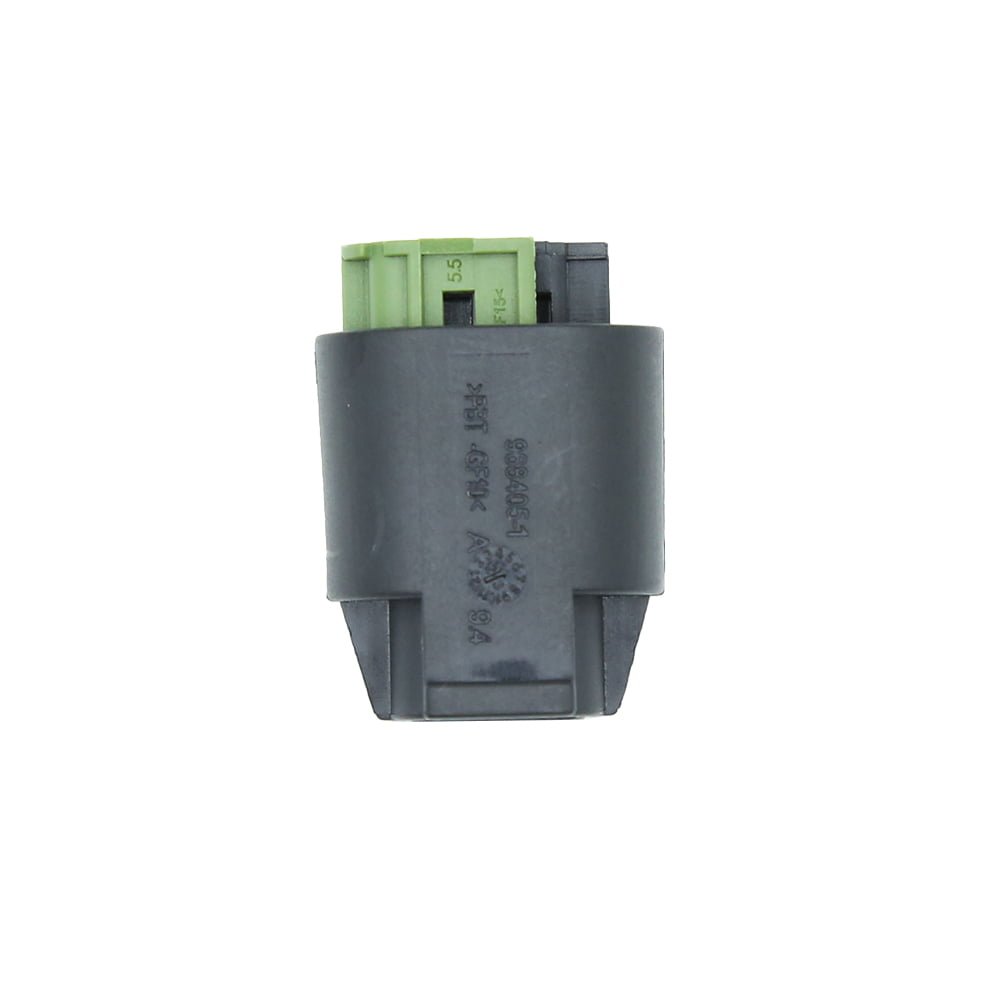

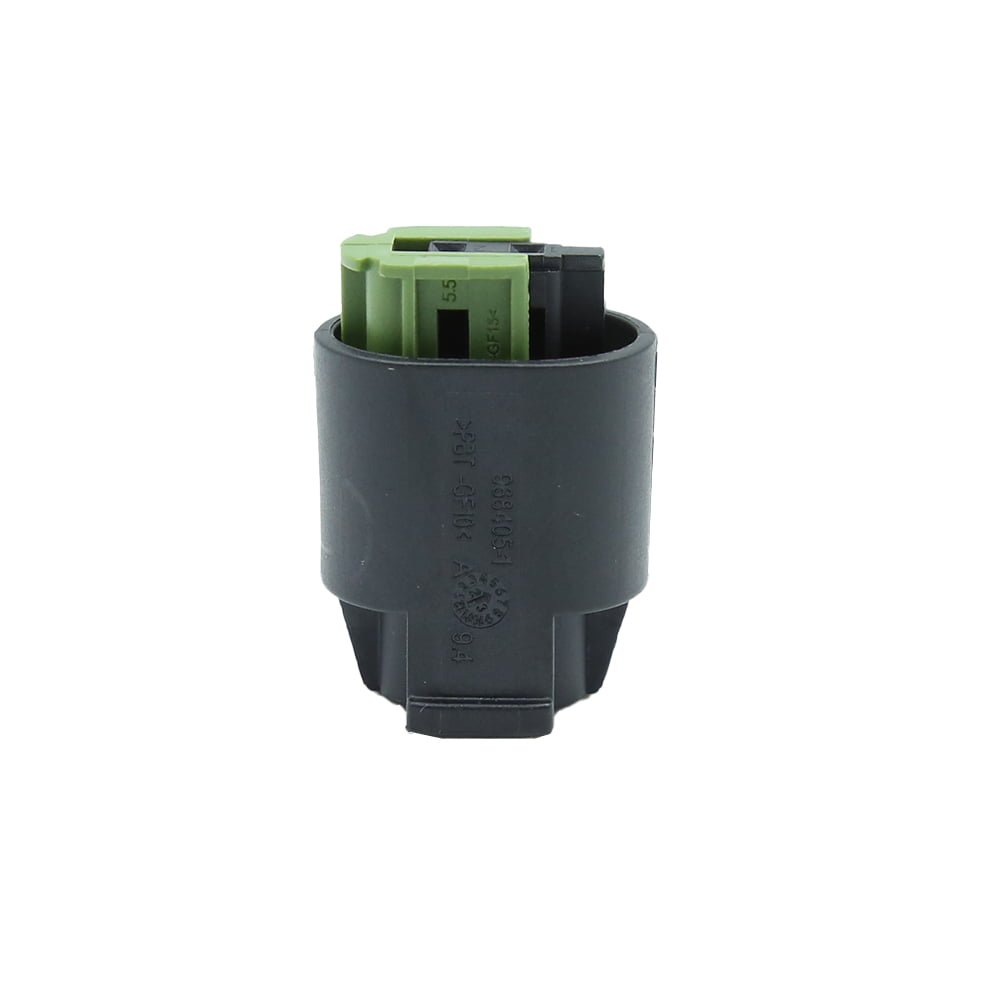

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : On the TerminalMixed & Hybrid Connector : No
|

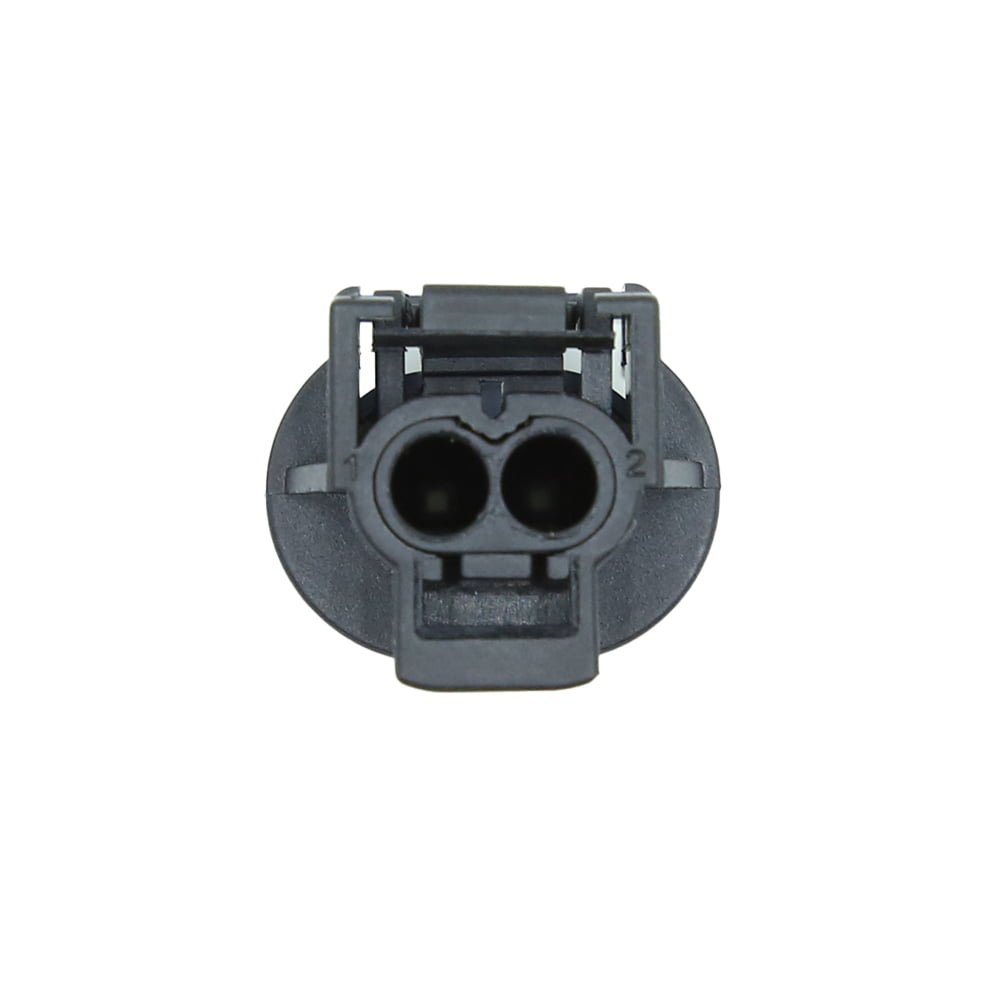

|---|
| Configuration Features | Number of Positions : 2Number of Rows : 1
|
|---|
| Electrical Characteristics | Nominal Voltage Architecture (V): 12, 24, 42, 48
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : BlackConnector & Keying Code : A
|
|---|
| Contact Features | Contact Type : ReceptacleContact Size : .63mmMating Tab Width : .63 mm [ .025 in ]Contact Current Rating (Max) (A): 7.5
|

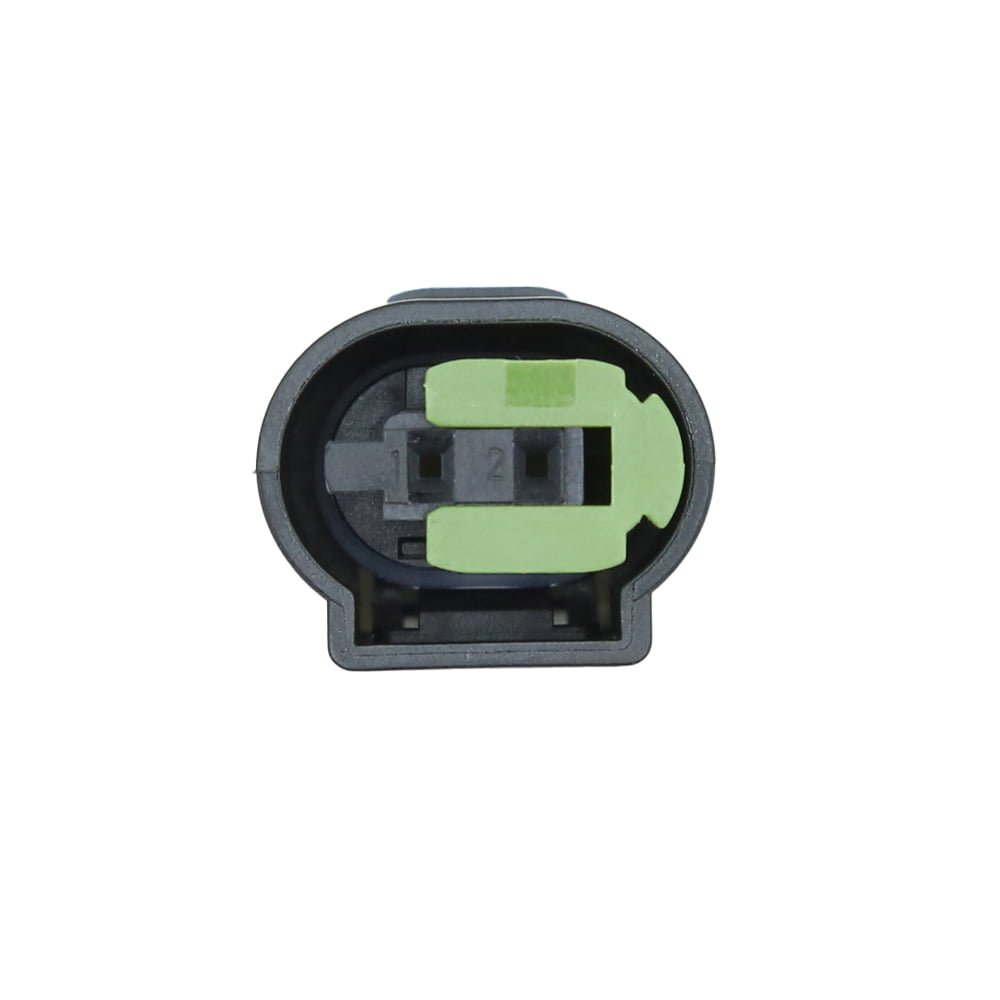

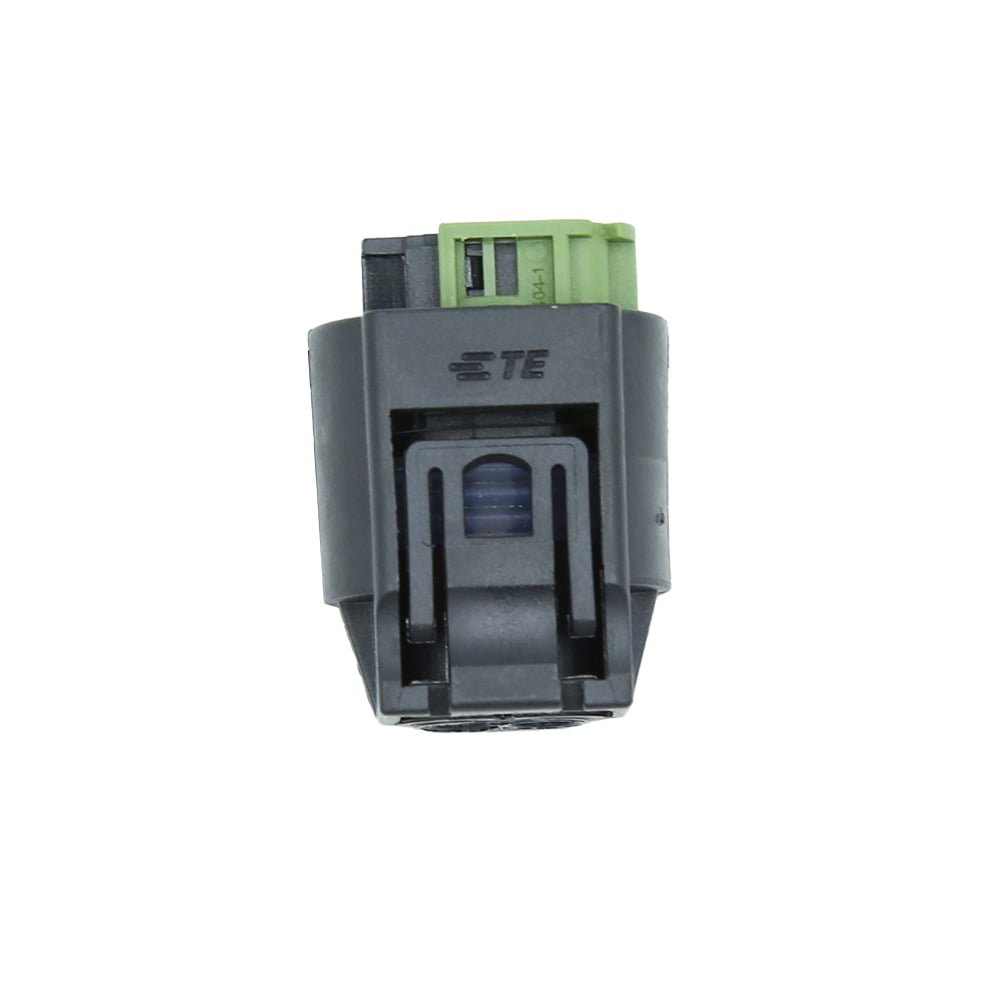

|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PBT GFCenterline (Pitch) : 4 mm [ .157 in ]
|
|---|
| Dimensions | Product Length : 17.4 mm [ .685 in ]Product Width : 24.15 mm [ .951 in ]Connector Height : 15.2 mm [ .598 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 120 °C [ 248 °F ]Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
|
|---|
| Operation/Application | Circuit Application : Signal
|
|---|
| Industry Standards | UL Flammability Rating : UL 94HBDegree of Protection : IP69K
|
|---|
| Packaging Features | |
|---|
| Other | Connector Position Assurance Capable : NoServiceable : No
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
