1011-247-1205

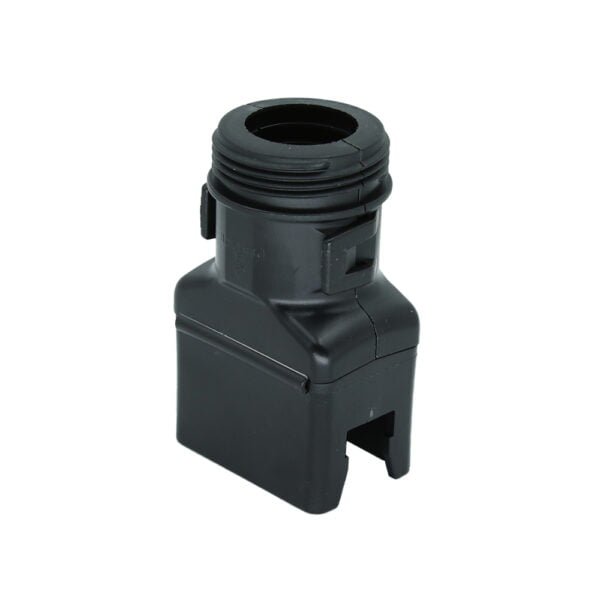

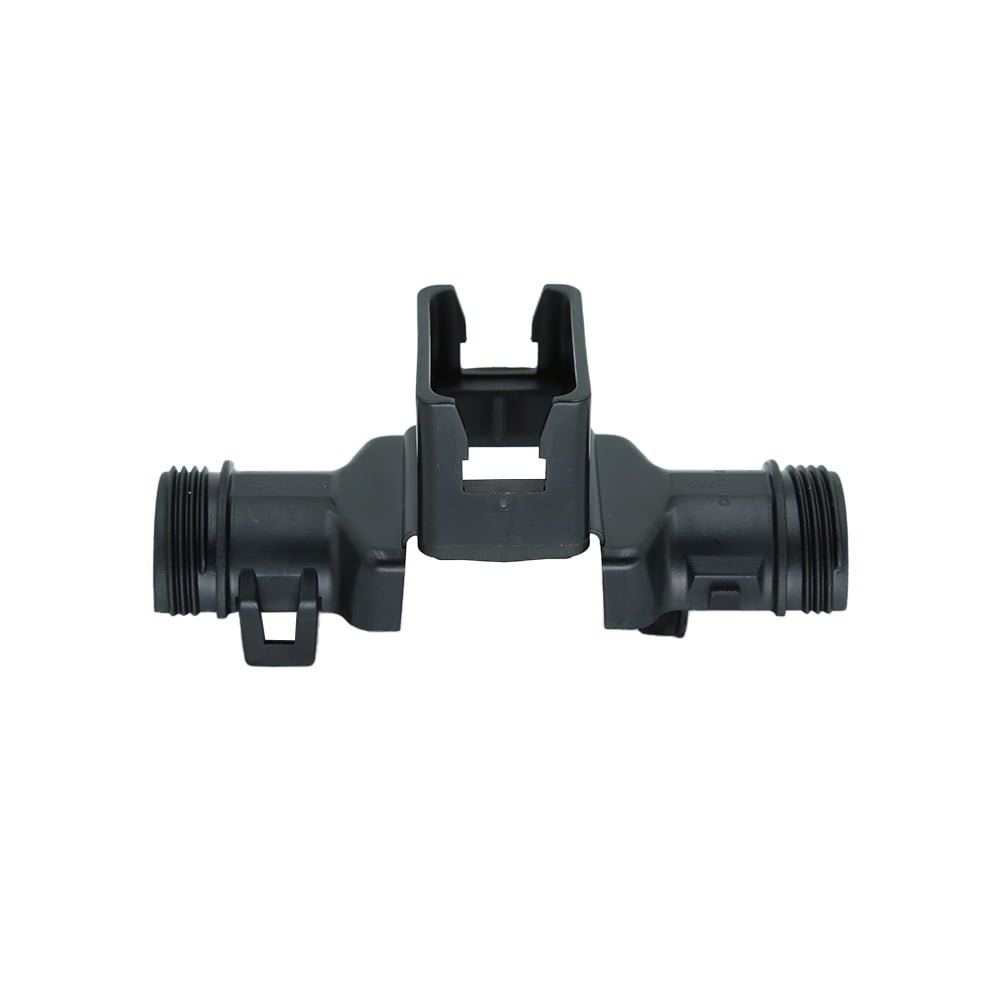

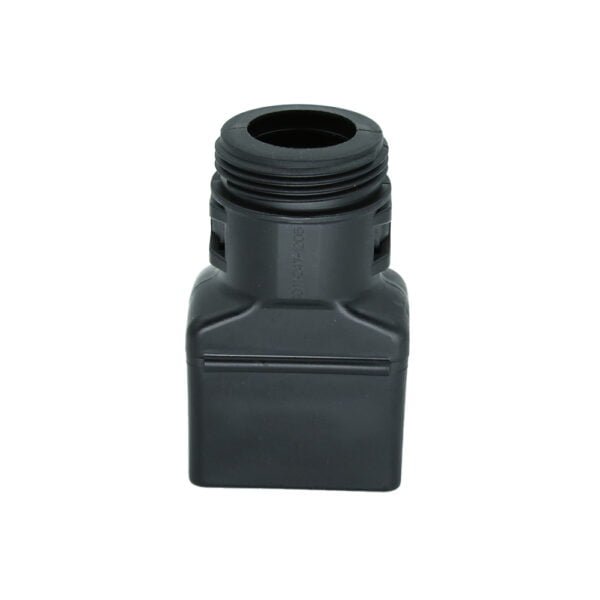

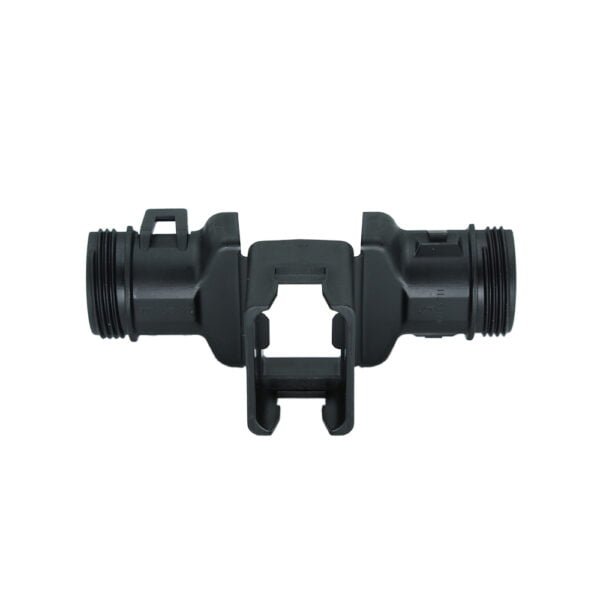

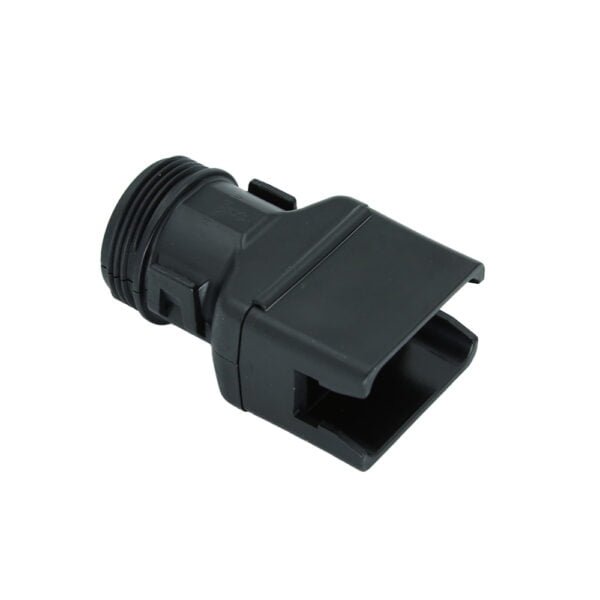

Backshell, PA GF, 12 Position, DEUTSCH DT

Additional information

Connector Backshell Product Type	Backshell
Primary Product Material	PA GF
Number of Positions	12
Sealable	No
Operating Temperature Range	-55 – 125 °C [ -67 – 257 °F ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Connector Backshell Product Type : Backshell Sealable : No
Configuration Features	Number of Positions : 12
Body Features	Primary Product Color : Black Cable Exit Angle : 180° Primary Product Material : PA GF
Dimensions	Compatible Cable Diameter Range : 10 – 17 mm [ .394 – .669 in ]
Usage Conditions	Operating Temperature (Max) : 125 °C [ 257 °F ] Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Industry Standards	UL Flammability Rating : UL 94HB IP Rating : IP6K9K
Packaging Features	Packaging Method : Box Packaging Quantity : 250
Other	Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

1011-247-1205

Backshell, PA GF, 12 Position, DEUTSCH DT

Additional information

Connector Backshell Product Type : Backshell

Sealable : No

Number of Positions : 12

Primary Product Color : Black

Cable Exit Angle : 180°

Primary Product Material : PA GF

Compatible Cable Diameter Range : 10 – 17 mm [ .394 – .669 in ]

Operating Temperature (Max) : 125 °C [ 257 °F ]

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

UL Flammability Rating : UL 94HB

IP Rating : IP6K9K

Packaging Method : Box

Packaging Quantity : 250

Serviceable : Yes
