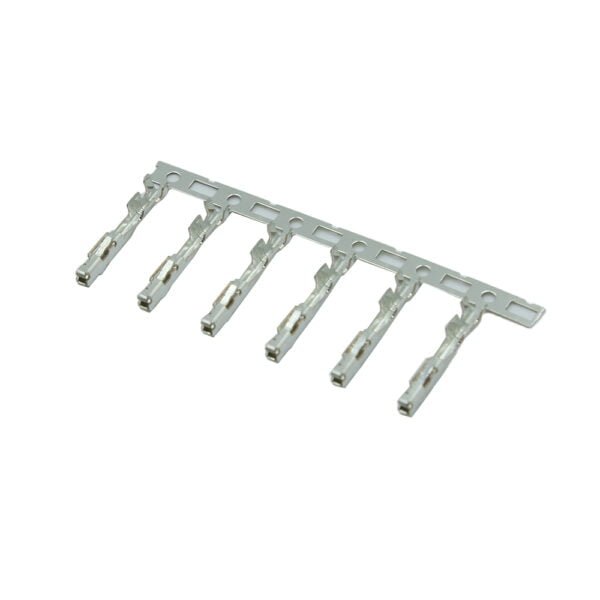

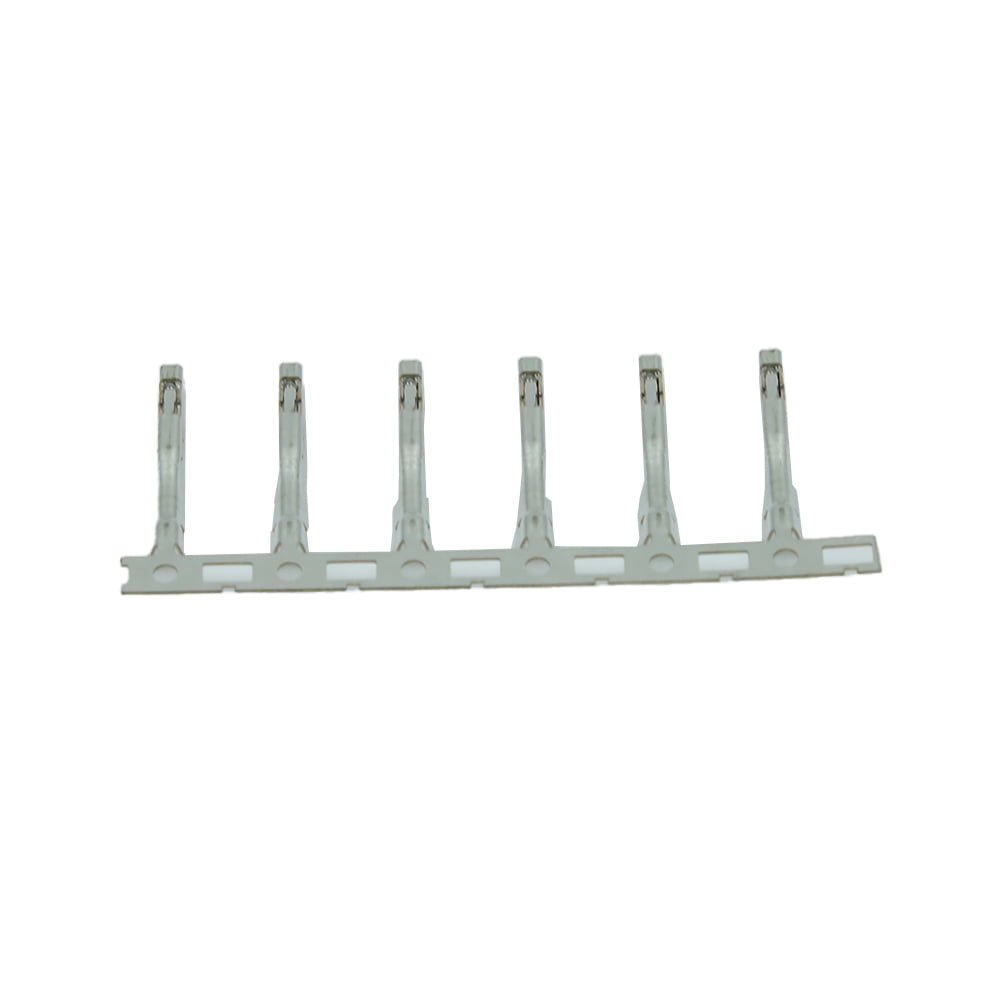

| Product Type Features |
-
Sealable : No
-
Primary Locking Feature : Locking Lance
-
Receptacle Style : 180°
|
| Contact Features |
-
Crimp Type : F-Crimp
-
Typical Current Rating (A): 4
-
Wire Contact Termination Area Plating Material : Tin
-
Contact Fabrication : Stamped & Formed
-
Contact Size : .64mm
-
Terminal Type : Receptacle
-
Mating Tab Width : .64 mm [ .025 in ]
-
Mating Tab Thickness : .64 mm [ .025 in ]
-
Interface Plating : Tin (Sn)
|
| Termination Features |
-
Termination Method to Wire & Cable : Crimp
-
Product Terminates To : Wire
|
| Dimensions |
-
Compatible Insulation Diameter Range : .95 – 1.72 mm [ .037 – .067 in ]
-
Wire Size (AWG): 24 – 20
-
Wire Size (mm²): .22 – .56
-
Wire Size Search (mm²): .2, .25, .3, .4, .5
-
Wire Size Search (AWG): 20, 21, 22, 23, 24
|
| Usage Conditions |
-
Insulation Option : Uninsulated
-
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120
-
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
|
| Operation/Application |
-
Compatible With Wire Base Material : Copper
-
Conforms to KOMAX Automatic Component Insertion Guideline : Yes, per Version 5.0 (March 2018)
|
| Packaging Features |
-
Packaging Method : Reel
-
Packaging Quantity : 10000
|
| Other |
-
Terminal Transmits : 0 – 24 A (Low Power)
|
