Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

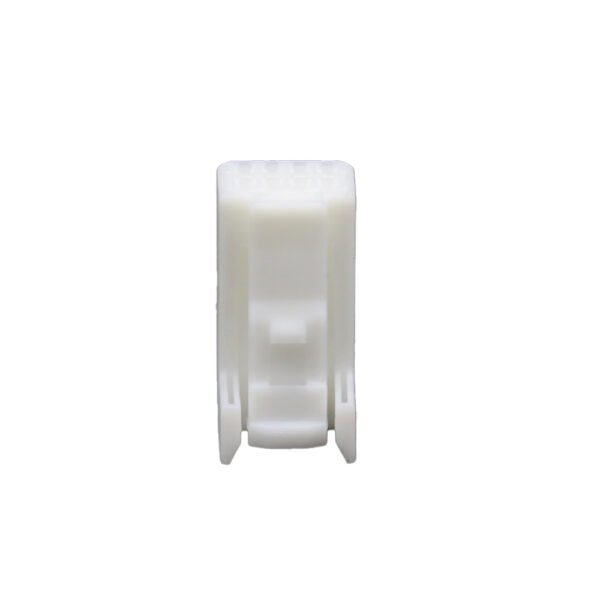

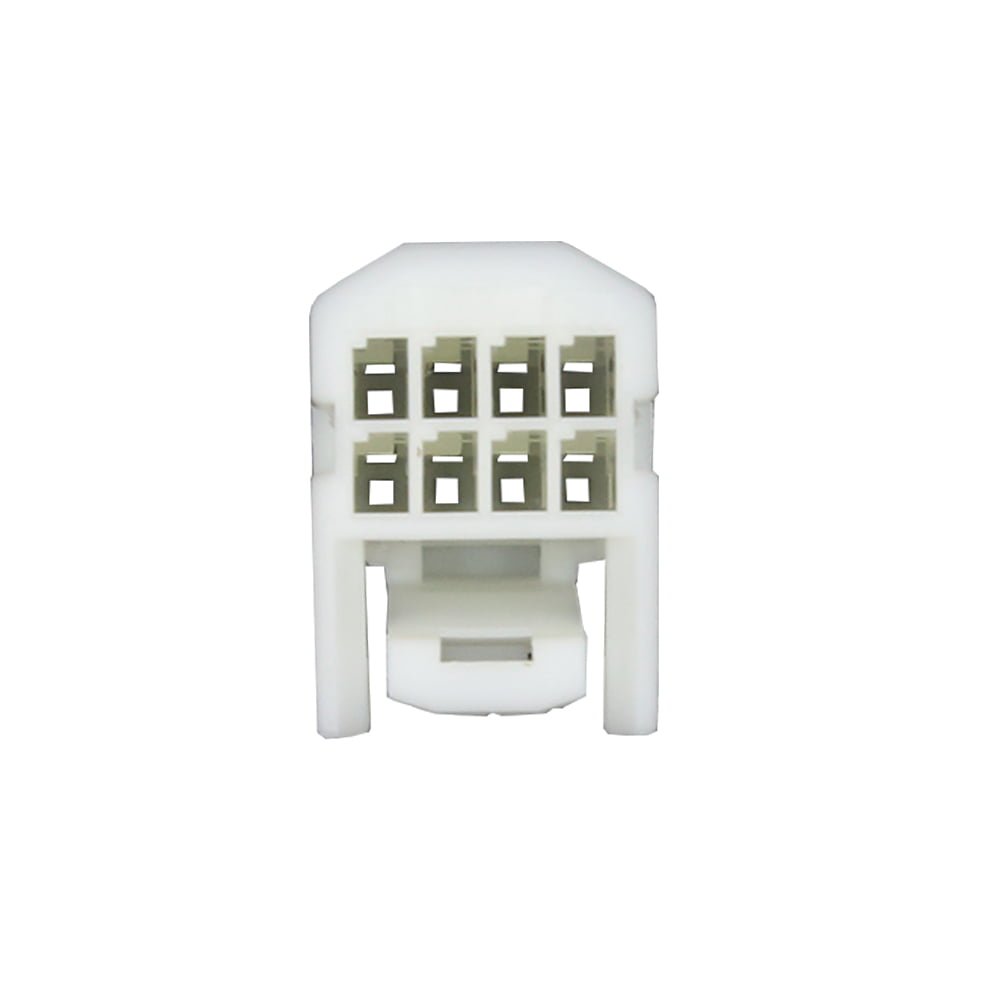

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-Board, Wire-to-Device, Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : NoPrimary Locking Feature : On the TerminalMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 8Number of Rows : 2
|
|---|
| Electrical Characteristics | Operating Voltage (VDC): 12Nominal Voltage Architecture (V): 12
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : Natural
|
|---|
| Contact Features | Contact Type : ReceptacleContact Size : .64mmMating Tab Width : .64 mm [ .025 in ]
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : PolarizedStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PBTCenterline (Pitch) : 2.2 mm [ .087 in ]
|
|---|
| Dimensions | Row-to-Row Spacing : 5.6 mm [ .22 in ]Product Length : 21 mm [ .827 in ]Product Width : 11 mm [ .433 in ]Connector Height : 15.8 mm [ .622 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
|
|---|
| Operation/Application | Circuit Application : Signal
|
|---|
| Industry Standards | UL Flammability Rating : UL 94HB
|
|---|
| Packaging Features | Packaging Method : BagPackaging Quantity : 100
|
|---|
| Other | Connector Position Assurance Capable : NoServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
