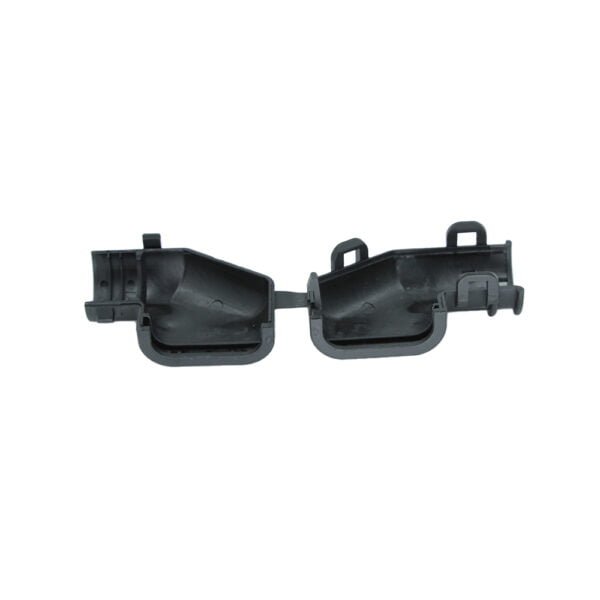

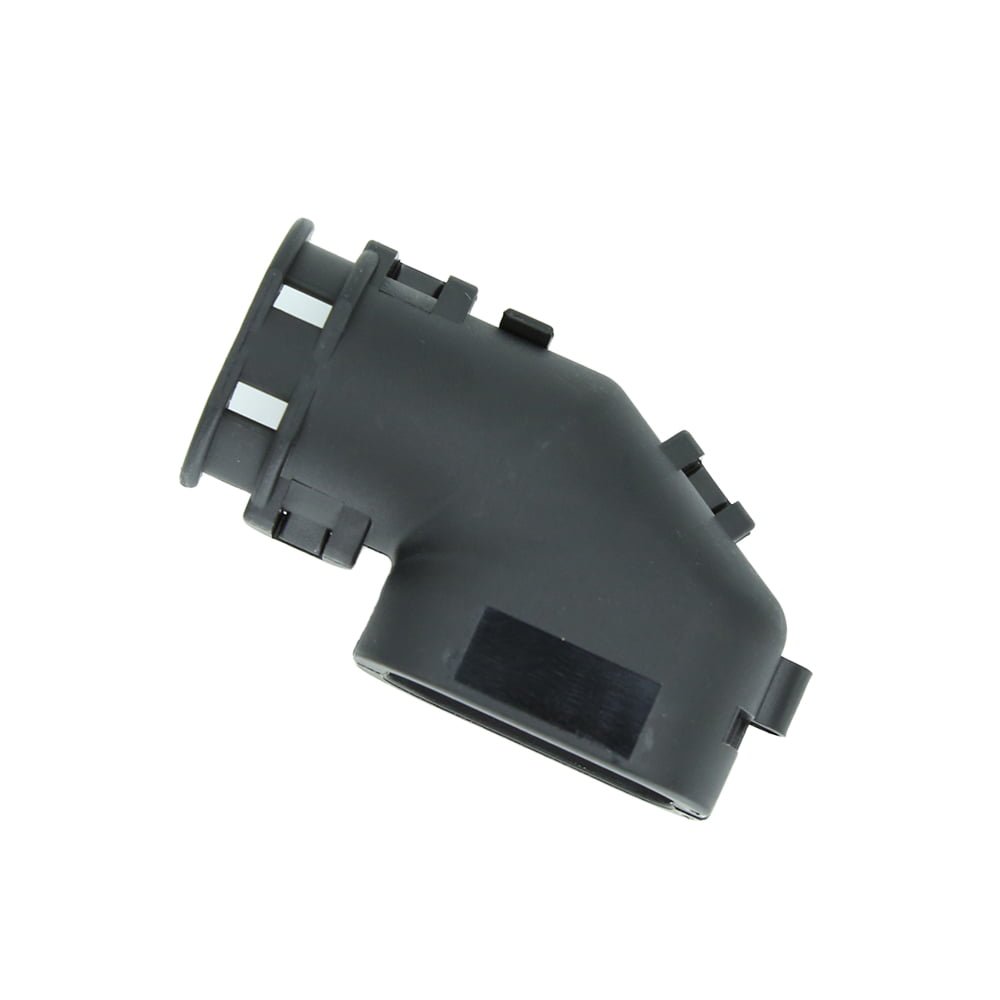

1670057-1

Automotive Connector Caps & Covers, Cover - Cable Exit, Black, PA, 6 / 8 / 7 Position, -40 – 248 °F [-40 – 120 °C], Heavy Duty Sealed Connector Series

Additional information

Protection & Strain Relief Accessory Type	Cover – Cable Exit
Strain Relief	With
Primary Product Color	Black
Primary Product Material	PA
Number of Positions	2, 6, 7, 8

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Protection & Strain Relief Accessory Type : Cover – Cable Exit
Configuration Features	Number of Positions : 2, 6, 7, 8
Body Features	Primary Product Color : Black Primary Product Material : PA
Mechanical Attachment	Strain Relief : With
Dimensions	Compatible Cable Bundle Diameter Range : 14.1 mm [ .555 in ]
Usage Conditions	Compatible With Connector Style : Housing For Female Terminals, Housing For Male Terminals Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120 Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248 Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Industry Standards	UL Flammability Rating : UL 94V-0
Packaging Features	Packaging Method : Package Packaging Quantity : 700
Other	Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

1670057-1

Automotive Connector Caps & Covers, Cover - Cable Exit, Black, PA, 6 / 8 / 7 Position, -40 – 248 °F [-40 – 120 °C], Heavy Duty Sealed Connector Series

Additional information

Protection & Strain Relief Accessory Type : Cover – Cable Exit

Number of Positions : 2, 6, 7, 8

Primary Product Color : Black

Primary Product Material : PA

Strain Relief : With

Compatible Cable Bundle Diameter Range : 14.1 mm [ .555 in ]

Compatible With Connector Style : Housing For Female Terminals, Housing For Male Terminals

Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

UL Flammability Rating : UL 94V-0

Packaging Method : Package

Packaging Quantity : 700

Serviceable : Yes
