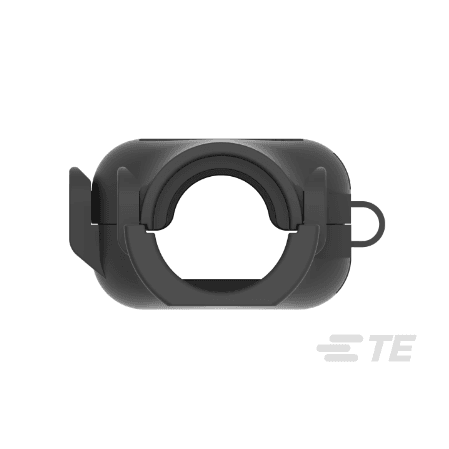

1670365-1

2 / 3 Position, Black, Cover - Cable Exit, PA, 180° Cable Exit, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series

Additional information

Number of Positions	2, 3
Primary Product Color	Black
Protection & Strain Relief Accessory Type	Cover – Cable Exit
Primary Product Material	PA
Cable Exit Angle	180°

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features	Number of Positions : 2, 3
Product Type Features	Protection & Strain Relief Accessory Type : Cover – Cable Exit
Other	Serviceable : Yes
Mechanical Attachment	Strain Relief : With
Packaging Features	Packaging Quantity : 1500 Packaging Method : Box
Dimensions	Compatible Cable Bundle Diameter Range : 9.9 mm [ .39 in ]
Body Features	Primary Product Color : Black Primary Product Material : PA Cable Exit Angle : 180°
Industry Standards	UL Flammability Rating : UL 94V-0
Usage Conditions	Compatible With Connector Style : Housing For Female Terminals, Housing For Male Terminals Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120 Operating Temperature (Max) (°F): 248 Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

1670365-1

2 / 3 Position, Black, Cover - Cable Exit, PA, 180° Cable Exit, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series

Additional information

Number of Positions : 2, 3

Protection & Strain Relief Accessory Type : Cover – Cable Exit

Serviceable : Yes

Strain Relief : With

Packaging Quantity : 1500

Packaging Method : Box

Compatible Cable Bundle Diameter Range : 9.9 mm [ .39 in ]

Primary Product Color : Black

Primary Product Material : PA

Cable Exit Angle : 180°

UL Flammability Rating : UL 94V-0

Compatible With Connector Style : Housing For Female Terminals, Housing For Male Terminals

Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120

Operating Temperature (Max) (°F): 248

Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
