174056-2

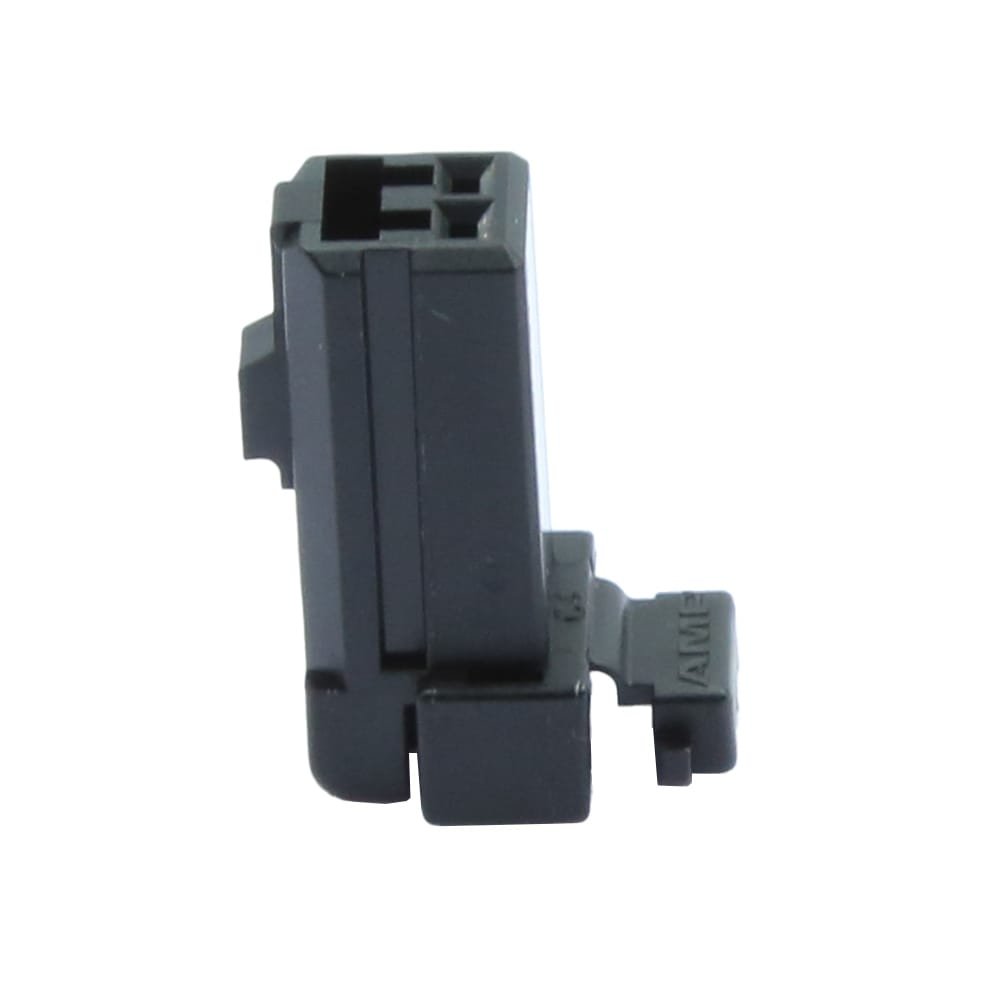

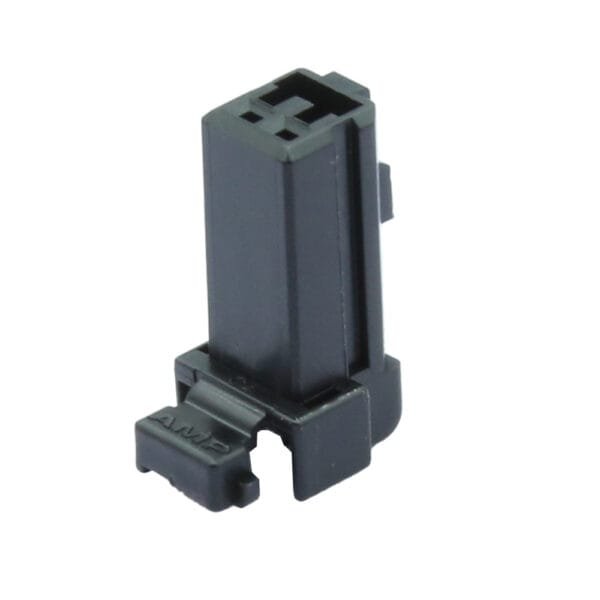

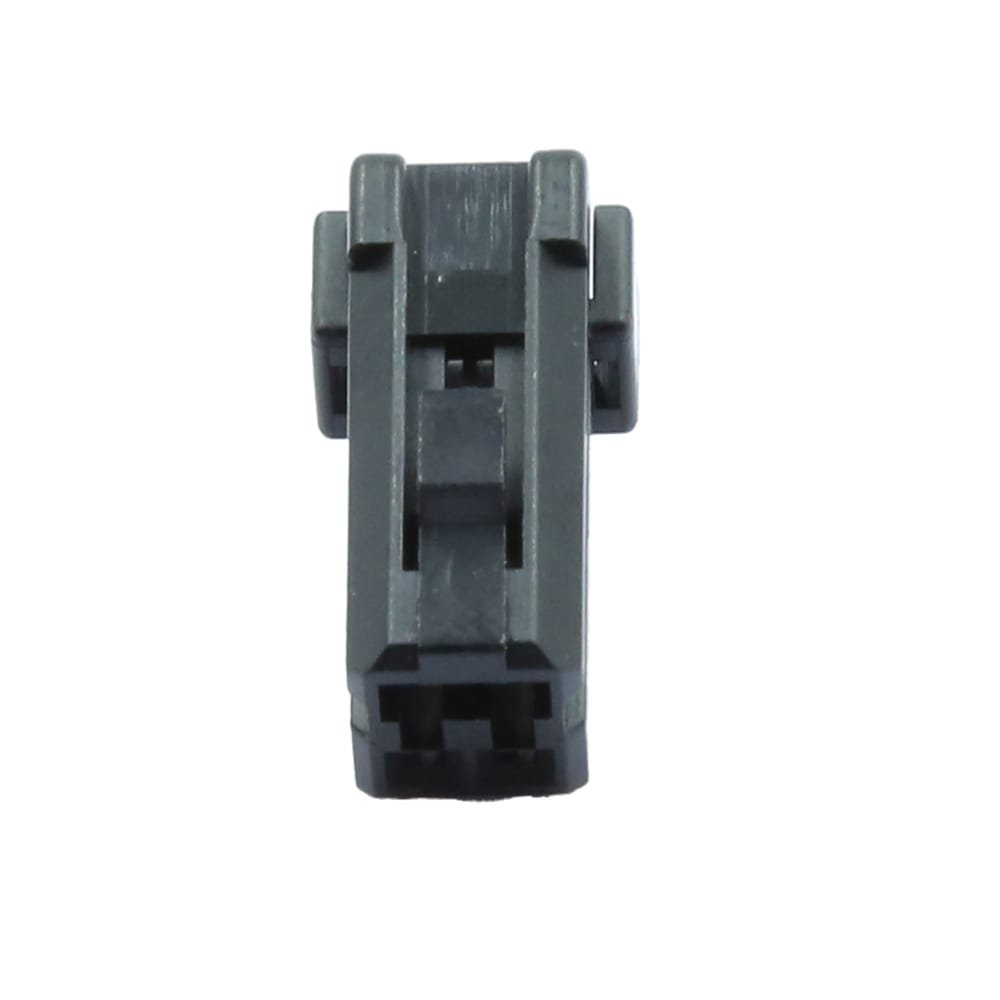

2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.5 mm [.09 in] Centerline, Black, Wire & Cable, Signal, Multilock Connector System

Additional information

Number of Positions	2
Connector & Housing Type	Housing for Female Terminals
Mating Tab Width	1 mm [ .04 in ]
Connector System	Wire-to-Wire
Centerline (Pitch)	2.5 mm [ .09 in ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features	Number of Positions : 2 Number of Rows : 1
Product Type Features	Connector Shape : Rectangular Mixed & Hybrid Connector : No Connector & Housing Type : Housing for Female Terminals Connector System : Wire-to-Wire Sealable : No Primary Locking Feature : Integrated in Housing Connector & Contact Terminates To : Wire & Cable
Contact Features	Contact Type : Receptacle Contact Size : 1mm Mating Tab Width : 1 mm [ .04 in ]
Other	Serviceable : No Connector Position Assurance Capable : No
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Polarization Terminal Position Assurance : Yes Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging)
Packaging Features	Packaging Method : Bag Packaging Quantity : 500
Dimensions	Connector Height : 10.3 mm [ .406 in ] Product Length : 18.5 mm [ .728 in ] Product Width : 8.9 mm [ .35 in ]
Usage Conditions	Operating Temperature (Max) : 105 °C [ 221 °F ] Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
Body Features	Cable Exit Angle : 180° Primary Product Color : Black
Housing Features	Housing Material : PBT Centerline (Pitch) : 2.5 mm [ .09 in ]
Operation/Application	Circuit Application : Signal
