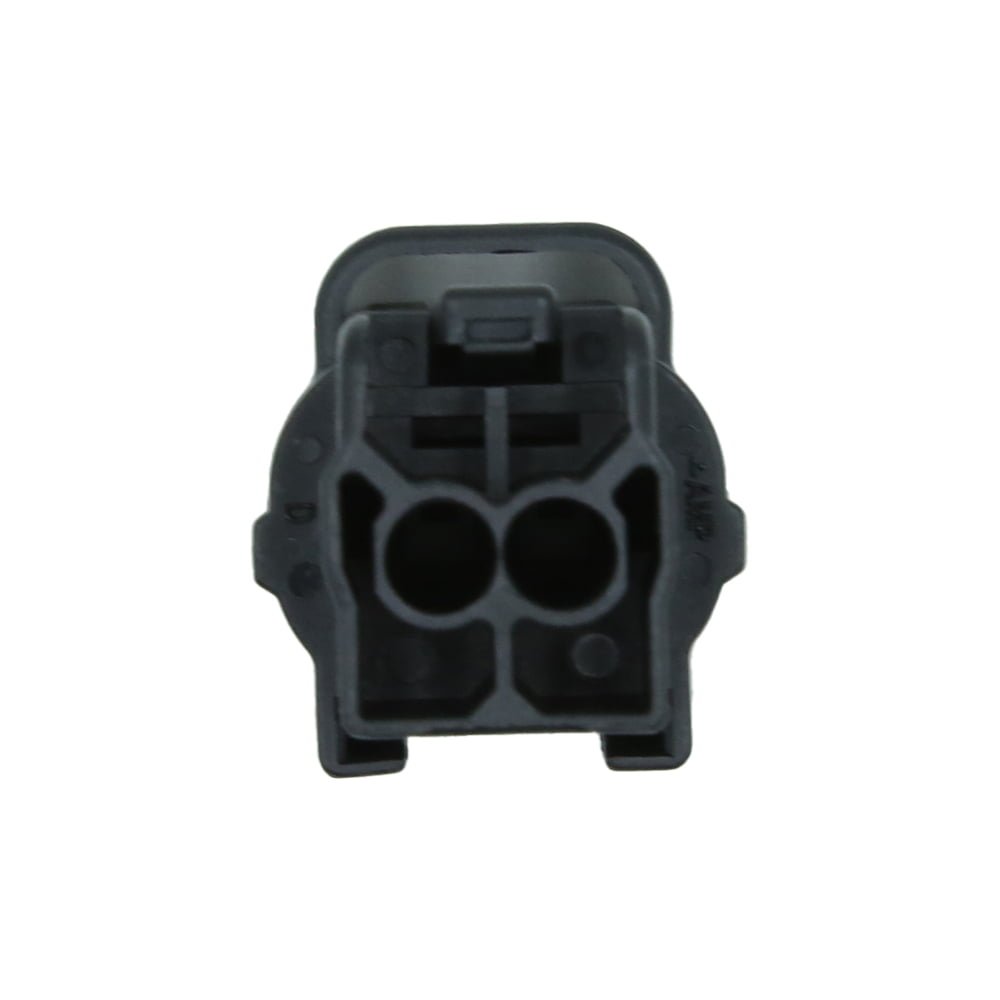

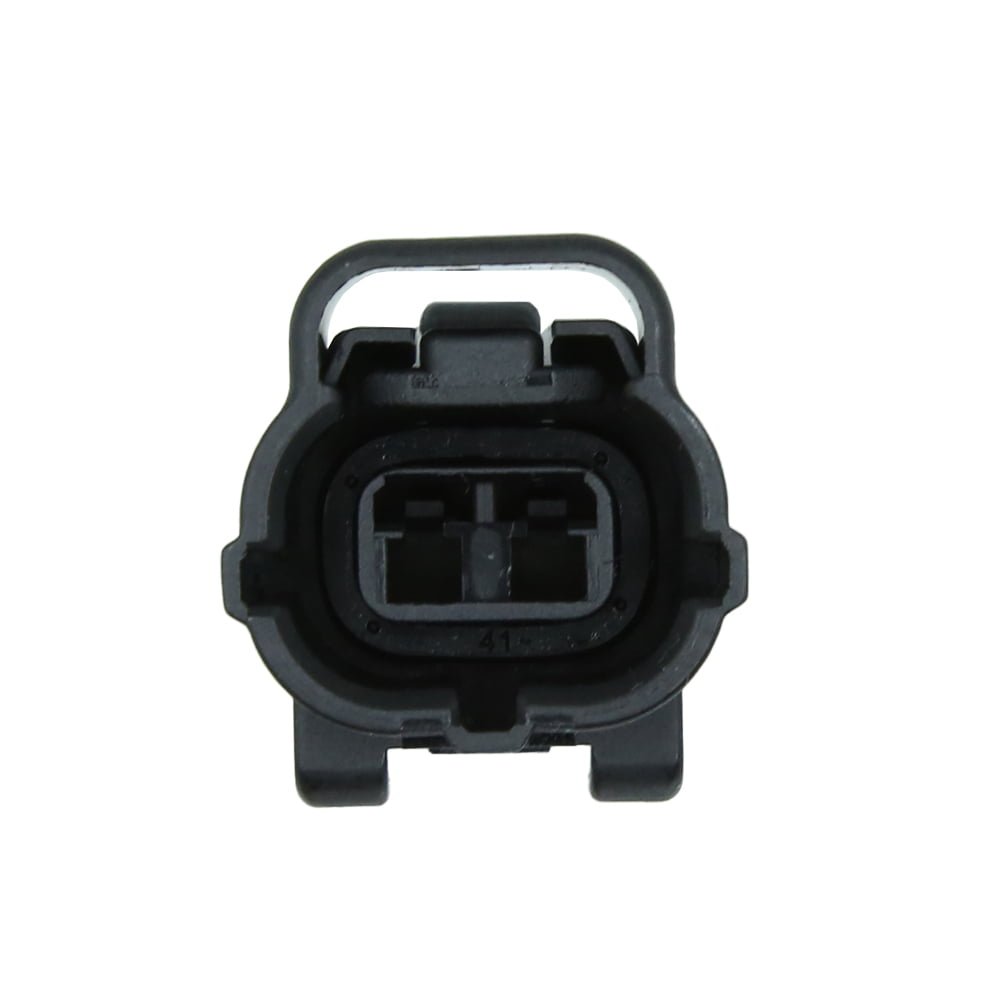

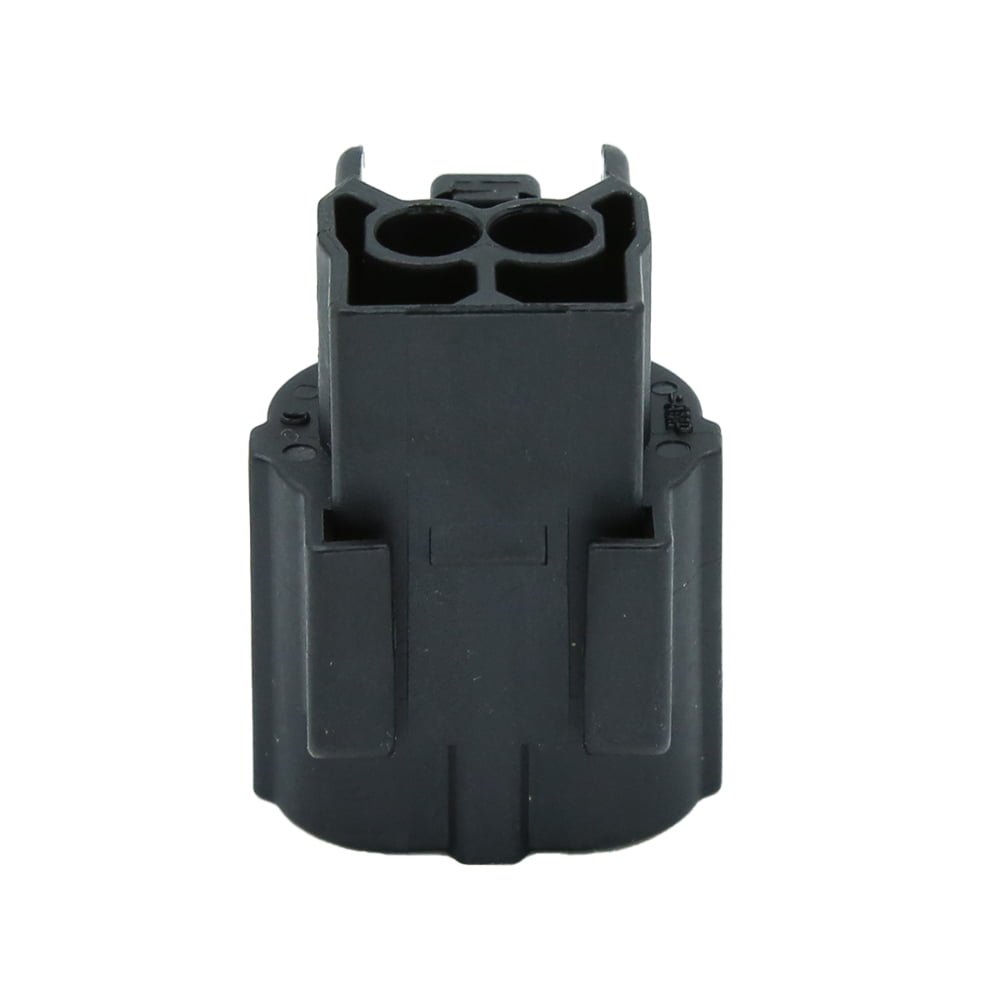

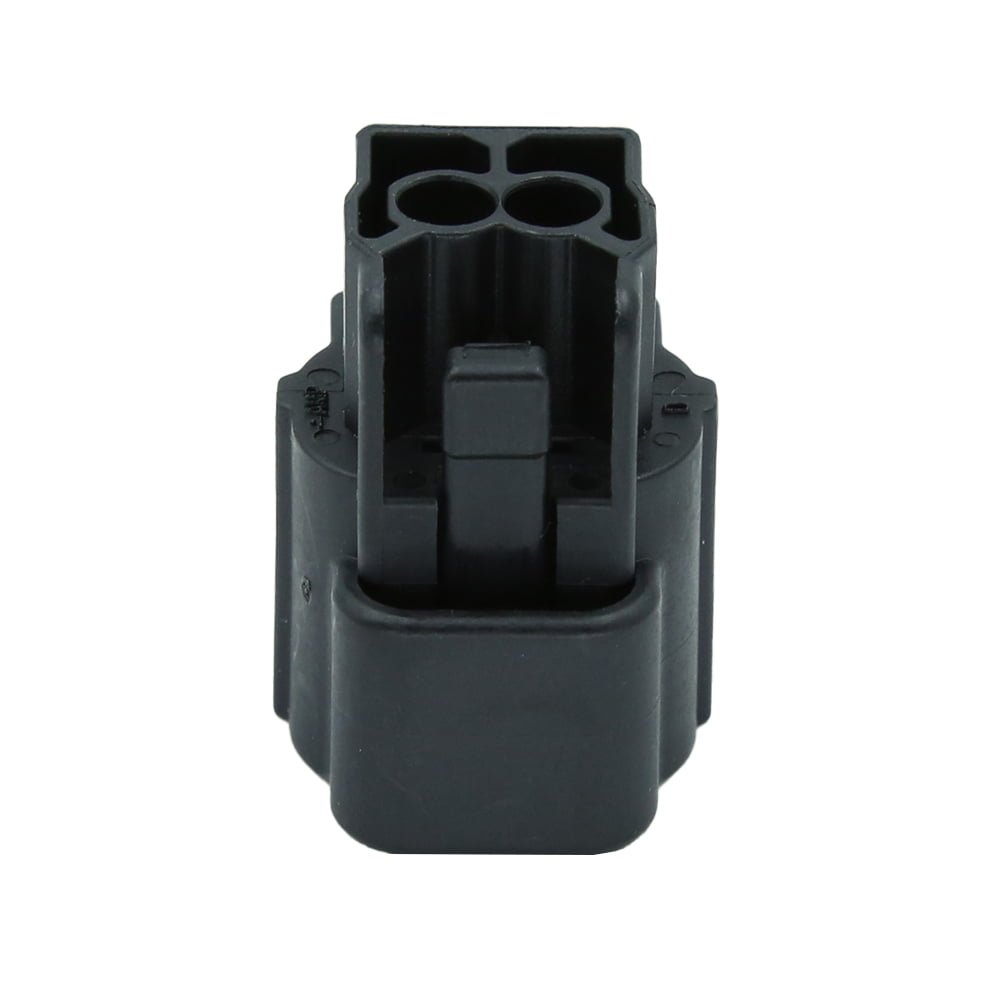

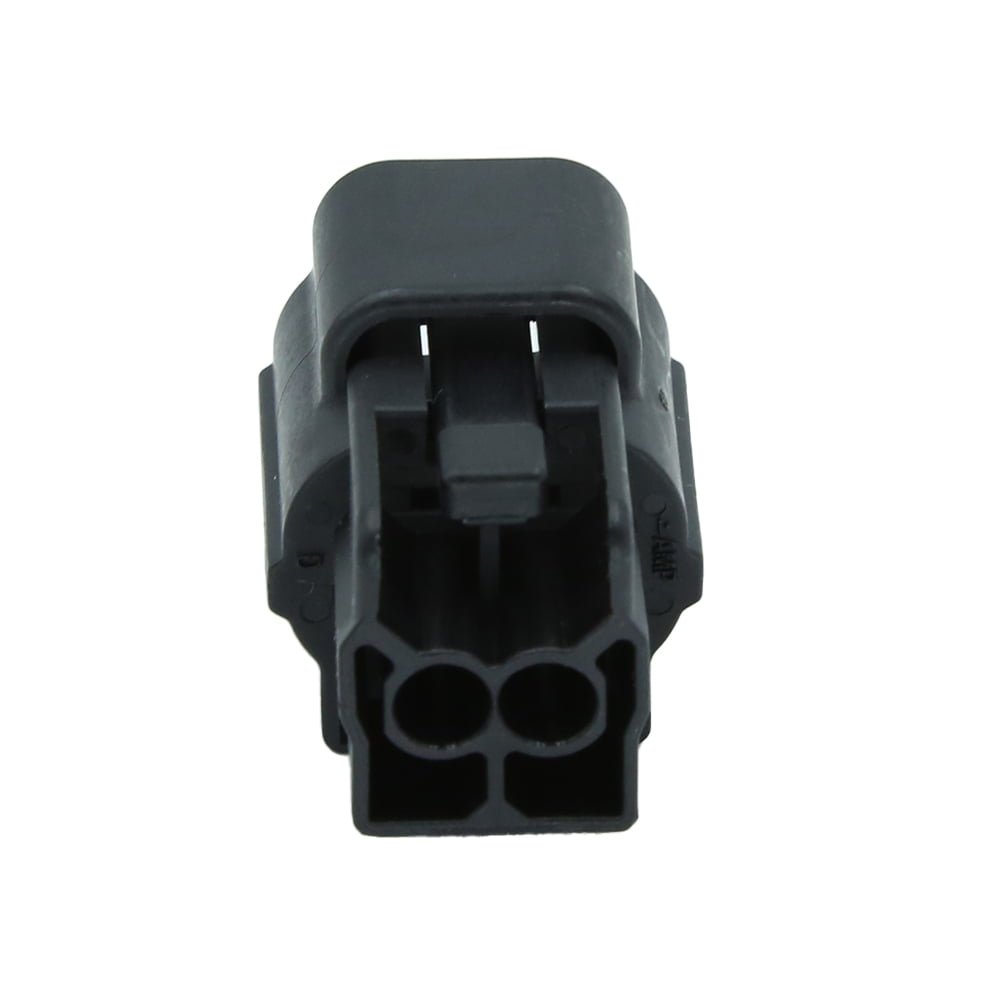

174352-2

Housing for Female Terminals, Wire-to-Wire, 2 Position, .189 in [4.8 mm] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging)

Additional information

Connector System	Wire-to-Wire
Number of Positions	2
Connector & Housing Type	Housing for Female Terminals
Centerline (Pitch)	4.8 mm [ .189 in ]
Sealable	Yes

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Connector Shape : Rectangular Connector System : Wire-to-Wire Connector & Housing Type : Housing for Female Terminals Sealable : Yes Primary Locking Feature : Integrated in Housing Mixed & Hybrid Connector : No
Configuration Features	Number of Positions : 2 Number of Rows : 1
Electrical Characteristics	Operating Voltage (VDC): 12 Nominal Voltage Architecture (V): 12
Body Features	Cable Exit Angle : 180° Primary Product Color : Black
Contact Features	Contact Type : Receptacle Contact Size : 1.8mm Mating Tab Width : 1.8 mm [ .071 in ]
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Polarization Slot Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging) Terminal Position Assurance : Yes
Housing Features	Housing Material : PBT Centerline (Pitch) : 4.8 mm [ .189 in ]
Dimensions	Product Length : 27.6 mm [ 1.087 in ] Product Width : 20.6 mm [ .811 in ] Connector Height : 22.8 mm [ .898 in ]
Usage Conditions	Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105 Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221 Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
Operation/Application	Circuit Application : Signal
Industry Standards	UL Flammability Rating : UL 94V-2
Packaging Features	Packaging Method : Bag Packaging Quantity : 100
Other	Connector Position Assurance Capable : No Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

174352-2

Housing for Female Terminals, Wire-to-Wire, 2 Position, .189 in [4.8 mm] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging)

Additional information

Connector Shape : Rectangular

Connector System : Wire-to-Wire

Connector & Housing Type : Housing for Female Terminals

Sealable : Yes

Primary Locking Feature : Integrated in Housing

Mixed & Hybrid Connector : No

Number of Positions : 2

Number of Rows : 1

Operating Voltage (VDC): 12

Nominal Voltage Architecture (V): 12

Cable Exit Angle : 180°

Primary Product Color : Black

Contact Type : Receptacle

Contact Size : 1.8mm

Mating Tab Width : 1.8 mm [ .071 in ]

Mating Alignment : With

Mating Alignment Type : Polarization Slot

Strain Relief : Without

Connector Mounting Type : Cable Mount (Free-Hanging)

Terminal Position Assurance : Yes

Housing Material : PBT

Centerline (Pitch) : 4.8 mm [ .189 in ]

Product Length : 27.6 mm [ 1.087 in ]

Product Width : 20.6 mm [ .811 in ]

Connector Height : 22.8 mm [ .898 in ]

Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105

Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221

Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Circuit Application : Signal

UL Flammability Rating : UL 94V-2

Packaging Method : Bag

Packaging Quantity : 100

Connector Position Assurance Capable : No

Serviceable : Yes
