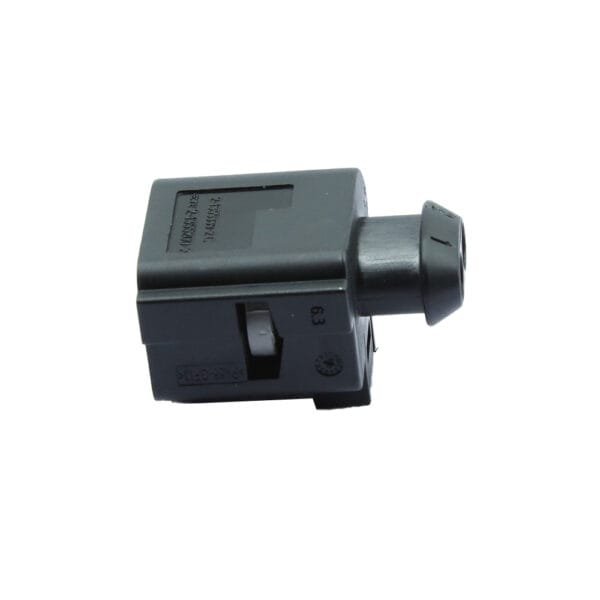

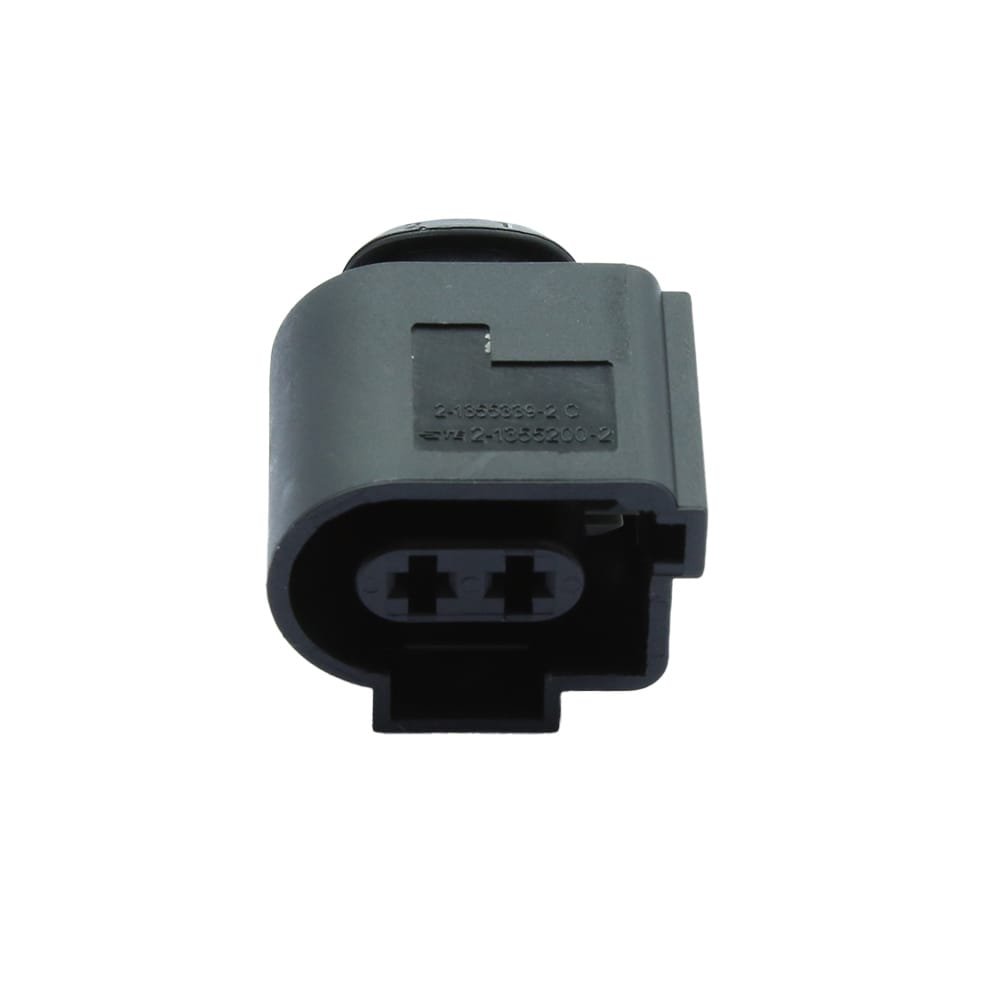

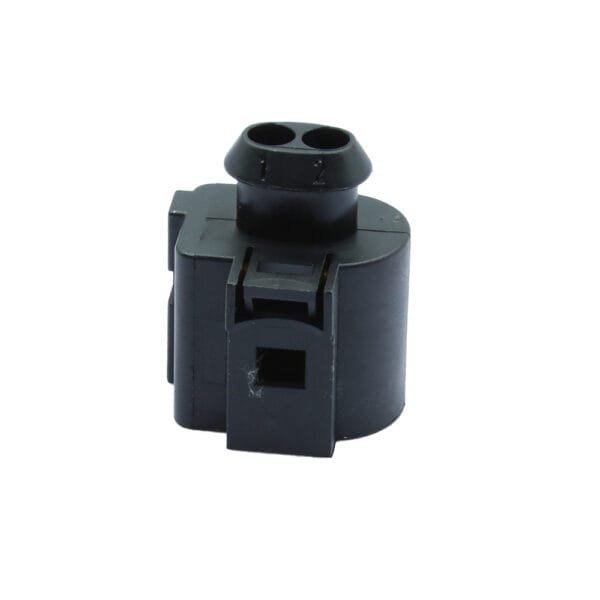

2-1355200-2

2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 6 mm [.236 in] Centerline, Sealable, Black, Wire & Cable, Power, Hybrid

Additional information

Number of Positions

2

Connector & Housing Type

Housing for Female Terminals

Mating Tab Width

2.8 mm [ .11 in ]

Connector System

Wire-to-Wire

Centerline (Pitch) 

6 mm [ .236 in ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Configuration Features
  • Number of Positions : 2

  • Number of Rows : 1

Product Type Features
  • Connector Shape : Rectangular

  • Mixed & Hybrid Connector : No

  • Connector & Housing Type : Housing for Female Terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Primary Locking Feature : On the Terminal

  • Connector & Contact Terminates To : Wire & Cable

Contact Features
  • Contact Type : Receptacle

  • Contact Size : 2.8mm

  • Mating Tab Width : 2.8 mm [ .11 in ]

  • Contact Current Rating (Max) (A): 35

Other
  • Serviceable : Yes

  • Connector Position Assurance Capable : No

Mechanical Attachment
  • Mating Alignment : With

  • Mating Alignment Type : Keyed

  • Terminal Position Assurance : Yes

  • Strain Relief : Without

  • Connector Mounting Type : Cable Mount (Free-Hanging)

Packaging Features
  • Packaging Quantity : 1000

  • Packaging Method : Container

Dimensions
  • Connector Height : 22.7 mm [ .894 in ]

  • Product Length : 25 mm [ .984 in ]

  • Product Width : 33 mm [ 1.299 in ]

Usage Conditions
  • Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100

  • Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212

  • Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]

Body Features
  • Cable Exit Angle : 180°

  • Primary Product Color : Black

  • Connector & Keying Code : B

Housing Features
  • Housing Material : PA GF

  • Centerline (Pitch) : 6 mm [ .236 in ]

Electrical Characteristics
  • Nominal Voltage Architecture (V): 25

Operation/Application
  • Circuit Application : Power

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
