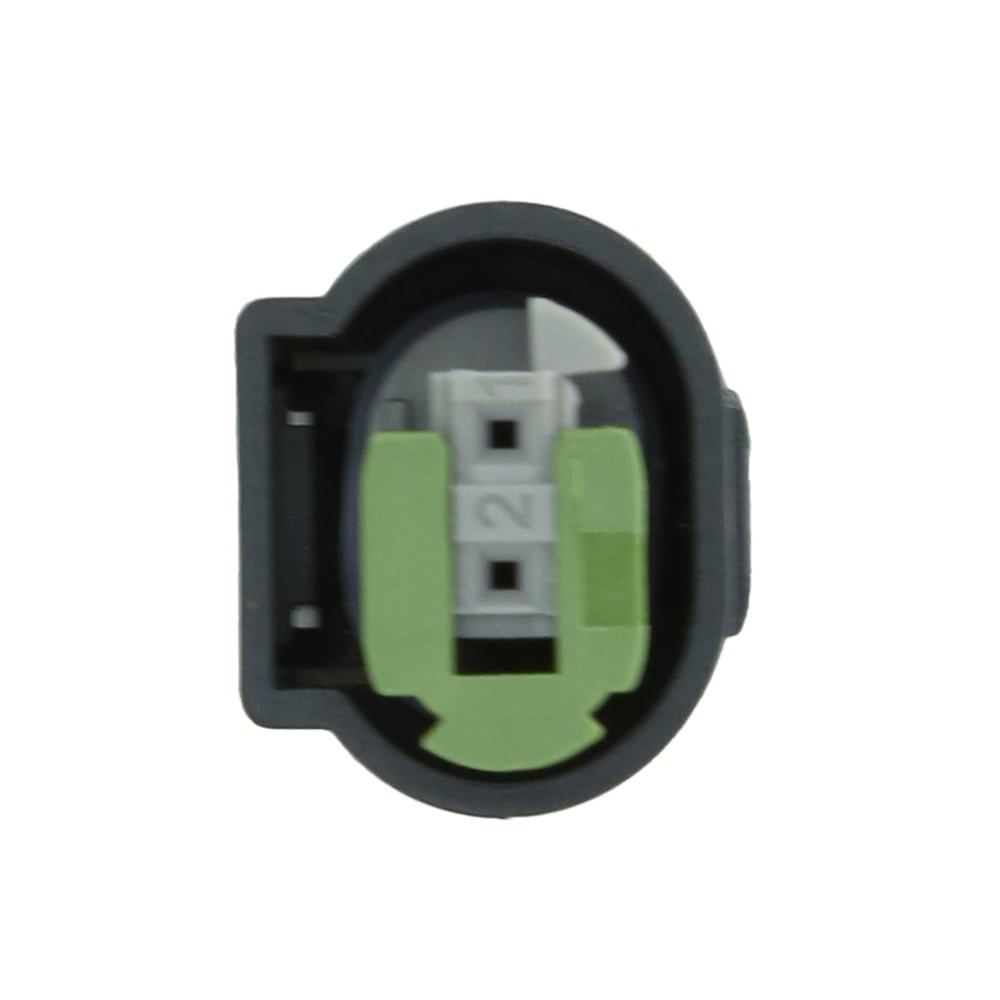

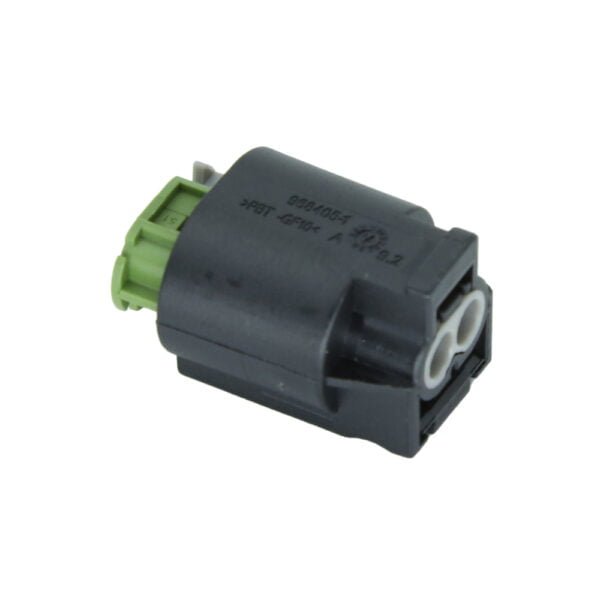

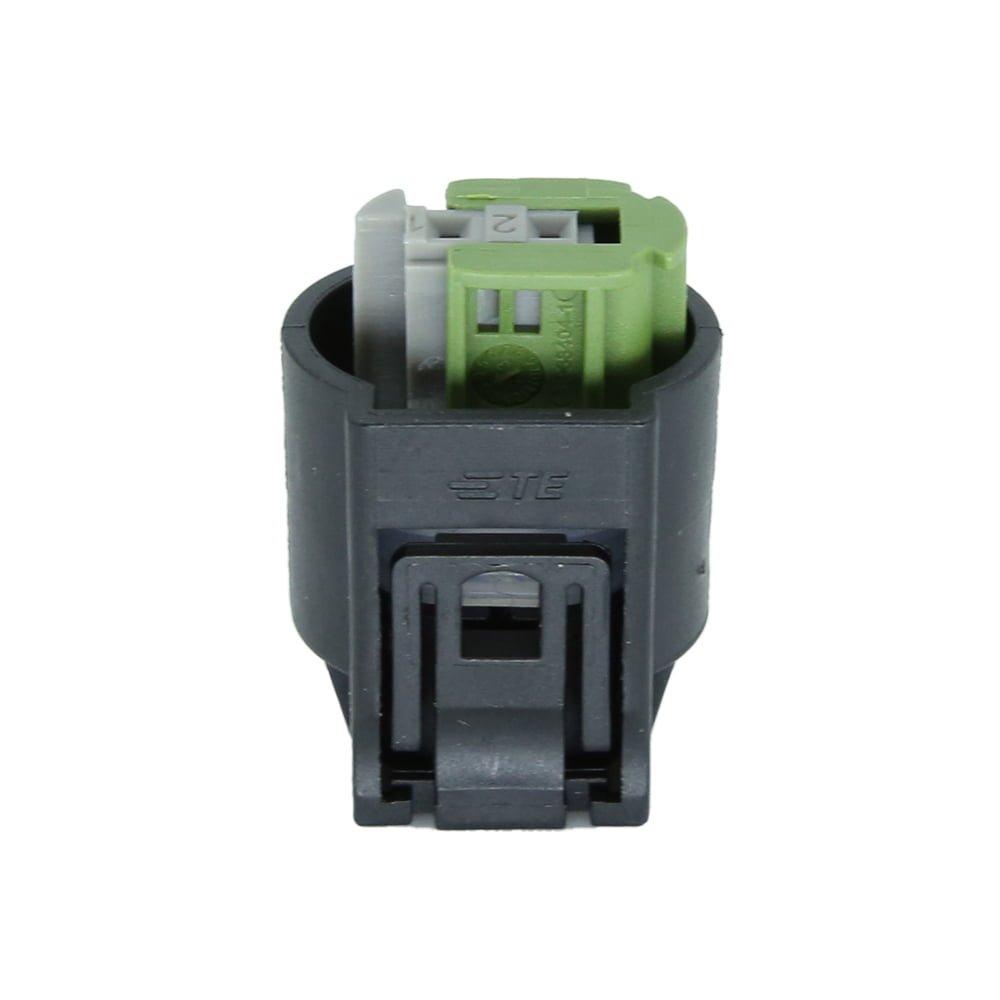

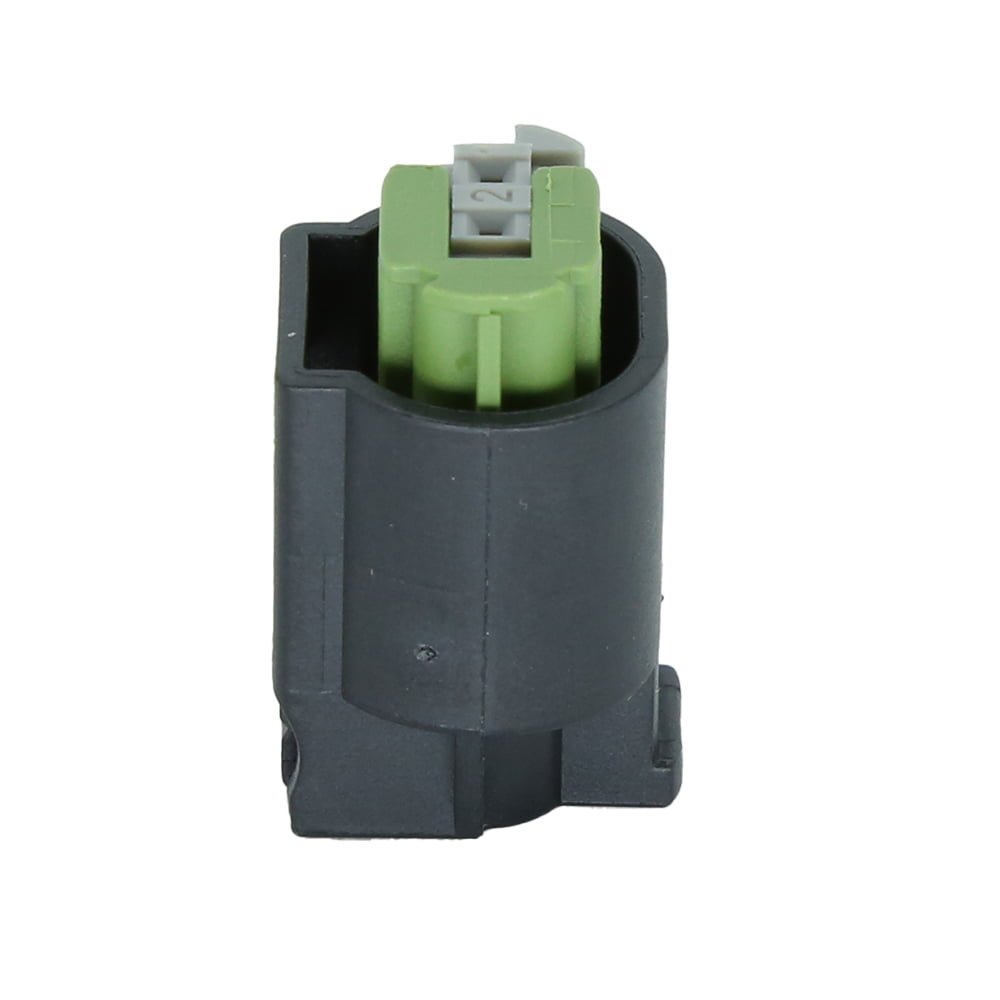

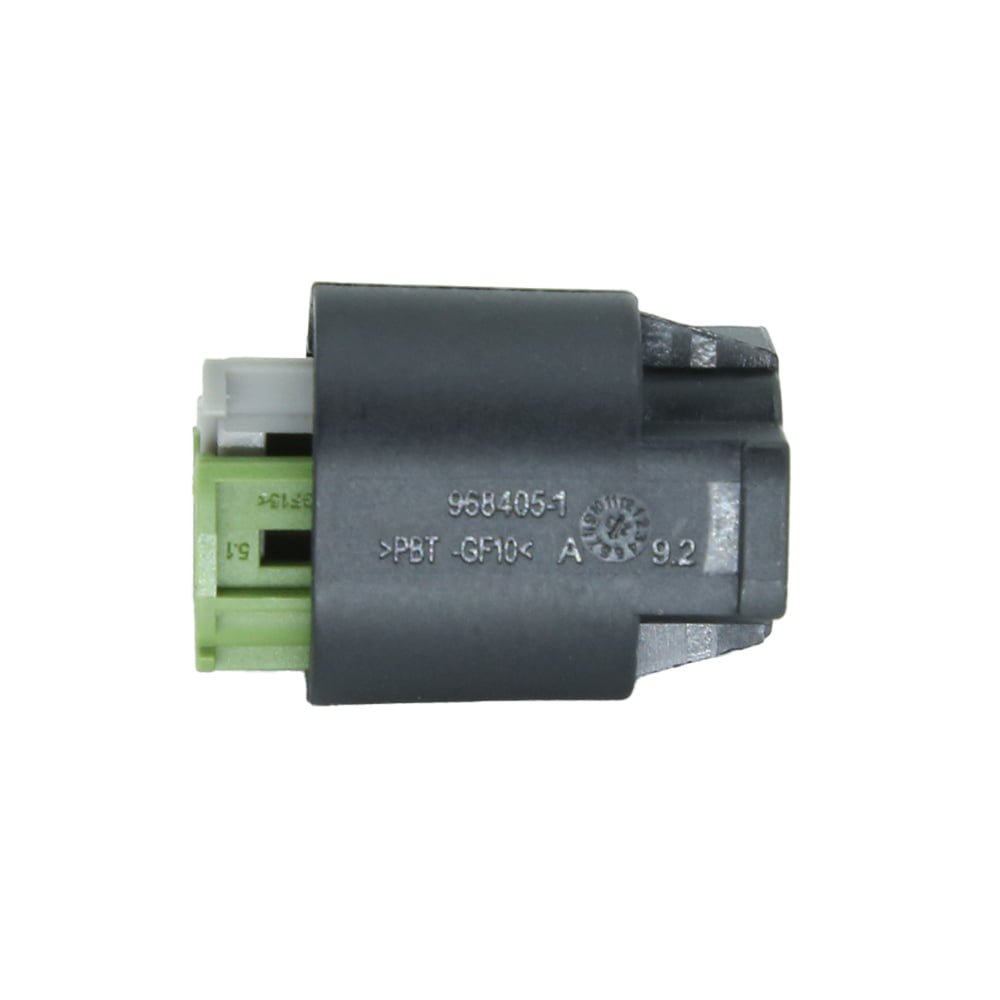

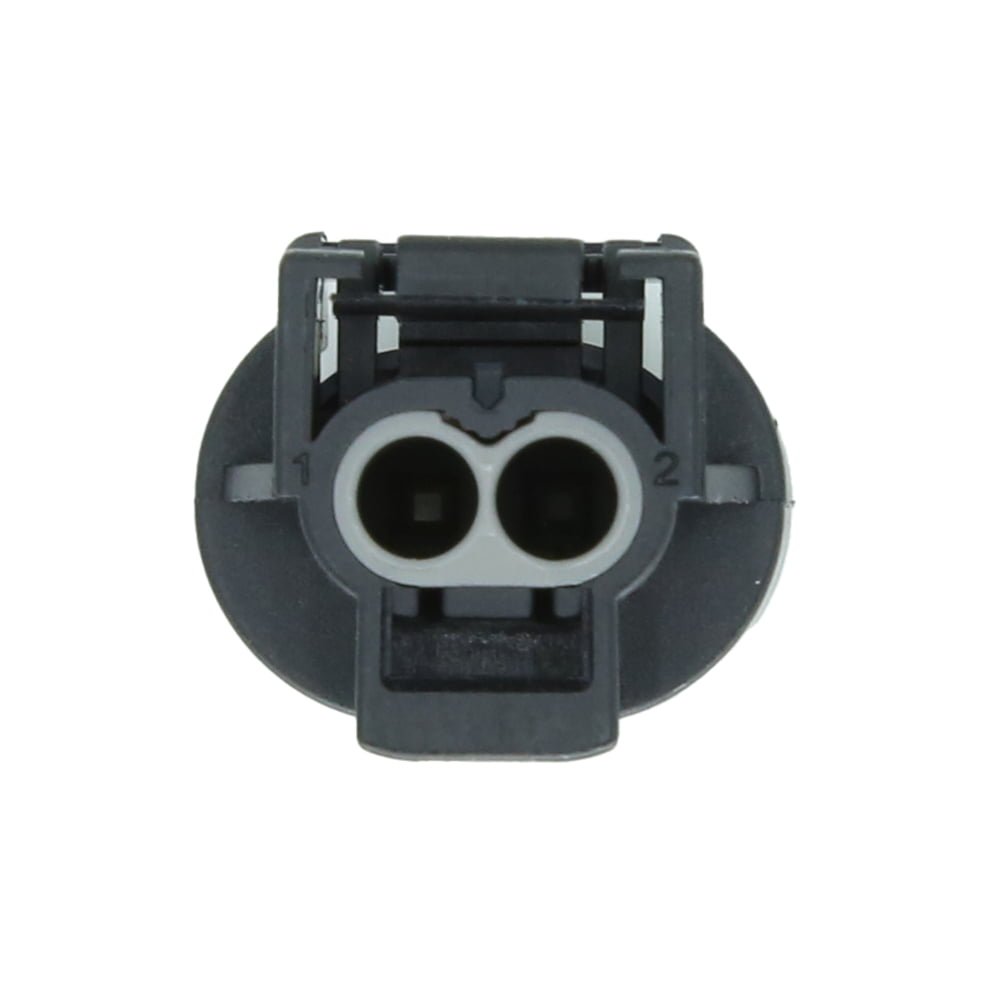

2-967644-1

Housing for Female Terminals, Wire-to-Wire, 2 Position, .157 in [4 mm] Centerline, Sealable, Gray, Wire & Cable, Signal, Cable Mount (Free-Hanging)

Additional information

Connector System	Wire-to-Wire
Number of Positions	2
Connector & Housing Type	Housing for Female Terminals
Centerline (Pitch)	4 mm [ .157 in ]
Sealable	Yes

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Connector Shape : Rectangular Connector System : Wire-to-Wire Connector & Housing Type : Housing for Female Terminals Sealable : Yes Connector & Contact Terminates To : Wire & Cable Primary Locking Feature : On the Terminal Mixed & Hybrid Connector : No
Configuration Features	Number of Positions : 2 Number of Rows : 1
Electrical Characteristics	Operating Voltage (VDC): 50 Nominal Voltage Architecture (V): 50
Body Features	Cable Exit Angle : 180° Primary Product Color : Gray Connector & Keying Code : B
Contact Features	Contact Type : Receptacle Contact Size : .63mm Mating Tab Width : .63 mm [ .025 in ] Contact Current Rating (Max) (A): 7.5
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Keyed Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging) Terminal Position Assurance : Yes
Housing Features	Housing Material : PBT GF Centerline (Pitch) : 4 mm [ .157 in ]
Dimensions	Product Length : 17.4 mm [ .685 in ] Product Width : 15.3 mm [ .602 in ] Connector Height : 24.15 mm [ .951 in ]
Usage Conditions	Operating Temperature (Max) : 120 °C [ 248 °F ] Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Operation/Application	Circuit Application : Signal
Packaging Features	Packaging Method : Bag Packaging Quantity : 2700
Other	Connector Position Assurance Capable : No Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

2-967644-1

Housing for Female Terminals, Wire-to-Wire, 2 Position, .157 in [4 mm] Centerline, Sealable, Gray, Wire & Cable, Signal, Cable Mount (Free-Hanging)

Additional information

Connector Shape : Rectangular

Connector System : Wire-to-Wire

Connector & Housing Type : Housing for Female Terminals

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Primary Locking Feature : On the Terminal

Mixed & Hybrid Connector : No

Number of Positions : 2

Number of Rows : 1

Operating Voltage (VDC): 50

Nominal Voltage Architecture (V): 50

Cable Exit Angle : 180°

Primary Product Color : Gray

Connector & Keying Code : B

Contact Type : Receptacle

Contact Size : .63mm

Mating Tab Width : .63 mm [ .025 in ]

Contact Current Rating (Max) (A): 7.5

Mating Alignment : With

Mating Alignment Type : Keyed

Strain Relief : Without

Connector Mounting Type : Cable Mount (Free-Hanging)

Terminal Position Assurance : Yes

Housing Material : PBT GF

Centerline (Pitch) : 4 mm [ .157 in ]

Product Length : 17.4 mm [ .685 in ]

Product Width : 15.3 mm [ .602 in ]

Connector Height : 24.15 mm [ .951 in ]

Operating Temperature (Max) : 120 °C [ 248 °F ]

Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Circuit Application : Signal

Packaging Method : Bag

Packaging Quantity : 2700

Connector Position Assurance Capable : No

Serviceable : Yes
