Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

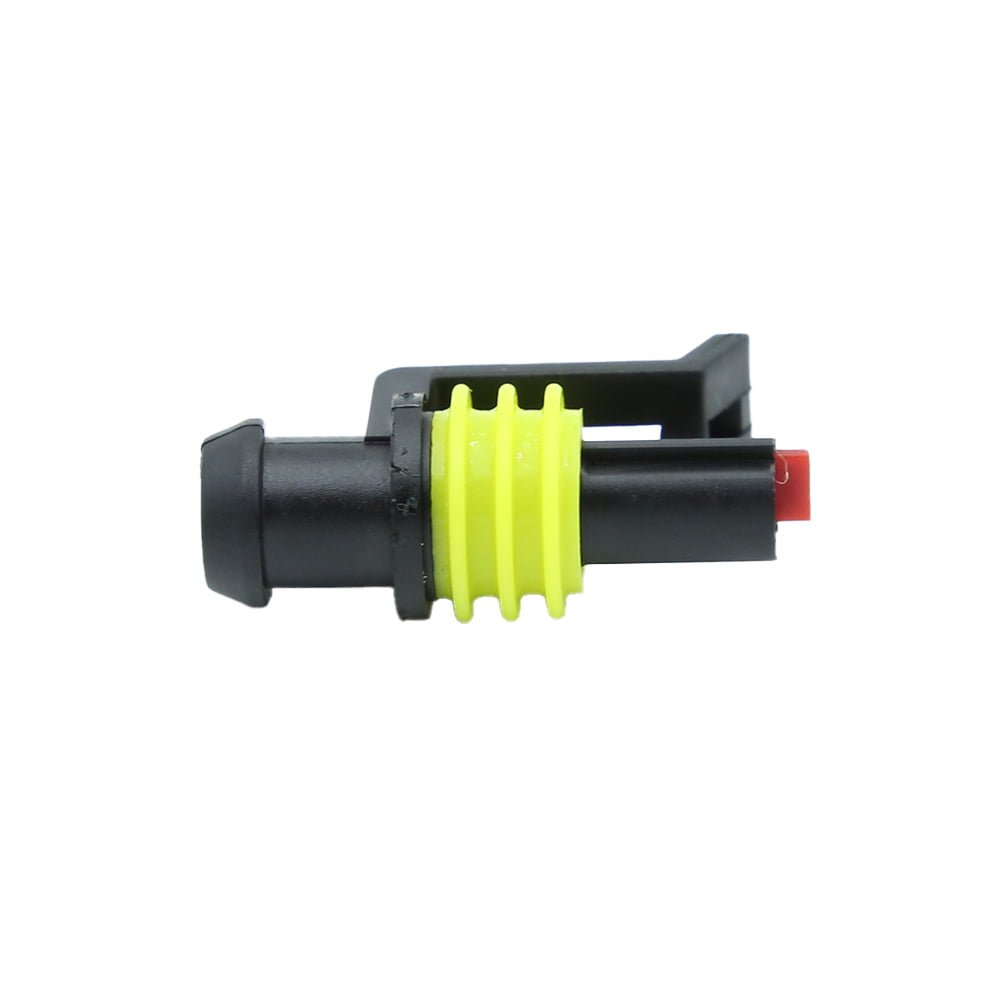

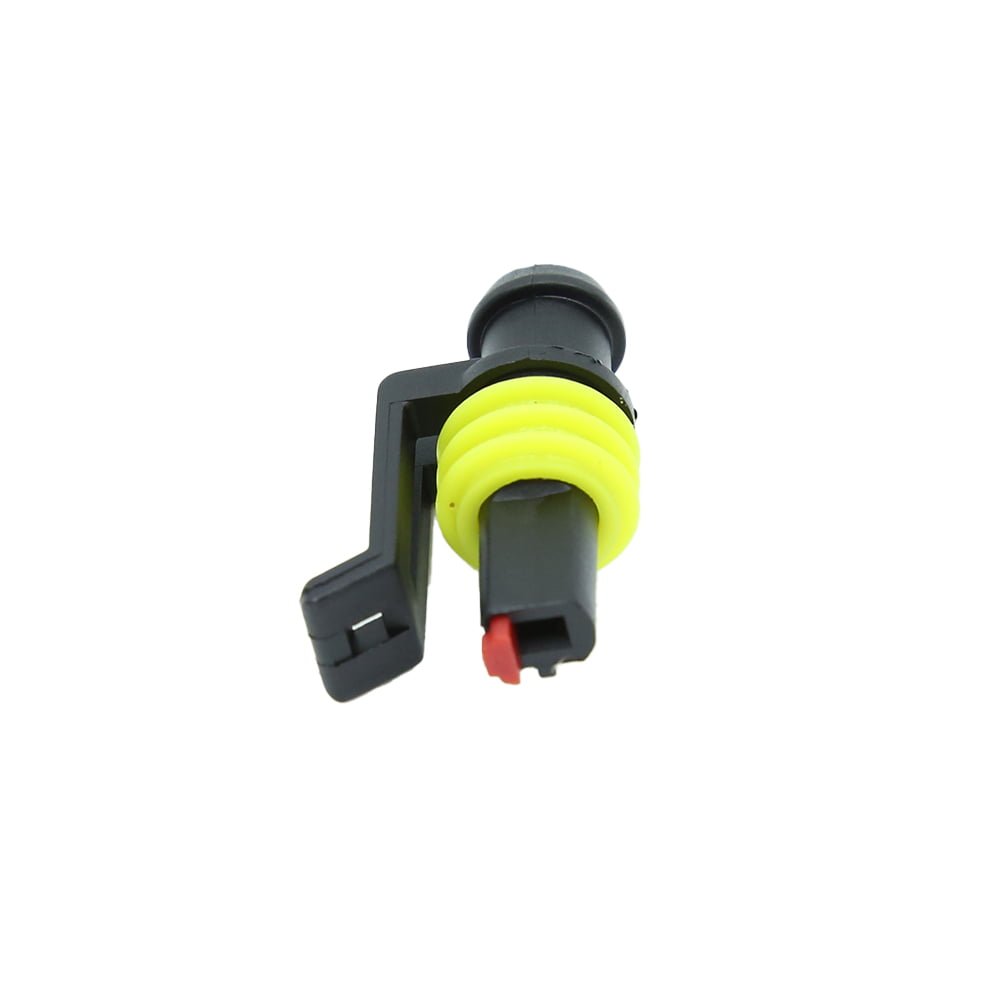

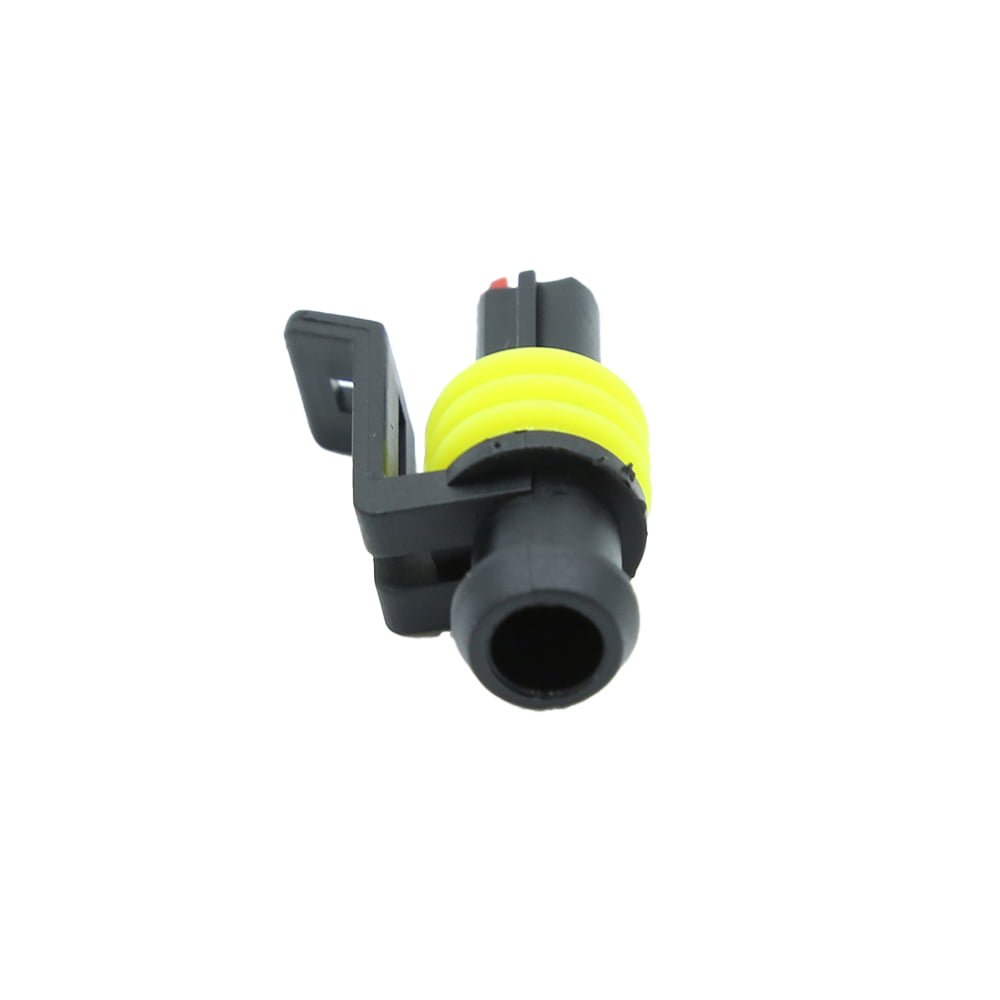

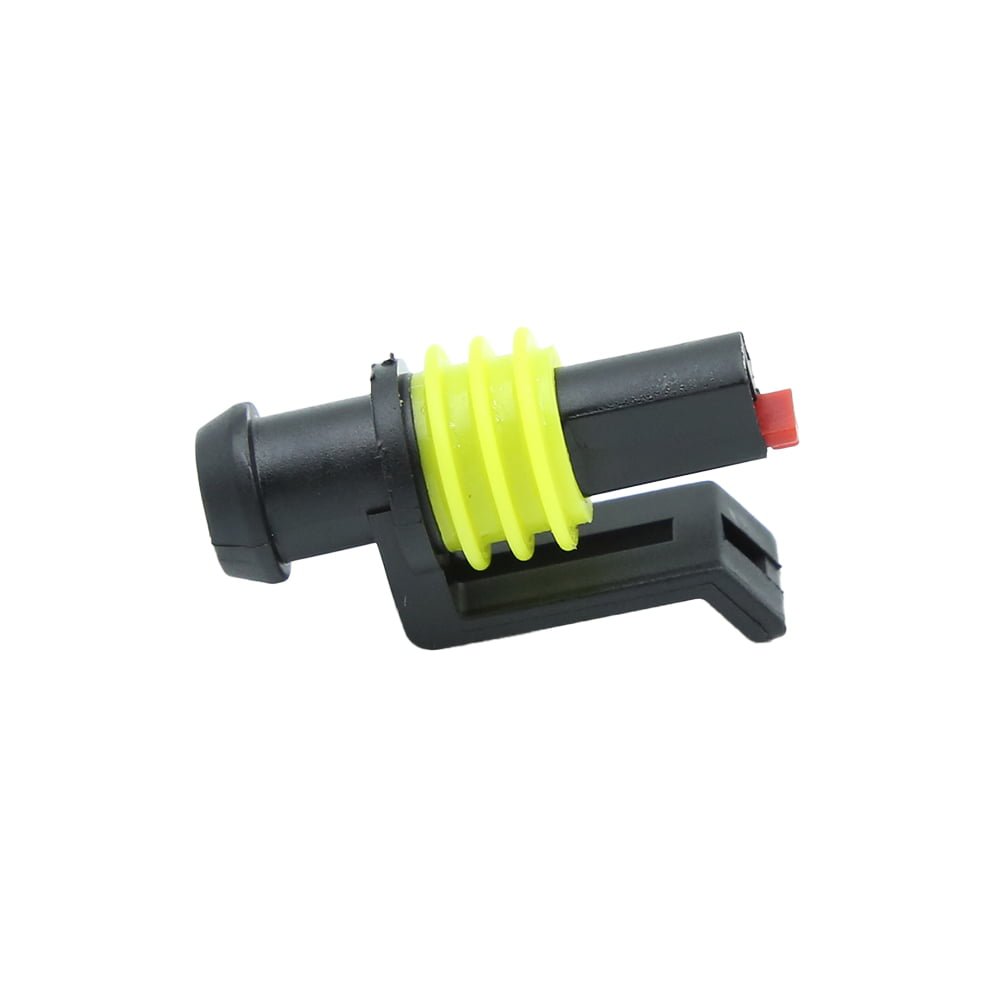

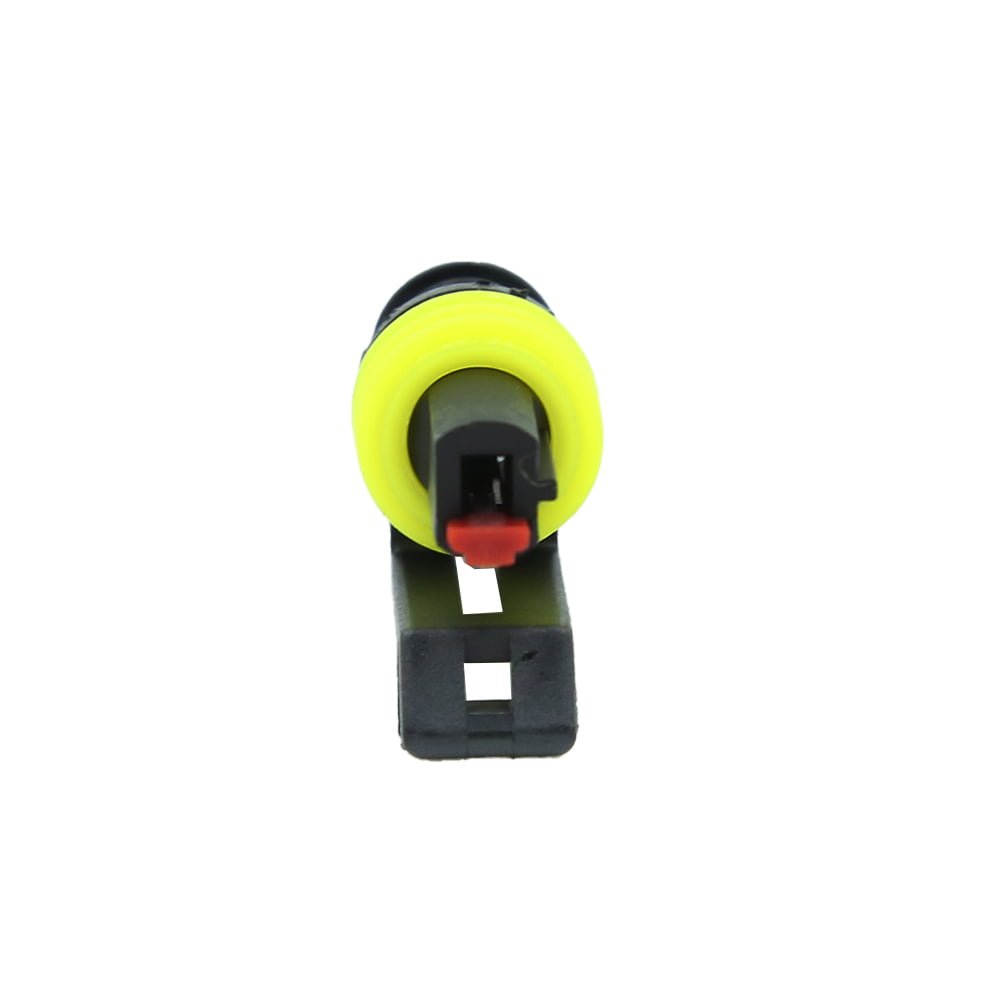

| Product Type Features | Connector Shape : CircularConnector System : Wire-to-Board, Wire-to-Device, Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : Integrated in HousingMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 1Number of Rows : 1
|
|---|
| Electrical Characteristics | Operating Voltage (VDC): 24Nominal Voltage Architecture (V): 12, 24
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : BlackConnector & Keying Code : Neutral
|
|---|
| Contact Features | Contact Type : ReceptacleContact Size : 1.2mmMating Tab Width : 1.2 mm [ .047 in ]Contact Current Rating (Max) (A): 14
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : Polarizing RibStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | |
|---|
| Dimensions | Product Length : 9.3 mm [ .366 in ]Product Width : 9.3 mm [ .366 in ]Connector Height : 29.9 mm [ 1.177 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application : Signal
|
|---|
| Industry Standards | Degree of Protection : IP67
|
|---|
| Packaging Features | Packaging Method : BagPackaging Quantity : 1500
|
|---|
| Other | Connector Position Assurance Capable : NoServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
