282081-1

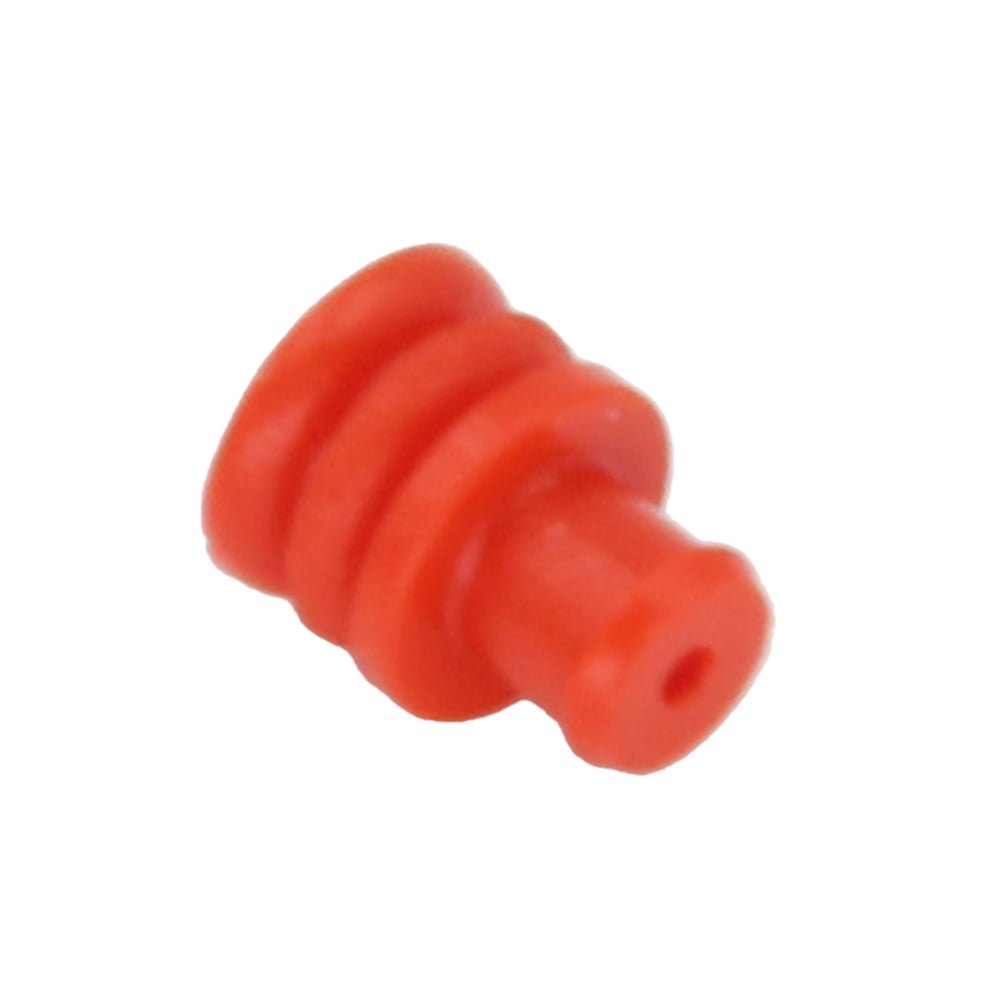

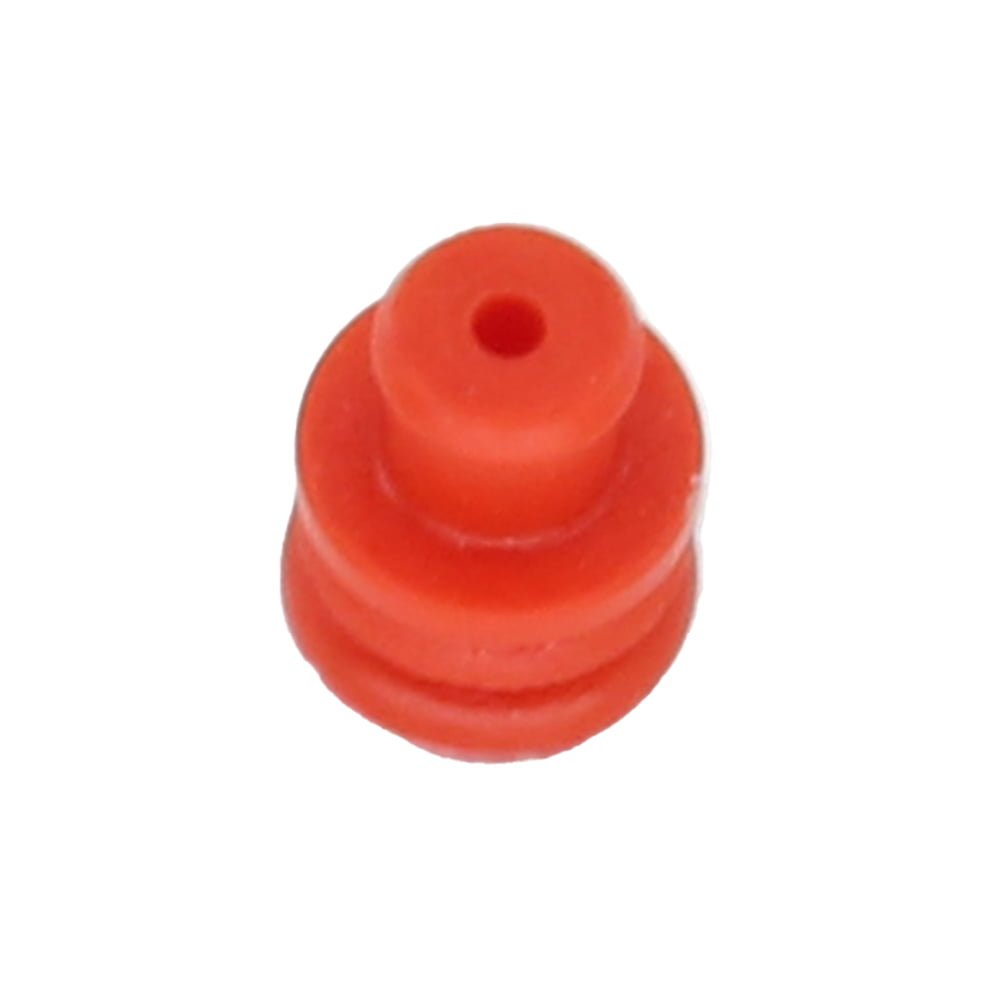

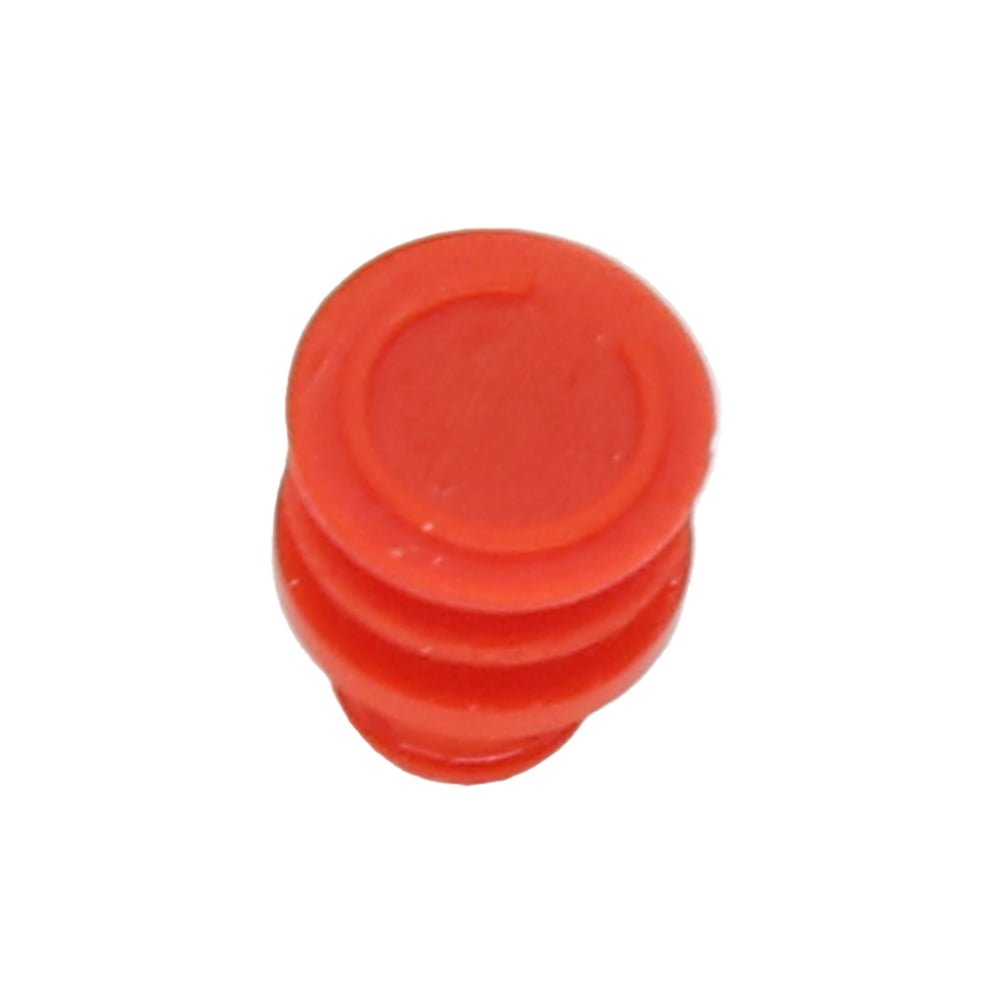

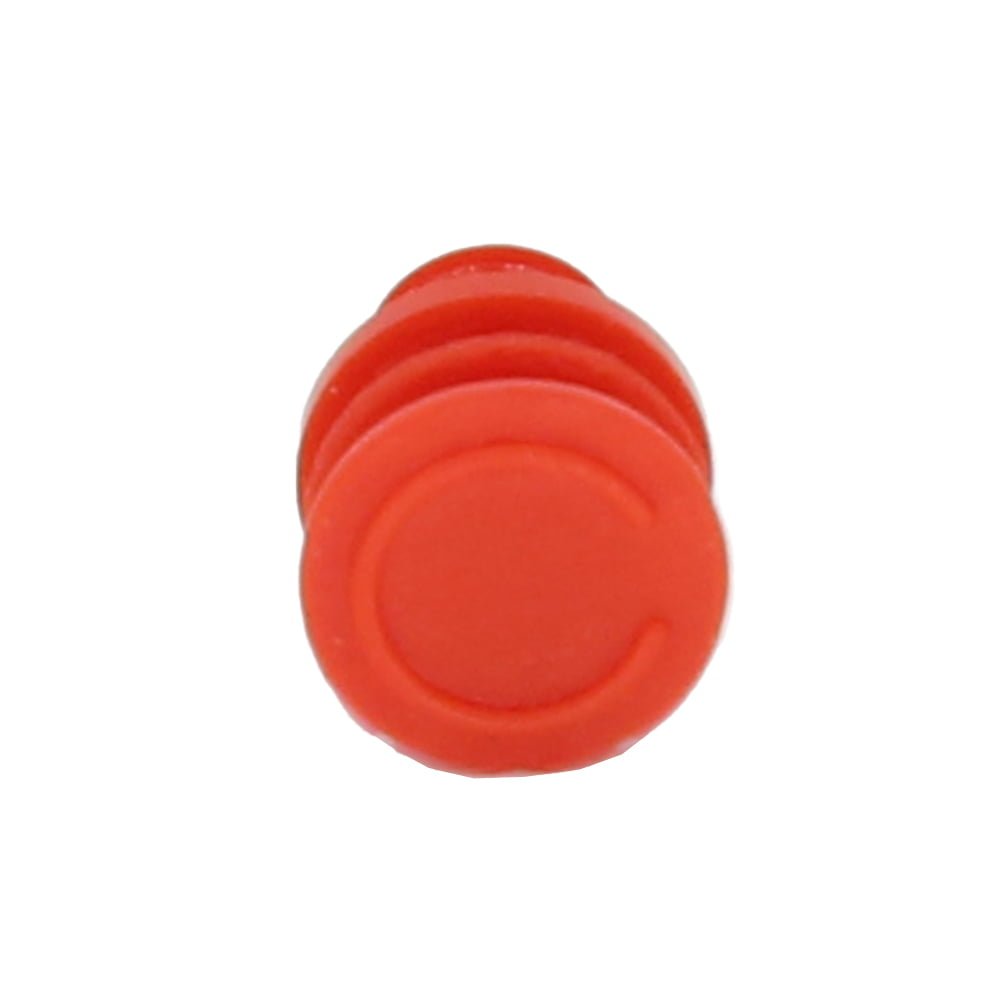

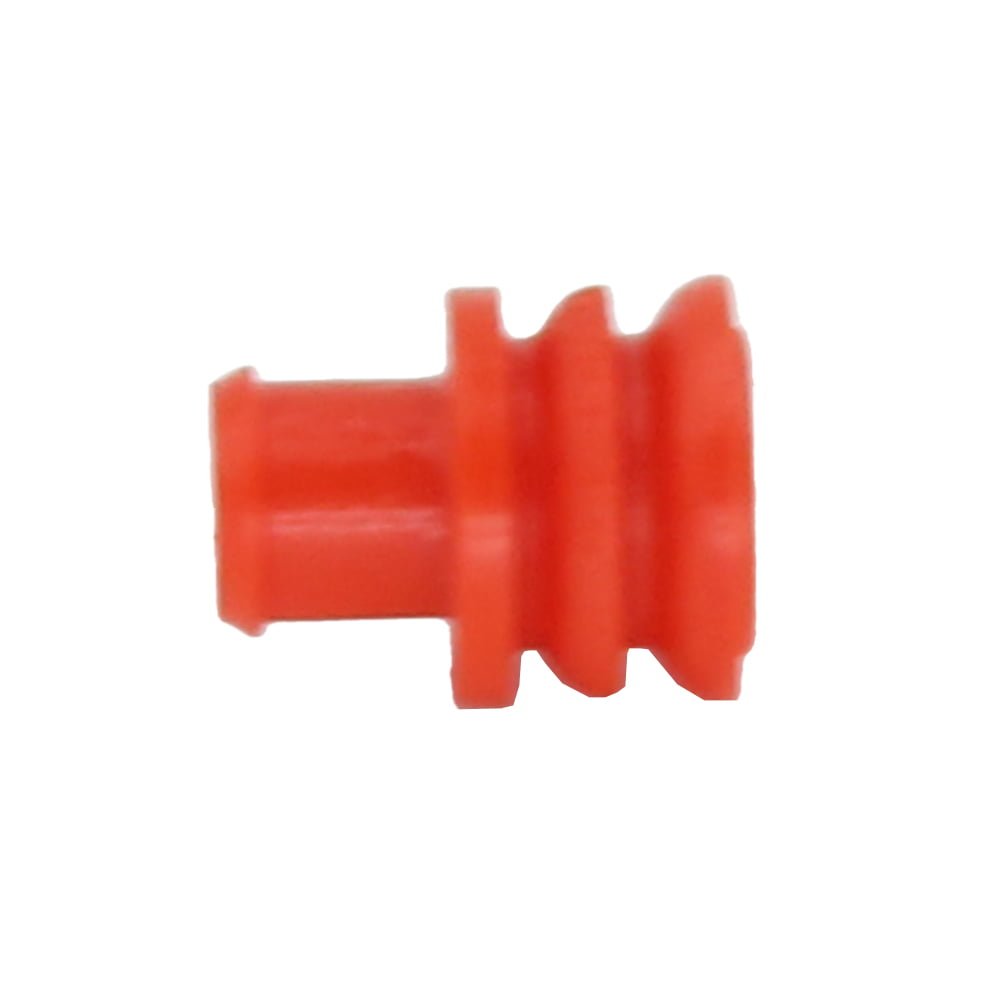

Cavity Blanking Plug, Silicone, Red, 5.5 mm [.217 in] Cavity Diameter, -40 – 130 °C [-40 – 266 °F] Operating Temperature, AMP Superseal 1.5mm Series

Additional information

Connector Seal & Plug Type

Cavity Blanking Plug
Primary Product Material

Silicone
Primary Product Color

Red
Cavity Diameter

5.5 mm [ .217 in ]
Resistance to Hydrocarbons

Poor
Request Sample
Inquire Now
Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features

  • Connector Seal & Plug Type : Cavity Blanking Plug
Body Features

  • Primary Product Material : Silicone

  • Primary Product Color : Red
Dimensions

  • Cavity Diameter : 5.5 mm [ .217 in ]
Usage Conditions

  • Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130

  • Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266

  • Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
Industry Standards

  • UL Flammability Rating : None
Other

  • Resistance to Hydrocarbons : Poor

  • Shore A Hardness : 50

  • Contains Lubricant : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
