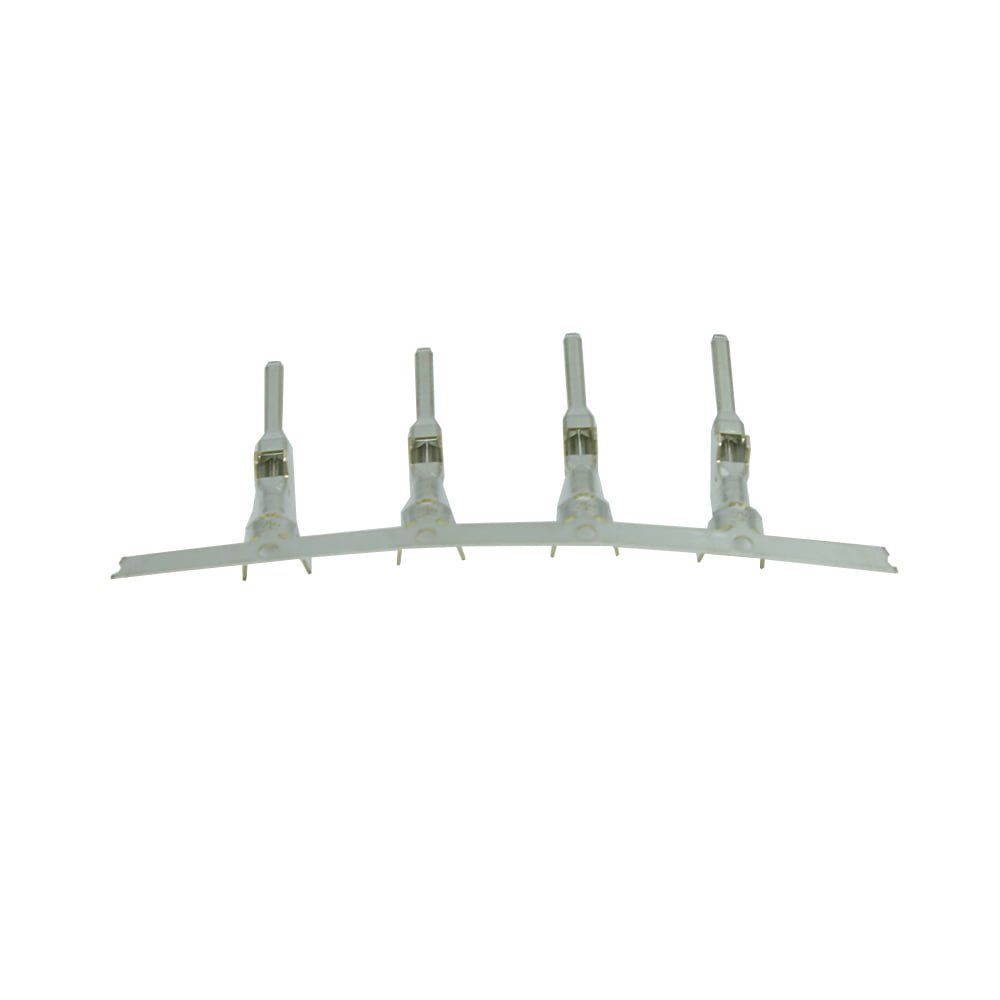

282109-1

Automotive Terminals, Tab, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .8 mm [.031 in], 18 – 15 AWG Wire Size, AMP Superseal 1.5mm Series

Additional information

Terminal Type	Tab
Mating Tab Width	1.5 mm [ .059 in ]
Mating Tab Thickness	.8 mm [ .031 in ]
Terminal Transmits	0 – 24 A (Low Power)
Wire Size (AWG)	18 – 15

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Sealable : Yes Primary Locking Feature : Clean Body
Body Features	Terminal Seal Type : Single Wire Seal (SWS)
Contact Features	Crimp Type : F-Crimp Typical Current Rating (A): 14 Wire Contact Termination Area Plating Material : Tin Contact Fabrication : Stamped & Formed Contact Size : 1.5mm Terminal Type : Tab Mating Tab Width : 1.5 mm [ .059 in ] Mating Tab Thickness : .8 mm [ .031 in ] Interface Plating : Tin (Sn)
Termination Features	Termination Method to Wire & Cable : Crimp Product Terminates To : Wire
Dimensions	Compatible Insulation Diameter Range : 1.7 – 2.4 mm [ .071 – .13 in ] Wire Size (AWG): 18 – 15 Wire Size (mm²): .75 – 1.5 Wire Size Search (mm²): .75, 1, 1.25, 1.5 Wire Size Search (AWG): 15, 16, 17, 18
Usage Conditions	Insulation Option : Uninsulated Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125 Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257 Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Operation/Application	Compatible With Wire Base Material : Copper
Packaging Features	Packaging Method : Reel Packaging Quantity : 4000
Other	Terminal Transmits : 0 – 24 A (Low Power)

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

282109-1

Automotive Terminals, Tab, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .8 mm [.031 in], 18 – 15 AWG Wire Size, AMP Superseal 1.5mm Series

Additional information

Sealable : Yes

Primary Locking Feature : Clean Body

Terminal Seal Type : Single Wire Seal (SWS)

Crimp Type : F-Crimp

Typical Current Rating (A): 14

Wire Contact Termination Area Plating Material : Tin

Contact Fabrication : Stamped & Formed

Contact Size : 1.5mm

Terminal Type : Tab

Mating Tab Width : 1.5 mm [ .059 in ]

Mating Tab Thickness : .8 mm [ .031 in ]

Interface Plating : Tin (Sn)

Termination Method to Wire & Cable : Crimp

Product Terminates To : Wire

Compatible Insulation Diameter Range : 1.7 – 2.4 mm [ .071 – .13 in ]

Wire Size (AWG): 18 – 15

Wire Size (mm²): .75 – 1.5

Wire Size Search (mm²): .75, 1, 1.25, 1.5

Wire Size Search (AWG): 15, 16, 17, 18

Insulation Option : Uninsulated

Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125

Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257

Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Compatible With Wire Base Material : Copper

Packaging Method : Reel

Packaging Quantity : 4000

Terminal Transmits : 0 – 24 A (Low Power)
