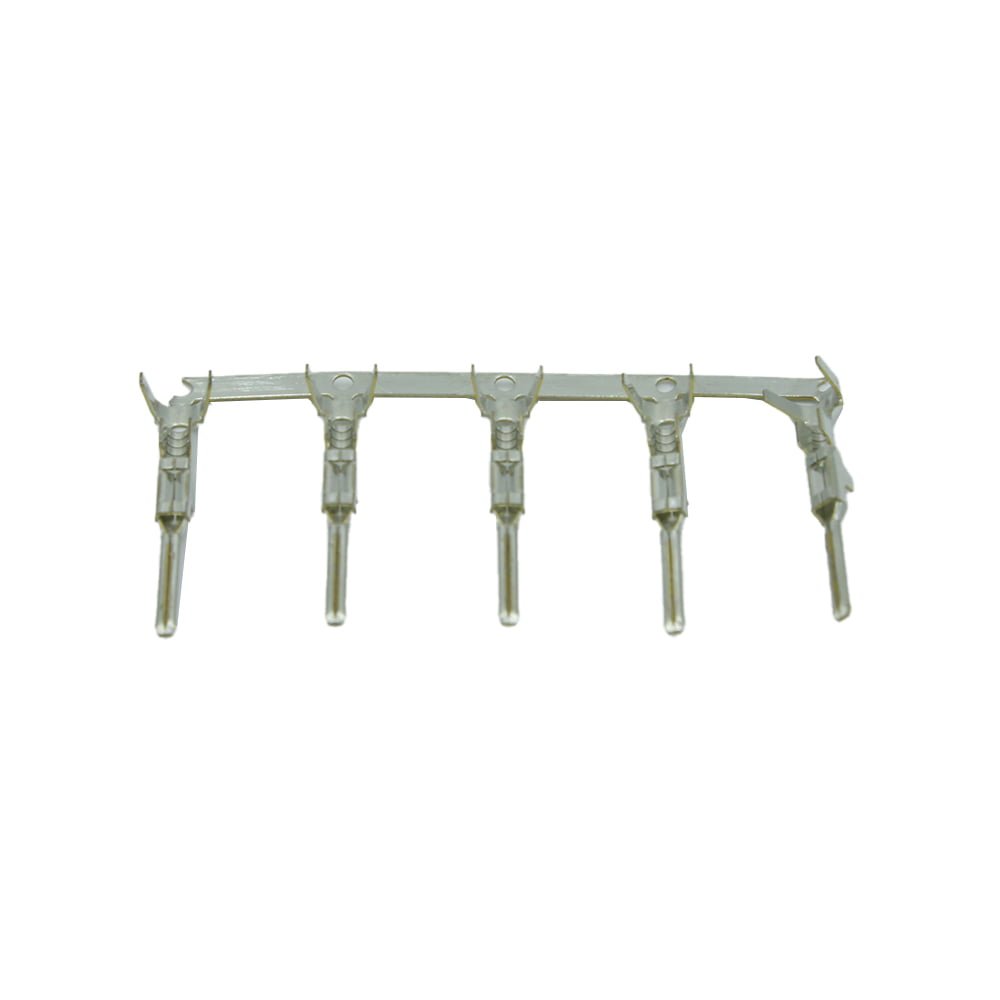

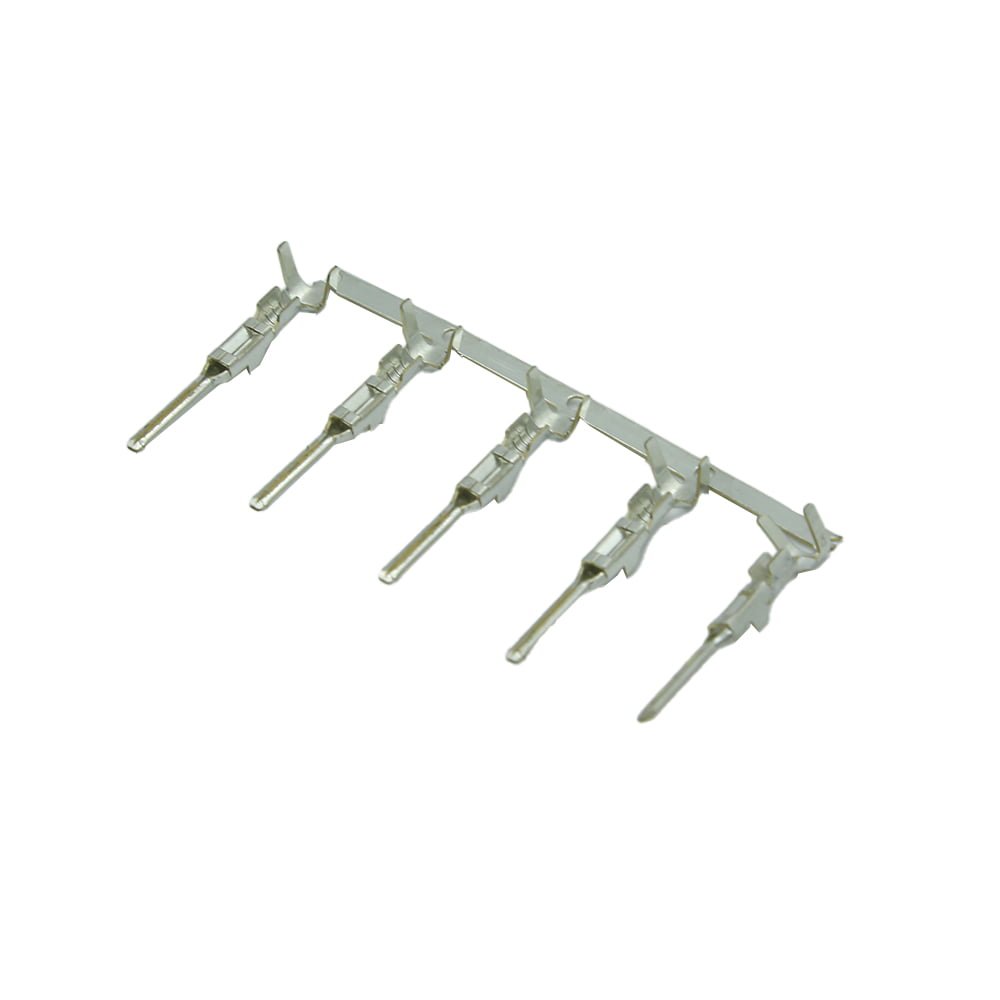

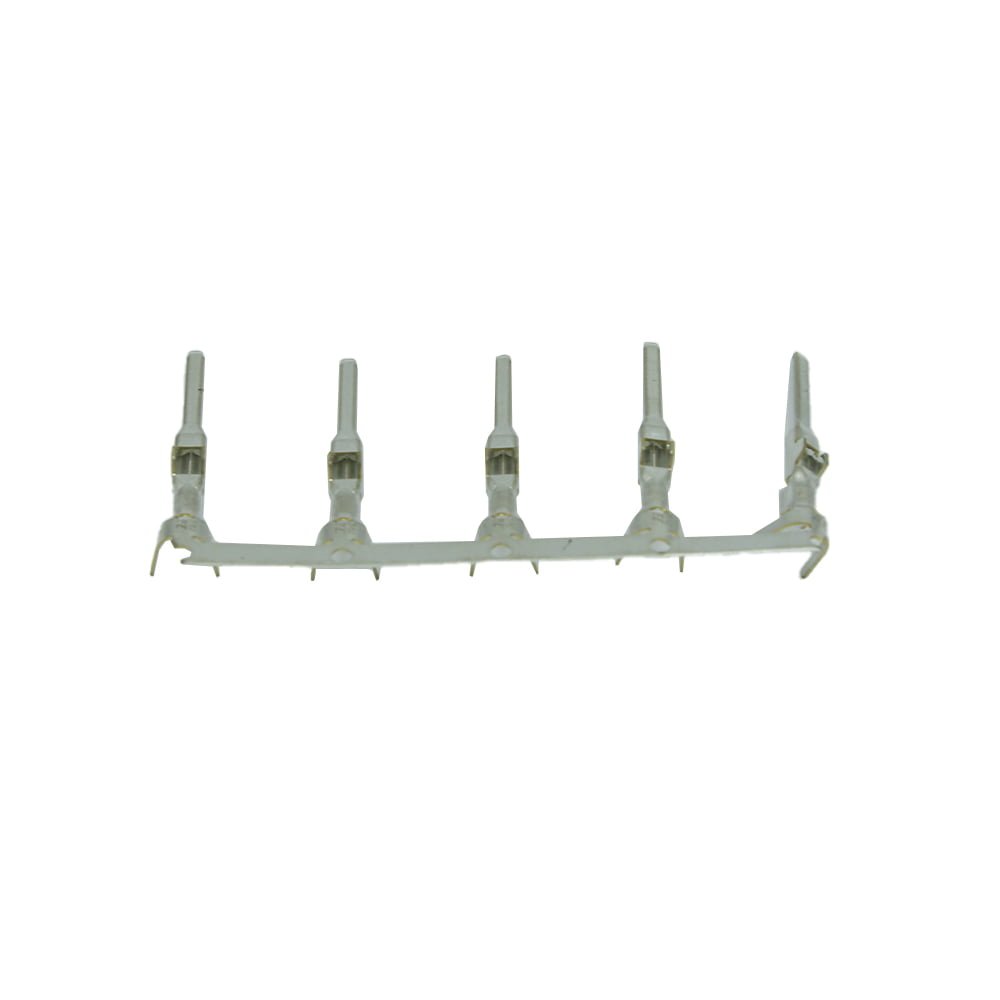

| Product Type Features | Sealable : YesPrimary Locking Feature : Clean Body
|
|---|
| Body Features | Terminal Seal Type : Single Wire Seal (SWS)
|
|---|
| Contact Features | Crimp Type : F-CrimpTypical Current Rating (A): 6Wire Contact Termination Area Plating Material : TinContact Fabrication : Stamped & FormedContact Size : 1.5mmTerminal Type : TabMating Tab Width : 1.5 mm [ .059 in ]Mating Tab Thickness : .8 mm [ .031 in ]Interface Plating : Tin (Sn)
|
|---|
| Termination Features | Termination Method to Wire & Cable : CrimpProduct Terminates To : Wire
|
|---|
| Dimensions | Compatible Insulation Diameter Range : 1.2 – 1.6 mm [ .055 – .067 in ]Wire Size (AWG): 22 – 20Wire Size (mm²): .35 – .5Wire Size Search (mm²): .35, .4, .5Wire Size Search (AWG): 20, 21, 22
|
|---|
| Usage Conditions | Insulation Option : UninsulatedOperating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
|---|
| Operation/Application | Compatible With Wire Base Material : Copper
|
|---|
| Packaging Features | Packaging Method : ReelPackaging Quantity : 4000
|
|---|
| Other | Terminal Transmits : 0 – 24 A (Low Power)
|
|---|
