Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

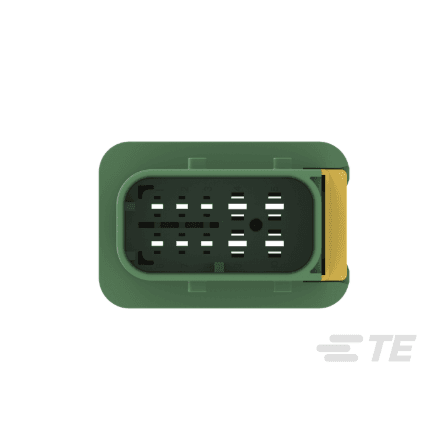

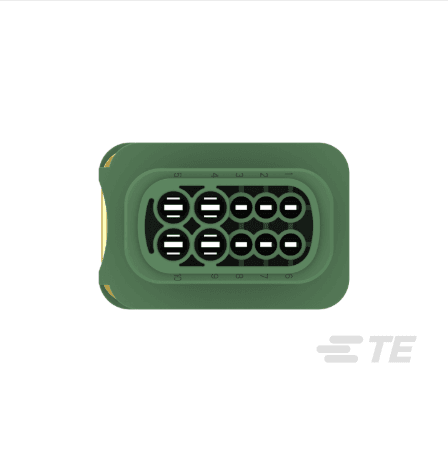

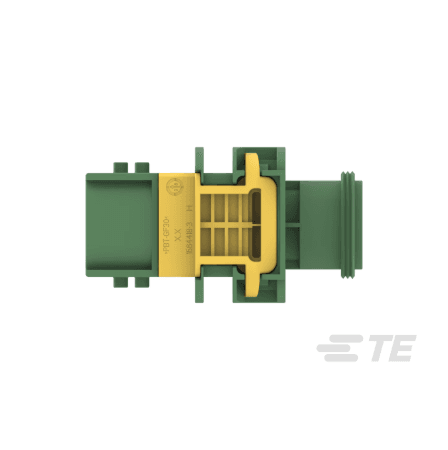

| Configuration Features | Number of Positions : 10Number of Rows : 2
|
|---|
| Product Type Features | Connector Shape : RectangularMixed & Hybrid Connector : YesConnector & Housing Type : Housing for Male TerminalsConnector System : Wire-to-WireSealable : YesPrimary Locking Feature : On the TerminalConnector & Contact Terminates To : Wire & Cable
|
|---|
| Contact Features | Contact Type : TabContact Size : 1.6mm, 2.8mmMating Tab Width (mm): 1.6, 2.8Mating Tab Width (in): .063, .11Contact Current Rating (Max) (A): 10, 30
|
|---|
| Other | Serviceable : YesConnector Position Assurance Capable : No
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedTerminal Position Assurance : NoStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)
|
|---|
| Packaging Features | Packaging Method : BoxPackaging Quantity : 280
|
|---|
| Dimensions | Connector Height : 48.1 mm [ 1.894 in ]Product Length : 40.6 mm [ 1.598 in ]Product Width : 27 mm [ 1.063 in ]Row-to-Row Spacing : 2.54 mm [ .1 in ]
|
|---|
| Body Features | Cable Exit Angle : 180°, 90°Primary Product Color : GreenConnector & Keying Code : C
|
|---|
| Housing Features | Housing Material : PBT GF30Centerline (Pitch) (mm): 4, 6Centerline (Pitch) (in): .157, .236
|
|---|
| Electrical Characteristics | Operating Voltage (VDC): 60Nominal Voltage Architecture (V): 12, 24, 42, 60
|
|---|
| Industry Standards | UL Flammability Rating : UL 94V-0IP Rating : IP67
|
|---|
| Usage Conditions | Operating Temperature (Max) : 140 °C [ 284 °F ]Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
|
|---|
| Operation/Application | Circuit Application : Power
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
