Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

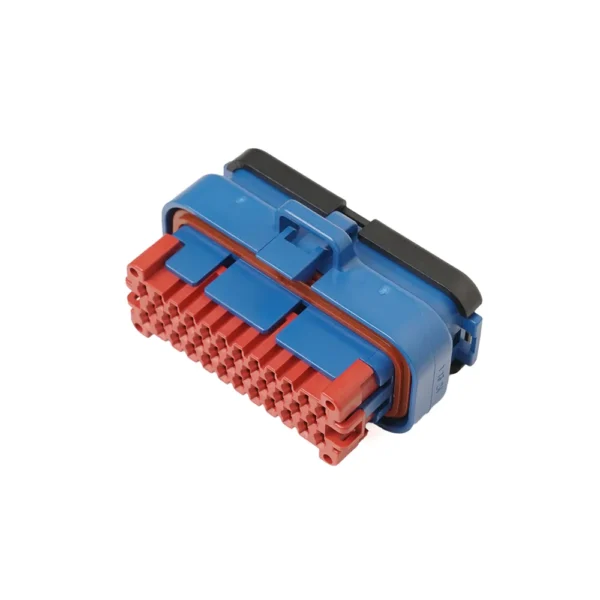

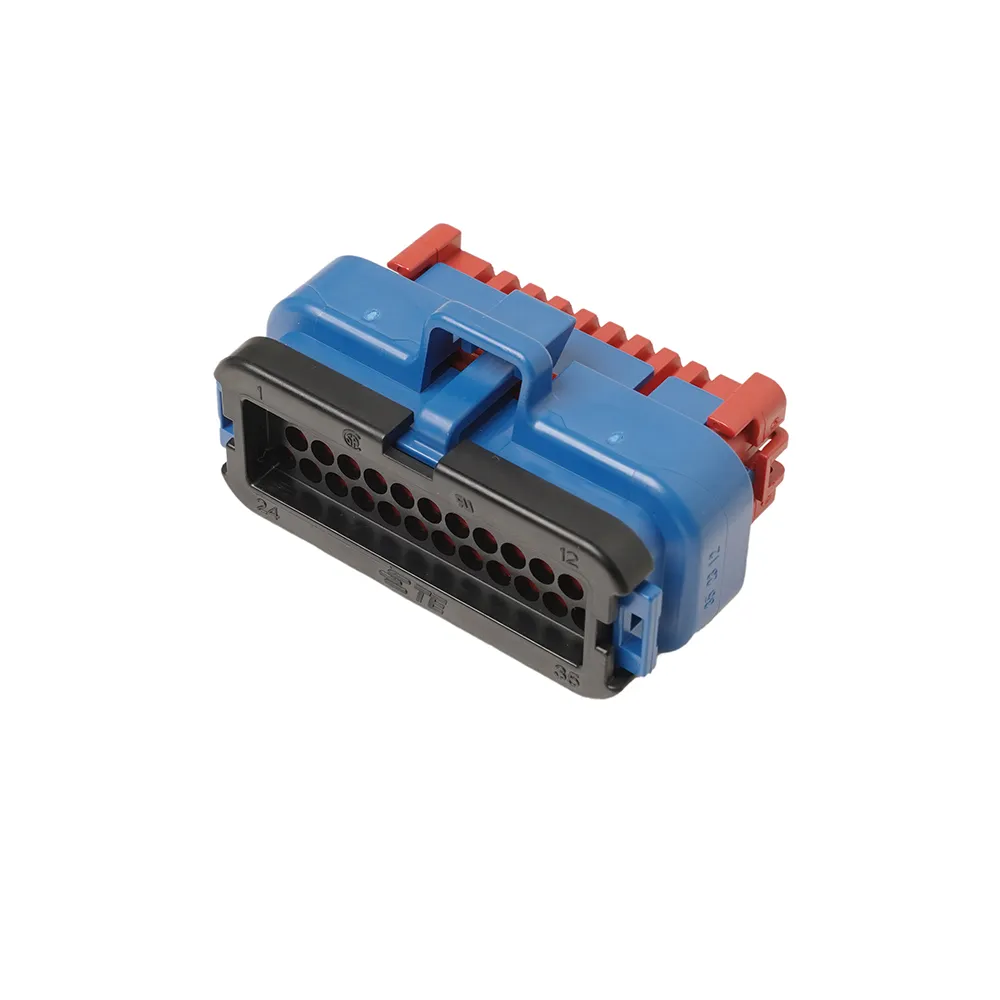

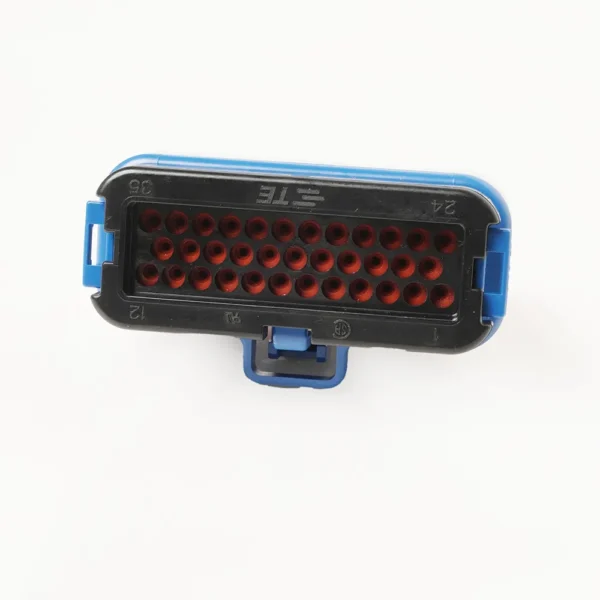

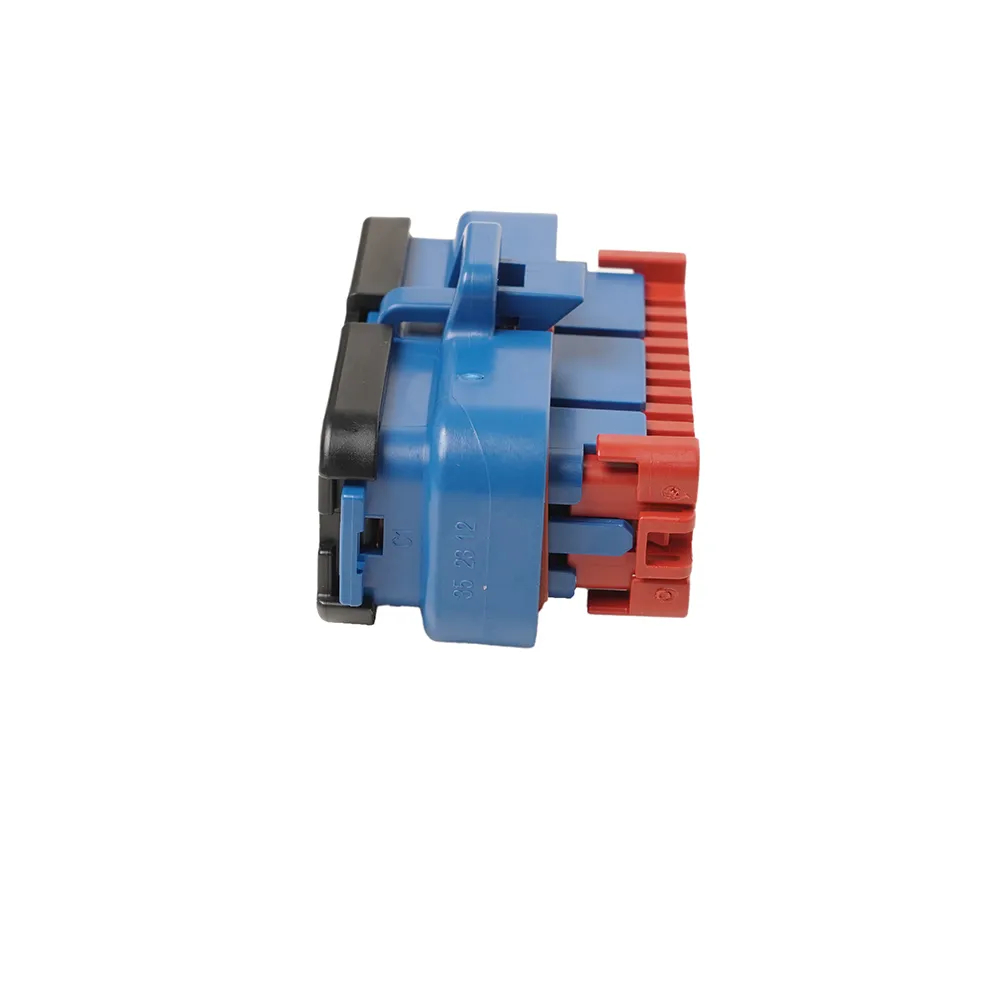

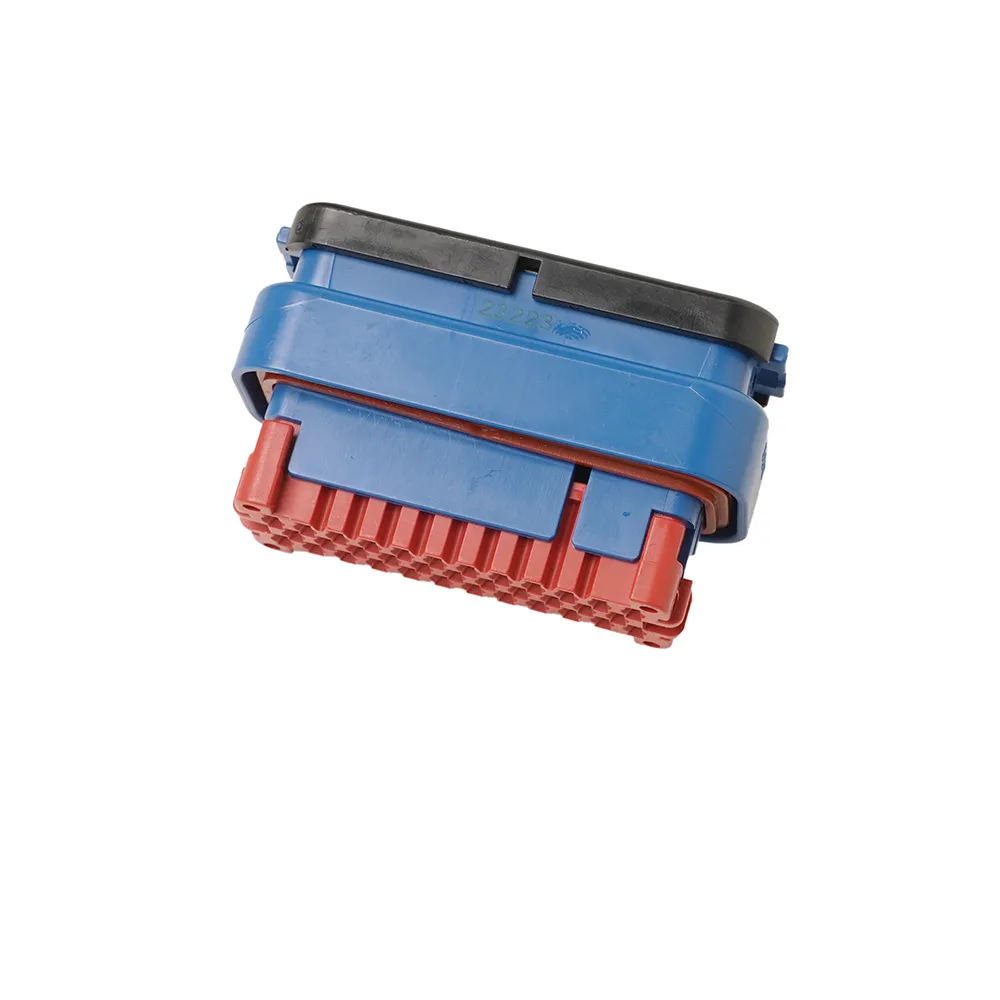

| Product Type Features | Connector Shape :RectangularConnector System :Wire-to-BoardConnector & Housing Type :Housing for Female TerminalsSealable :YesPrimary Locking Feature :Integrated in HousingMixed & Hybrid Connector :No
|
|---|
| Configuration Features | Number of Positions :35Number of Rows :3
|
|---|
| Electrical Characteristics | Operating Voltage (VAC):250Nominal Voltage Architecture (V):250
|
|---|
| Body Features | Cable Exit Angle :180°Primary Product Color :BlueConnector & Keying Code :5
|
|---|
| Contact Features | Contact Type :SocketContact Size :1.3mmMating Pin Diameter :1.3 mm [ .051 in ]Contact Current Rating (Max) (A):17
|
|---|
| Mechanical Attachment | Mating Alignment :WithMating Alignment Type :KeyedStrain Relief :Add By AccessoryConnector Mounting Type :Cable Mount (Free-Hanging)Terminal Position Assurance :Yes
|
|---|
| Housing Features | Housing Material :PBT GFCenterline (Pitch) :4 mm [ .157 in ]
|
|---|
| Dimensions | Row-to-Row Spacing :4 mm [ .157 in ]Product Length :63.4 mm [ 2.496 in ]Product Width :33.6 mm [ 1.323 in ]Connector Height :34.6 mm [ 1.362 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) :125 °C [ 257 °F ]Operating Temperature Range :-40 – 125 °C [ -40 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application :Power & Signal
|
|---|
| Industry Standards | UL Flammability Rating :UL 94V-0Degree of Protection :IP67, IP69K
|
|---|
| Packaging Features | Packaging Method :Box & TrayPackaging Quantity :140
|
|---|
| Other | Connector Position Assurance Capable :YesServiceable :Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
