Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

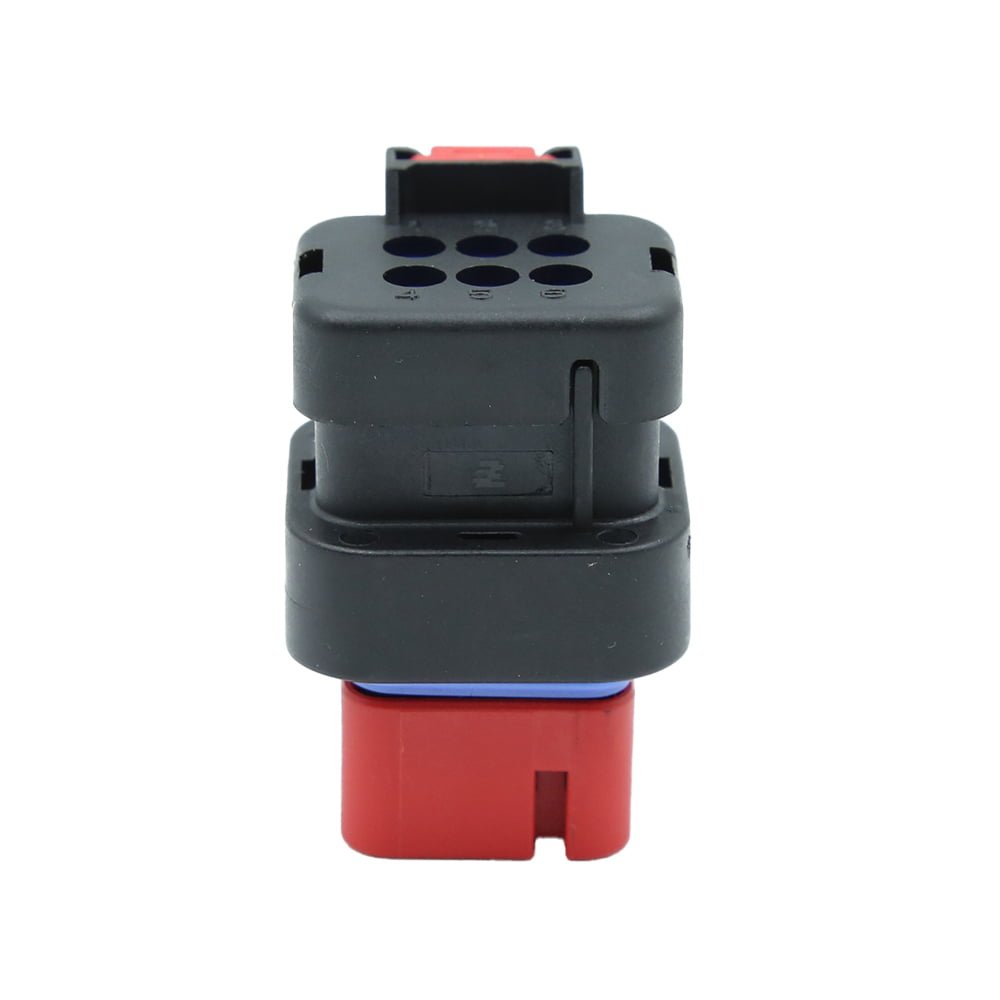

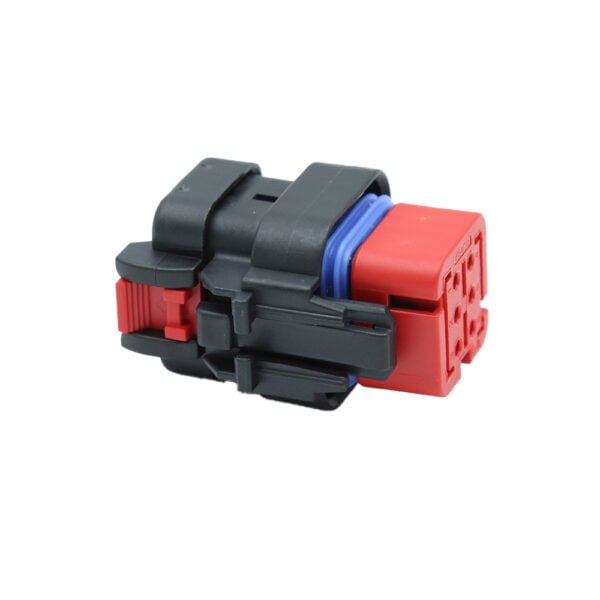

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : Integrated in HousingMixed & Hybrid Connector : No
|

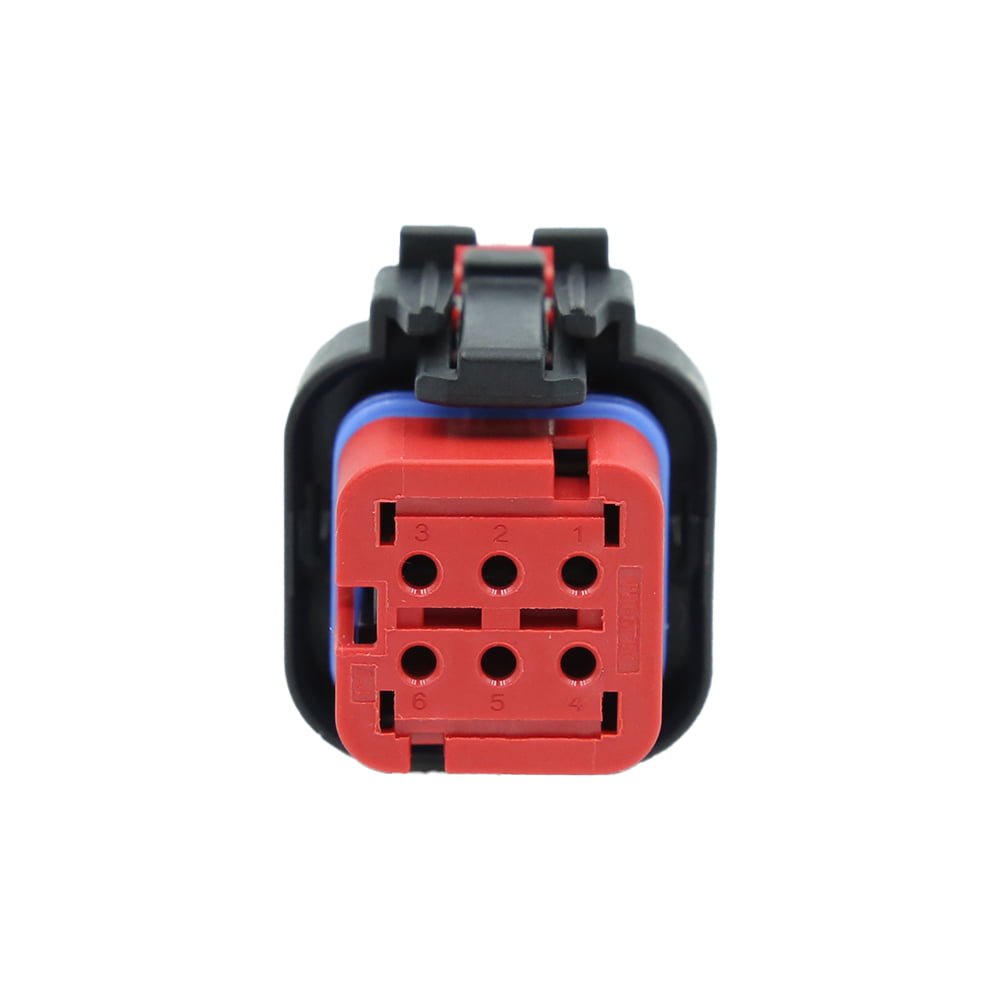

|---|
| Configuration Features | Number of Positions : 6Number of Rows : 2
|
|---|
| Electrical Characteristics | Operating Voltage (VDC): 250
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : BlackConnector & Keying Code : A
|
|---|
| Contact Features | Contact Type : SocketContact Size : Size 16Mating Pin Diameter : 1.5 mm [ .062 in ]Contact Current Rating (Max) (A): 13
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PBT GFCenterline (Pitch) : 4.5 mm [ .177 in ]
|
|---|
| Dimensions | Wire Size (mm²): .5 – 2Wire Size (AWG): 20 – 14Compatible Insulation Diameter Range : 1.3 – 3.3 mm [ .051 – .131 in ]Row-to-Row Spacing : 5.3 mm [ .209 in ]Product Length : 25.3 mm [ .997 in ]Product Width : 36.6 mm [ 1.44 in ]Connector Height : 31 mm [ 1.22 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 125 °C [ 257 °F ]Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application : Power
|
|---|
| Industry Standards | UL Flammability Rating : UL 94HBDegree of Protection : IP67
|
|---|
| Packaging Features | Packaging Method : TubePackaging Quantity : 22
|
|---|
| Other | Connector Position Assurance Capable : YesServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
