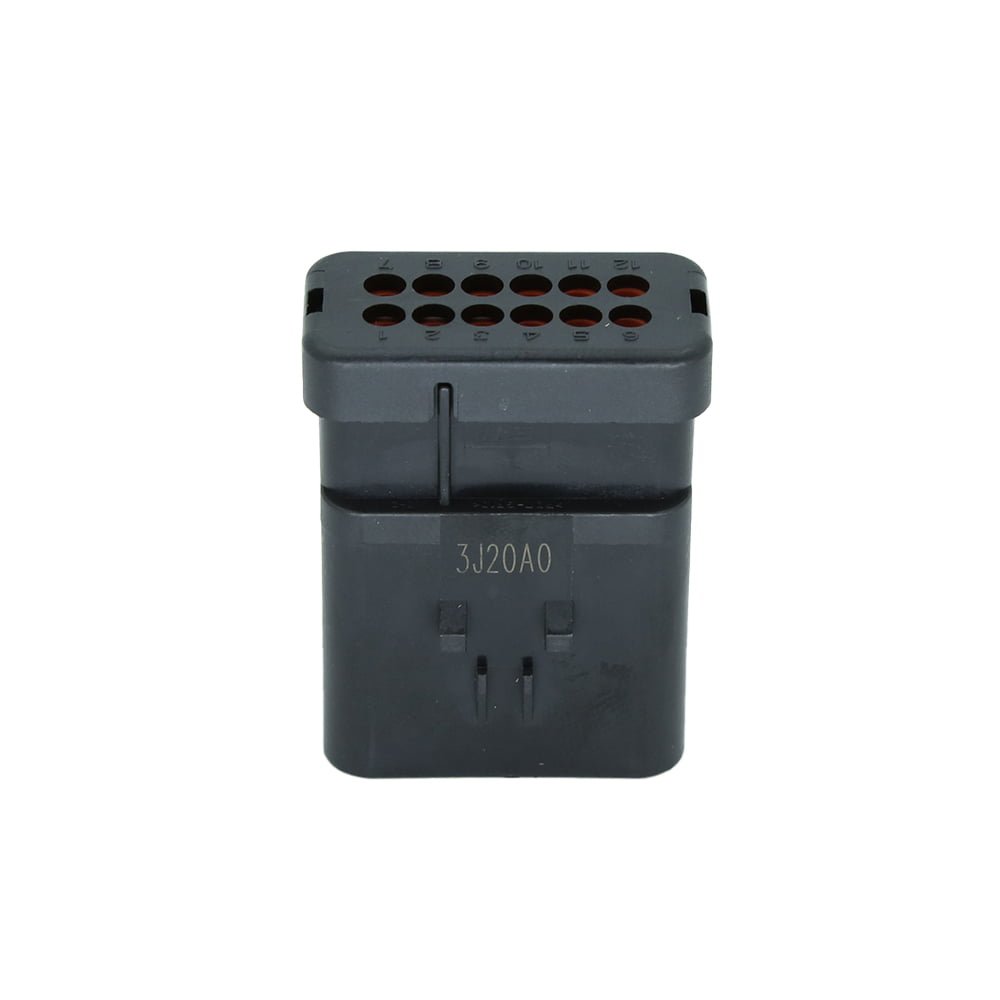

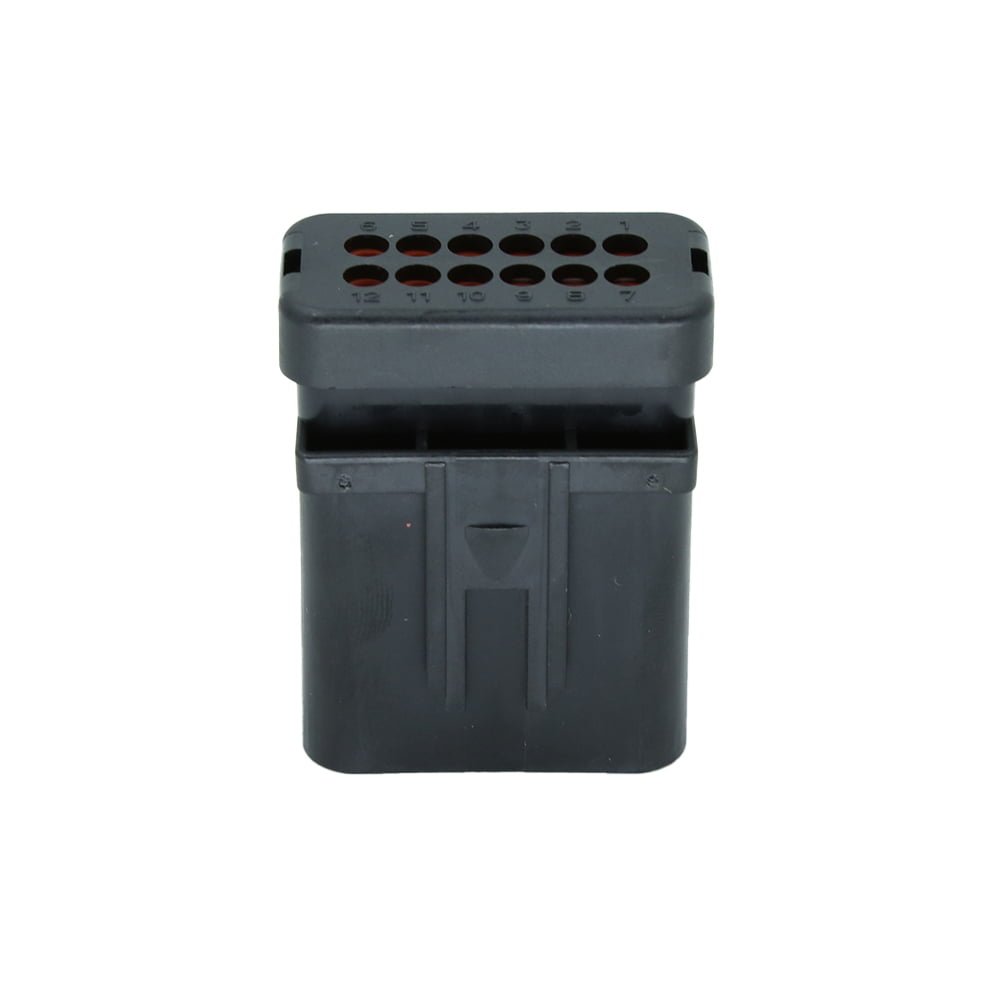

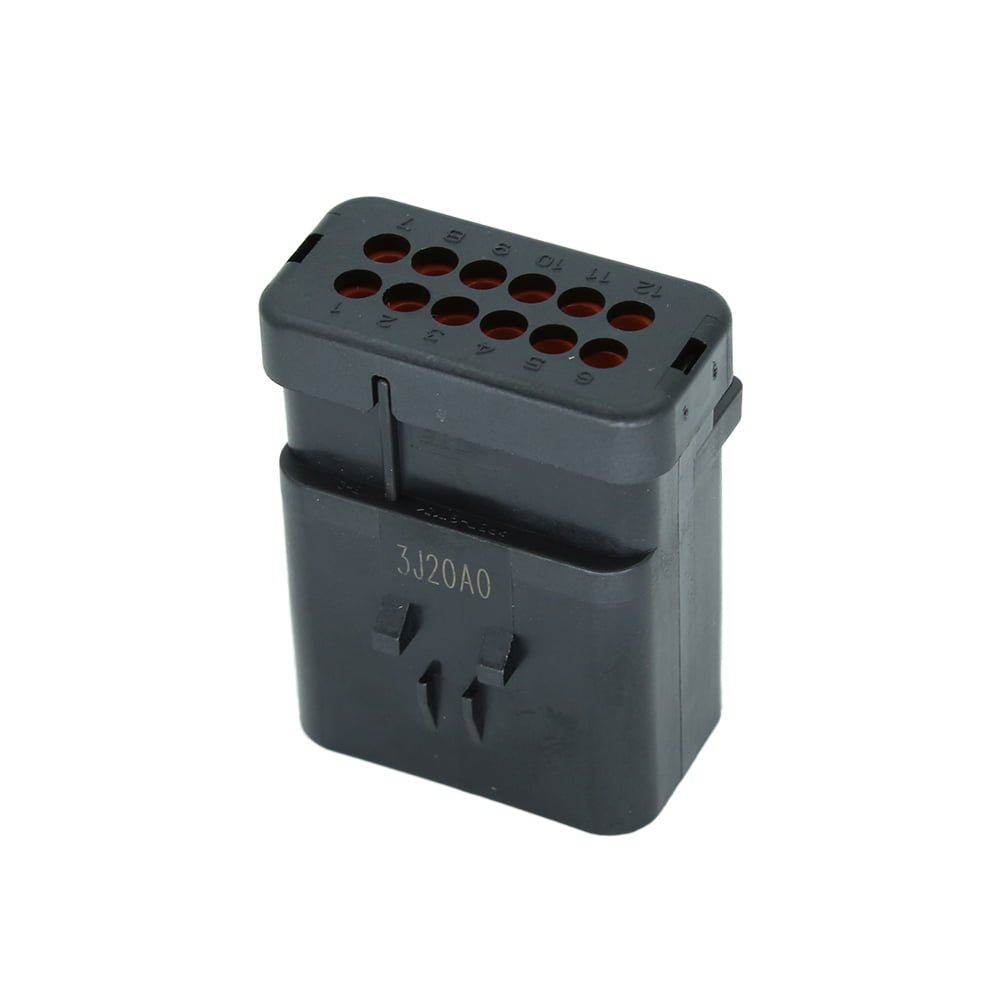

| Product Type Features |
-
Connector Shape : Rectangular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Cap
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : Integrated in Housing
-
Mixed & Hybrid Connector : No
|

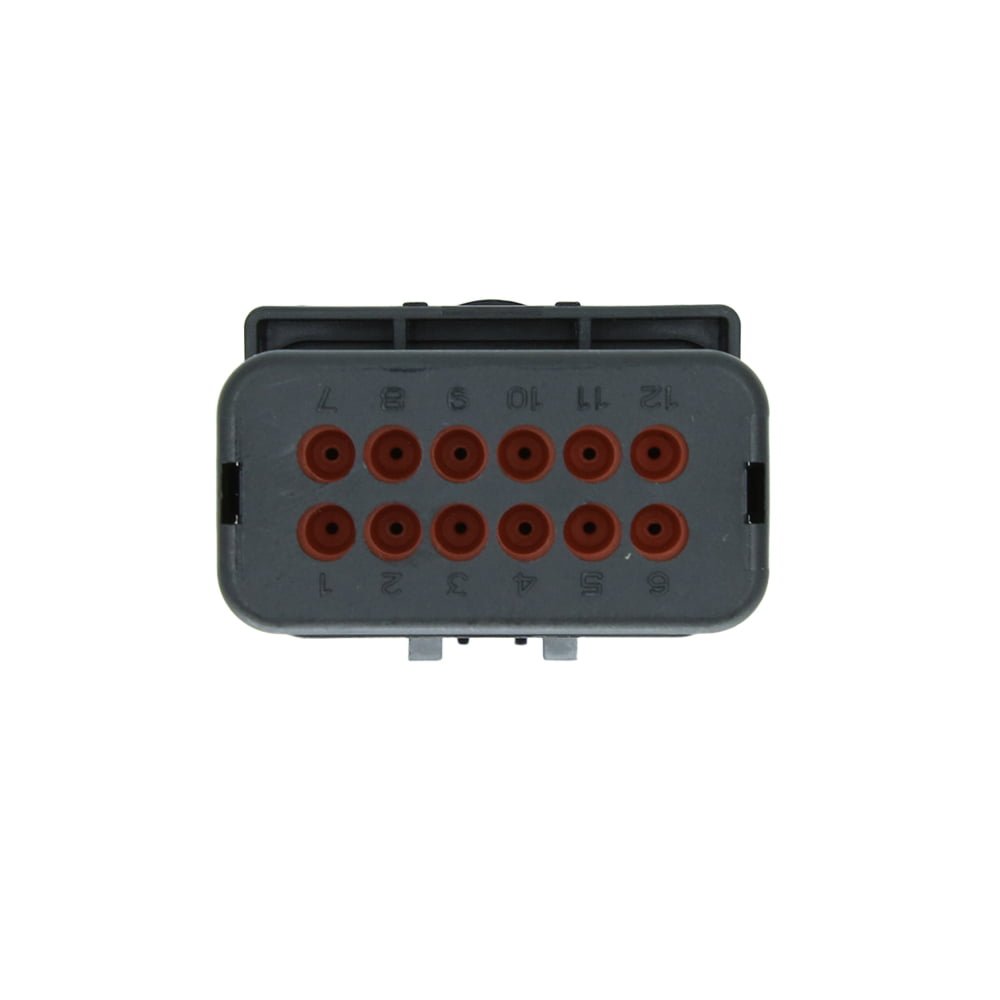

| Configuration Features |
-
Number of Positions : 12
-
Number of Rows : 2
|
| Electrical Characteristics |
-
Operating Voltage (VDC): 250
|
| Body Features |
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
-
Connector & Keying Code : A
|
| Contact Features |
-
Contact Type : Pin
-
Contact Size : 1.5mm
-
Mating Pin Diameter : 1.5 mm [ .06 in ]
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Strain Relief : Add By Accessory
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : Yes
|
| Housing Features |
-
Housing Material : PBT GF
-
Centerline (Pitch) : 4.5 mm [ .177 in ]
|
| Dimensions |
-
Row-to-Row Spacing : 5.3 mm [ .209 in ]
-
Product Length : 37.6 mm [ 1.48 in ]
-
Product Width : 47.55 mm [ 1.872 in ]
-
Connector Height : 26.65 mm [ 1.049 in ]
|
| Usage Conditions |
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
| Industry Standards |
-
UL Flammability Rating : UL 94HB
-
Degree of Protection : IP67
|
| Packaging Features |
-
Packaging Method : Bag
-
Packaging Quantity : 1
|
| Other |
-
Connector Position Assurance Capable : Yes
-
Serviceable : Yes
|
