Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.
| Product Type Features |
-

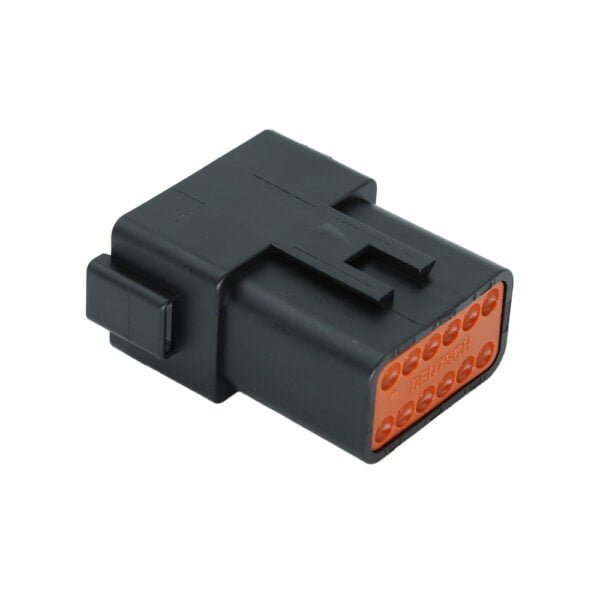

Connector Shape : Rectangular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Housing for Male Terminals
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : Integrated in Housing
-
Mixed & Hybrid Connector : No
|
| Configuration Features |
-
Number of Positions : 12
-
Number of Rows : 2
-
Blank Cavity Position : 0
|
| Electrical Characteristics |
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Nominal Voltage Architecture (V): 250
|
| Body Features |
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
-
Connector & Keying Code : A
|
| Contact Features |
-
Contact Type : Pin
-
Contact Size : Size 16
-
Mating Pin Diameter : 1.59 mm [ .063 in ]
-
Contact Current Rating (Max) (A): 13
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Strain Relief : Add By Accessory
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : Yes
|
| Housing Features |
-
Housing Material : PA GF
-
Centerline (Pitch) : 4.44 mm [ .175 in ]
|
| Dimensions |
-
Compatible Insulation Diameter Range : 2.23 – 3.68 mm [ .088 – .145 in ]
-
Row-to-Row Spacing : 4.45 mm [ .175 in ]
-
Product Length : 45.92 mm [ 1.808 in ]
-
Product Width : 40.56 mm [ 1.597 in ]
-
Connector Height : 22.25 mm [ .876 in ]
|
| Usage Conditions |
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
| Industry Standards |
-
UL Flammability Rating : 12mm Flame Test per Standard UL-94
-
Compatible With Agency/Standards Products : SAE J2030
-
Degree of Protection : IP68, IP6K9K
|
| Packaging Features |
-
Packaging Method : Box
-
Packaging Quantity : 250
|
| Other |
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
