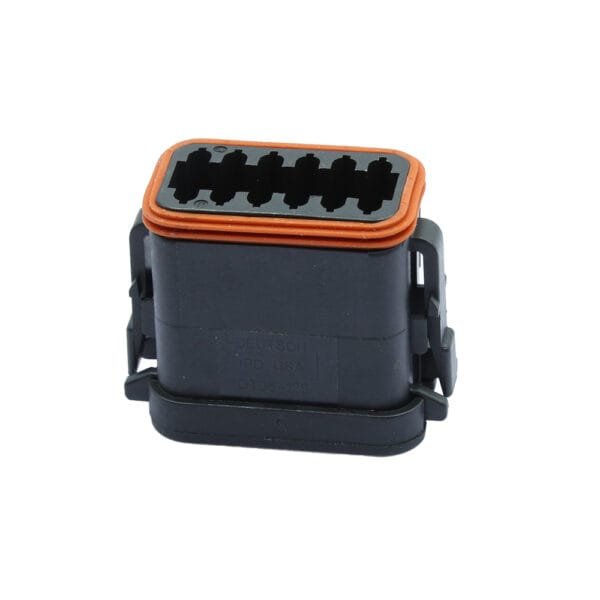

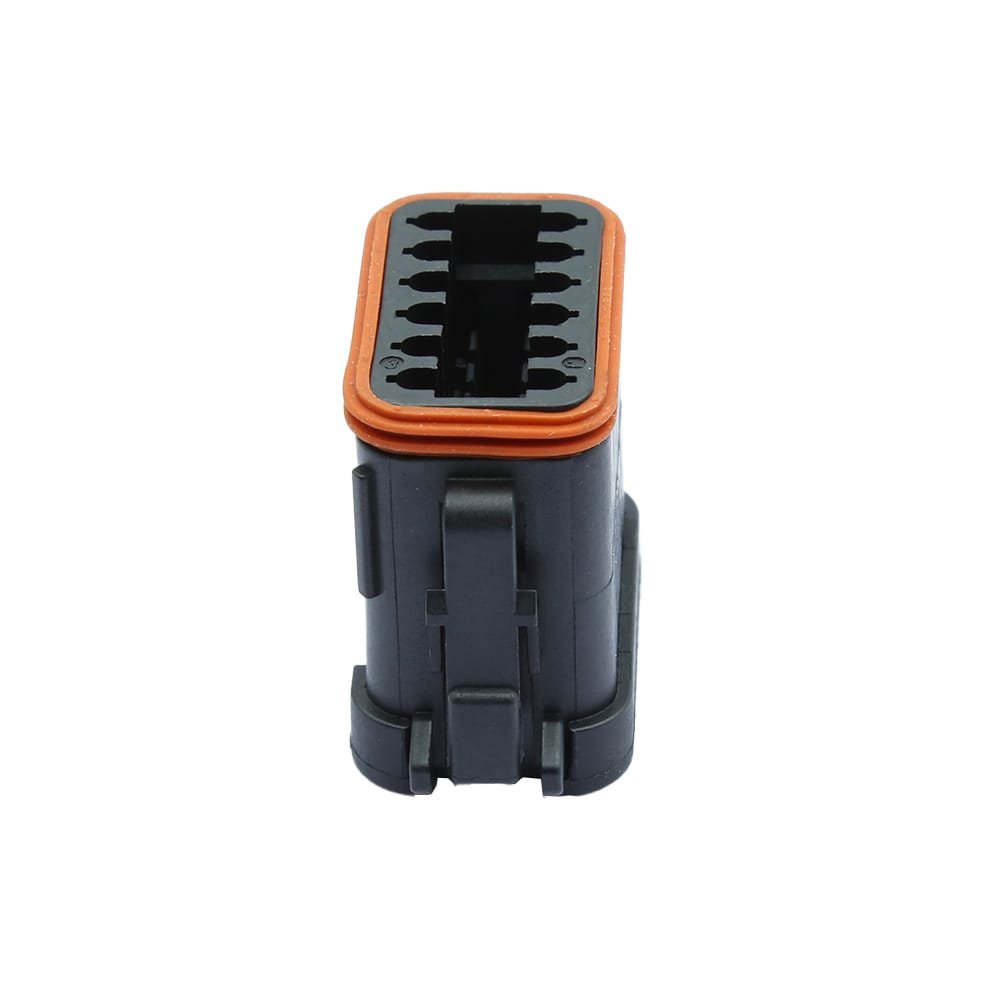

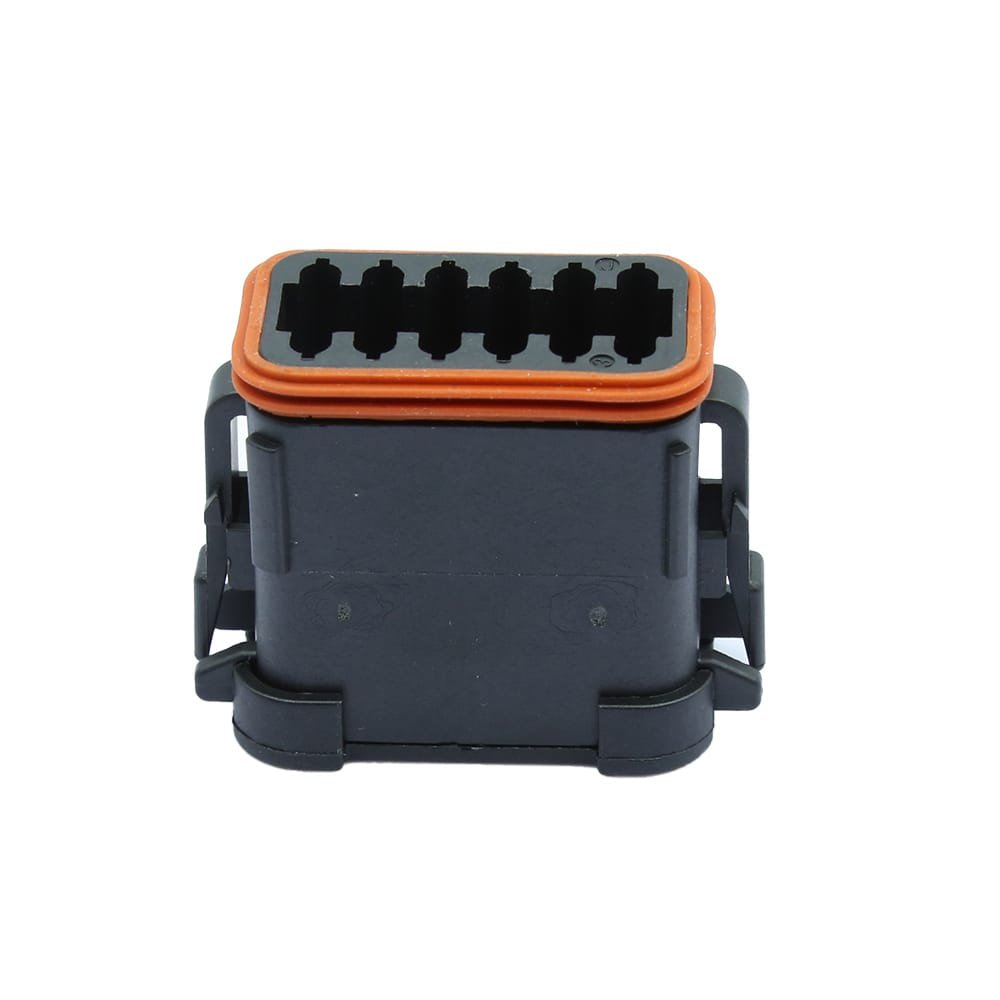

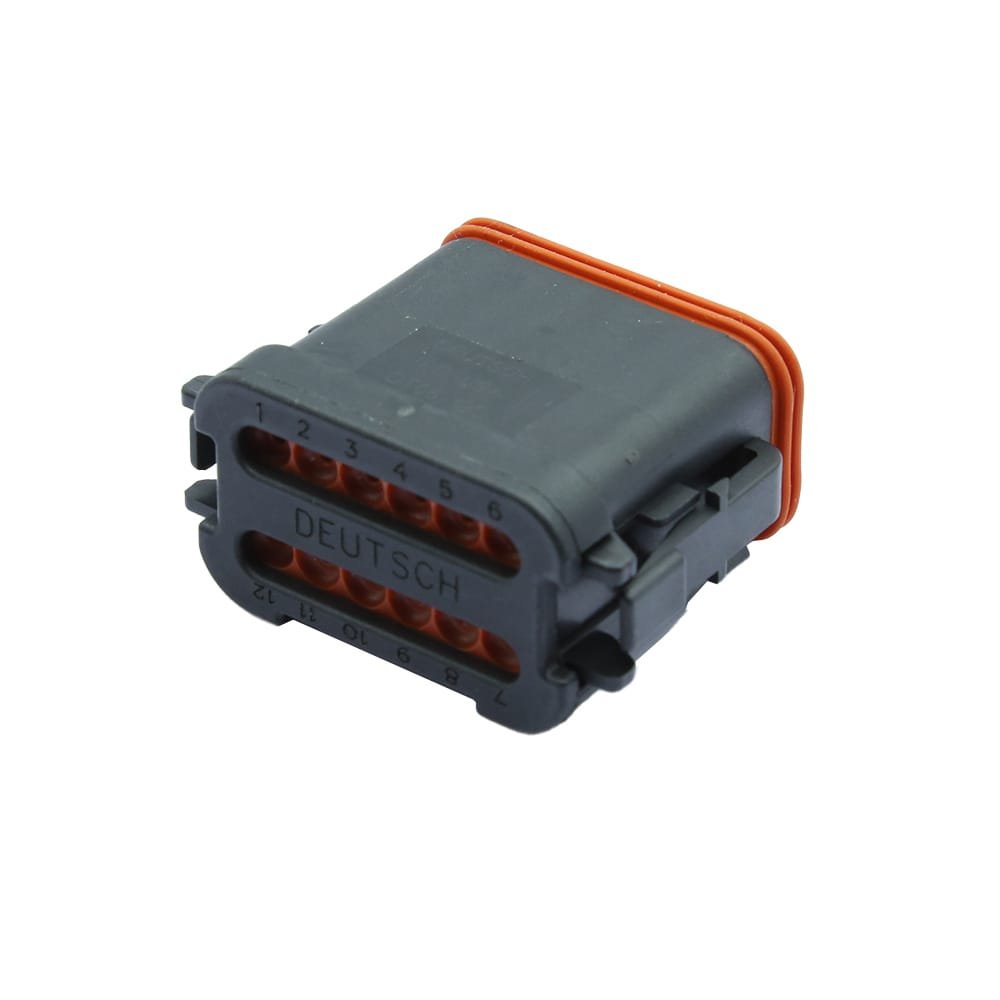

| Product Type Features | Connector Shape :Rectangular
Mixed & Hybrid Connector :No
Connector & Housing Type :Housing for Female Terminals
Connector System :Wire-to-Wire
Primary Locking Feature :Integrated in Housing
Connector & Contact Terminates To :Wire & Cable
|
|---|
| Configuration Features | Connector Modification :End Cap
|
|---|
| Electrical Characteristics | Operating Voltage (VDC):250
Operating Voltage (VAC):250
Nominal Voltage Architecture (V):12, 24, 48
|
|---|
| Body Features | Primary Product Color :BlackConnector & Keying Code :A
|
|---|
| Contact Features | Mating Pin Diameter :1.59 mm [ .063 in ]
Contact Current Rating (Max) (A):13
|
|---|
| Mechanical Attachment | Mating Alignment Type :Keyed
Terminal Position Assurance :Yes
Strain Relief :Add By Accessory
Connector Mounting Type :Cable Mount (Free-Hanging)
|
|---|
| Housing Features | Centerline (Pitch) :4.44 mm [ .175 in ]
|
|---|
| Dimensions | Connector Height :40.56 mm [ 1.597 in ]
Product Length :32.21 mm [ 1.268 in ]
Product Width :20.83 mm [ .82 in ]
Compatible Insulation Diameter Range :2.23 – 3.68 mm [ .088 – .145 in ]
Row-to-Row Spacing :9.12 mm [ .359 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) :125 °C [ 257 °F ]
Operating Temperature Range :-55 – 125 °C [ -67 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application :Power
|
|---|
| Industry Standards | UL Flammability Rating :12mm Flame Test per Standard UL-94
Compatible With Agency/Standards Products :SAE J2030
|
|---|
| Packaging Features | |
|---|
| Other | Connector Position Assurance Capable :No
|
|---|
