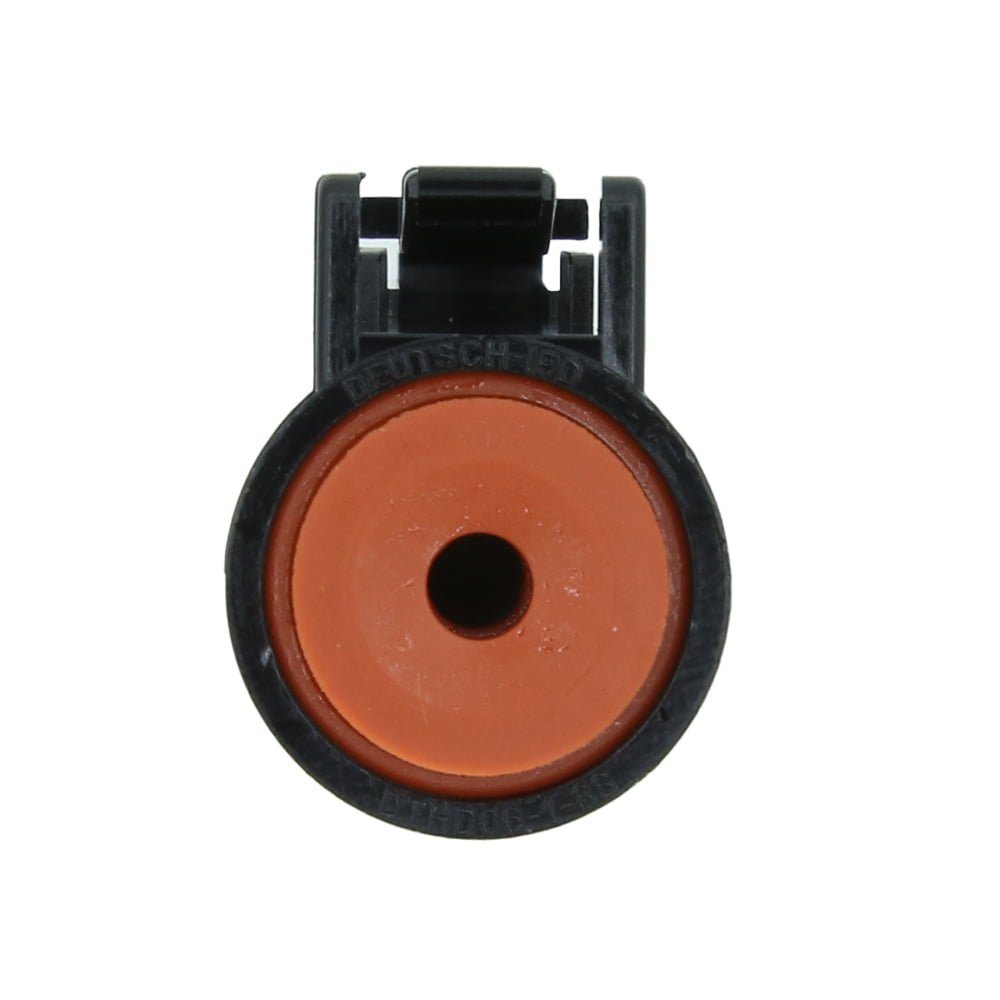

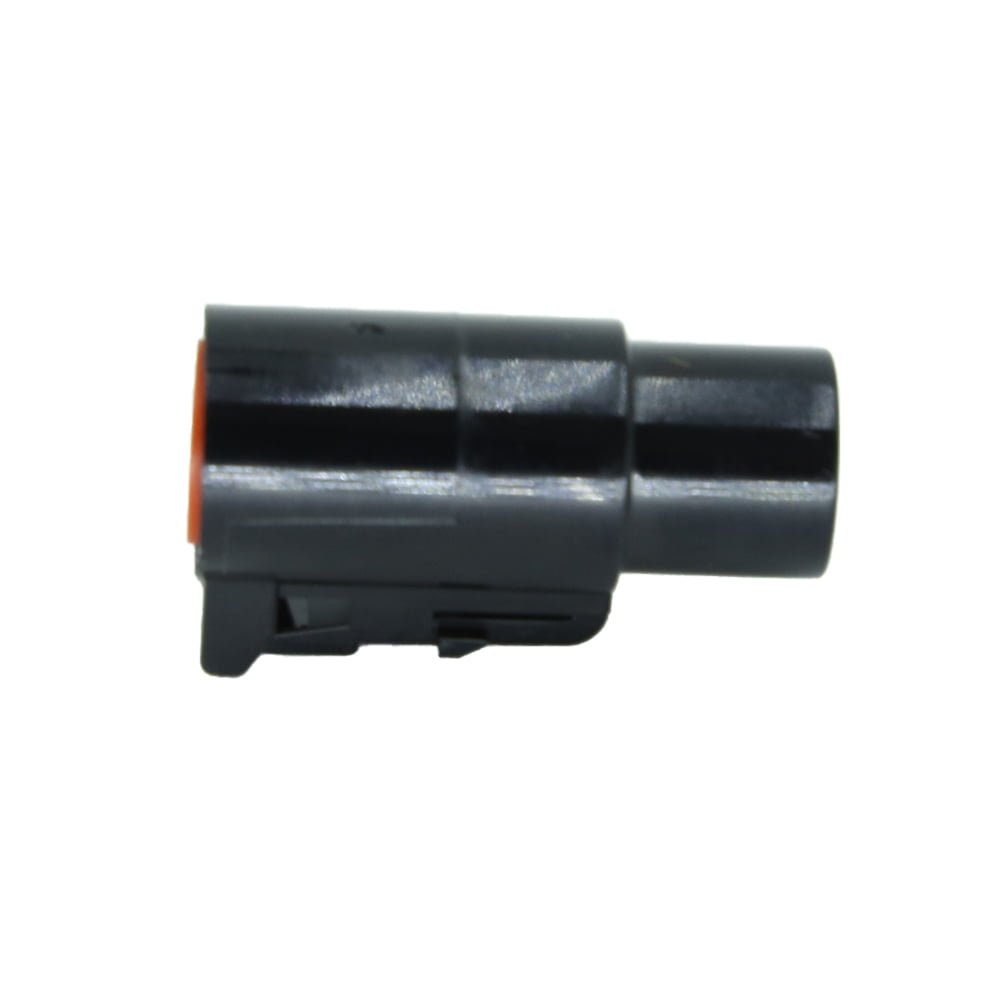

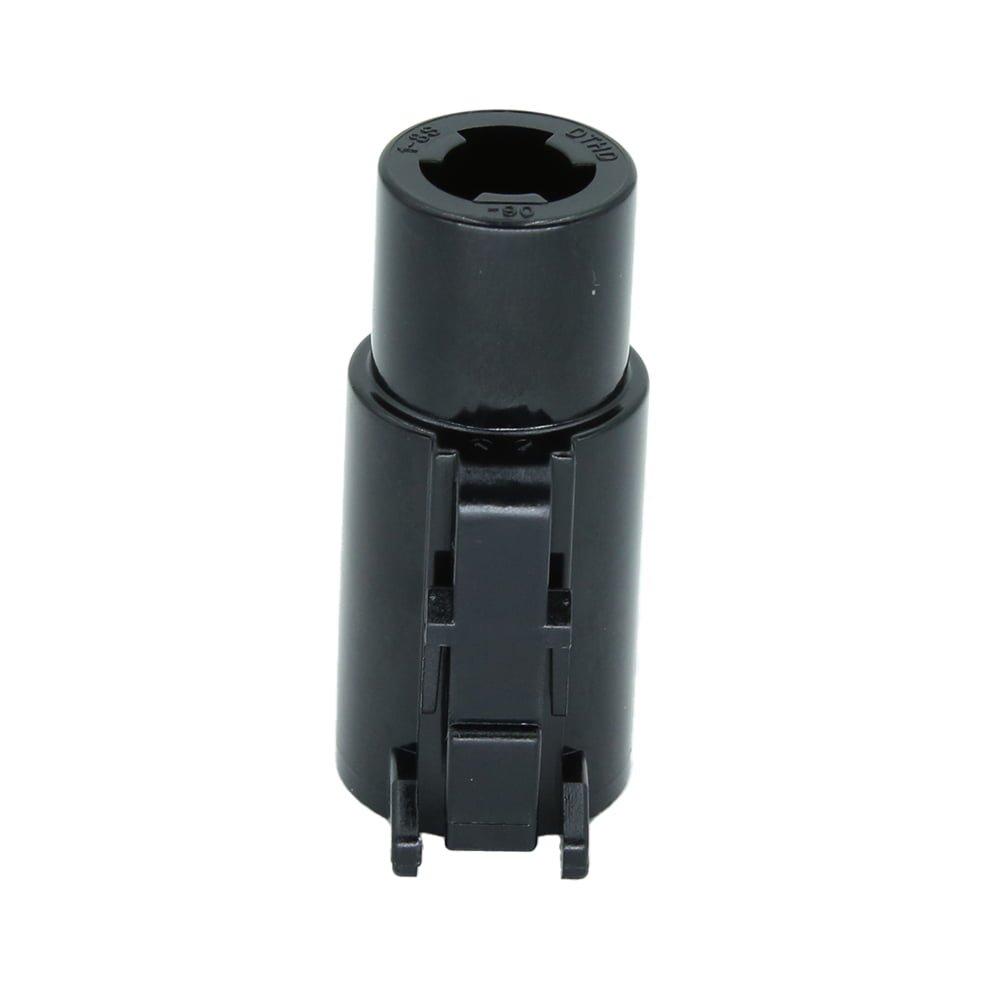

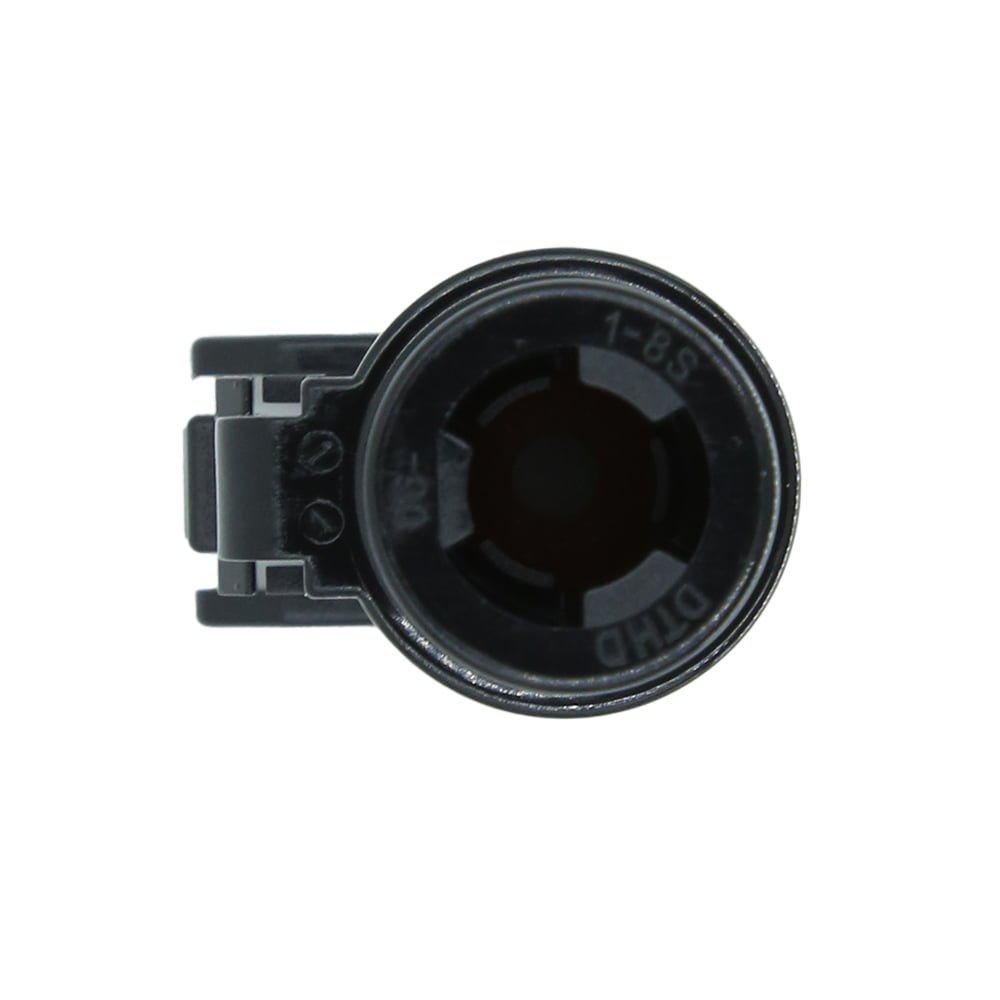

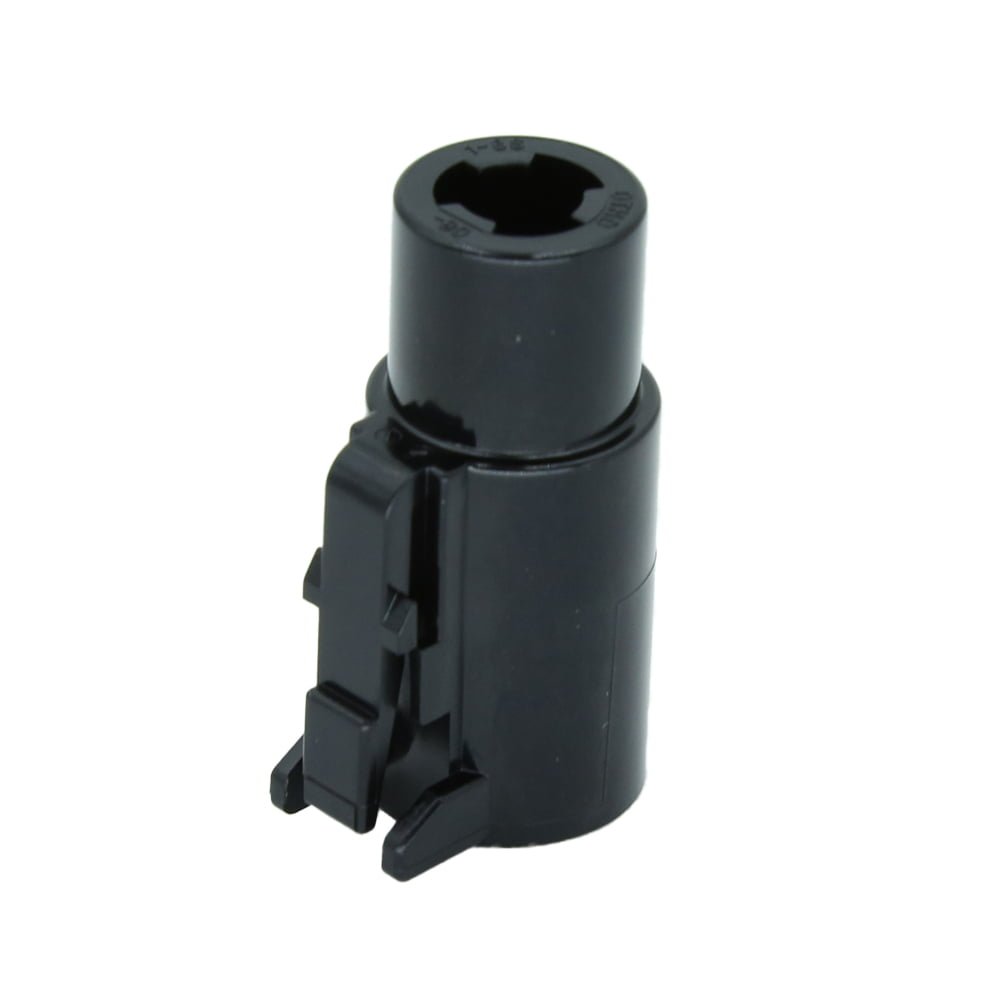

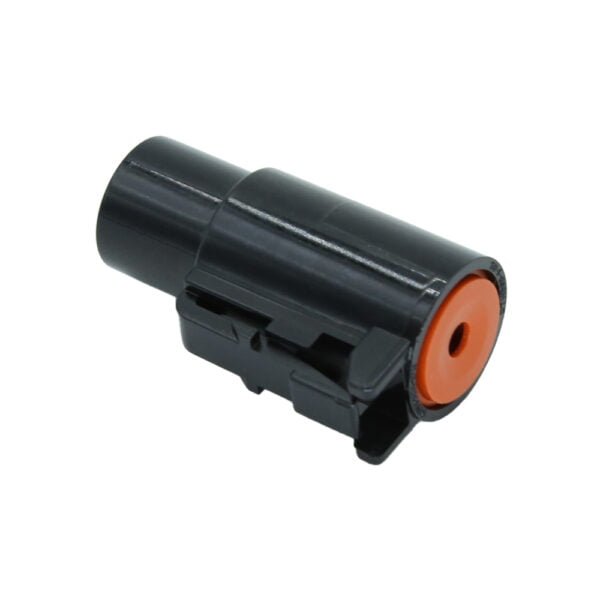

| Product Type Features |
-
Connector Shape : Circular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Housing for Female Terminals
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : Integrated in Housing
-
Mixed & Hybrid Connector : No
|
| Configuration Features |
-
Number of Positions : 1
-
Number of Rows : 0
|
| Electrical Characteristics |
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Nominal Voltage Architecture (V): 12, 24, 48
|
| Body Features |
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
|
| Contact Features |
-
Contact Type : Socket
-
Contact Size : Size 8
-
Mating Pin Diameter : 3.61 mm [ .142 in ]
-
Contact Current Rating (Max) (A): 60
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Polarizing Rib
-
Strain Relief : With
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : No
|
| Housing Features |
-
Housing Material : PEI (Polyetherimide)
|
| Dimensions |
-
Compatible Insulation Diameter Range : 4.83 – 6.09 mm [ .19 – .24 in ]
-
Product Length : 38.05 mm [ 1.498 in ]
-
Product Width : 16.76 mm [ .66 in ]
-
Connector Height : 21.87 mm [ .861 in ]
|
| Usage Conditions |
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
| Industry Standards |
-
UL Flammability Rating : Not tested
-
Degree of Protection : Not Tested
|
| Packaging Features |
-
Packaging Method : Box
-
Packaging Quantity : 1000
|
| Other |
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
|
