Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

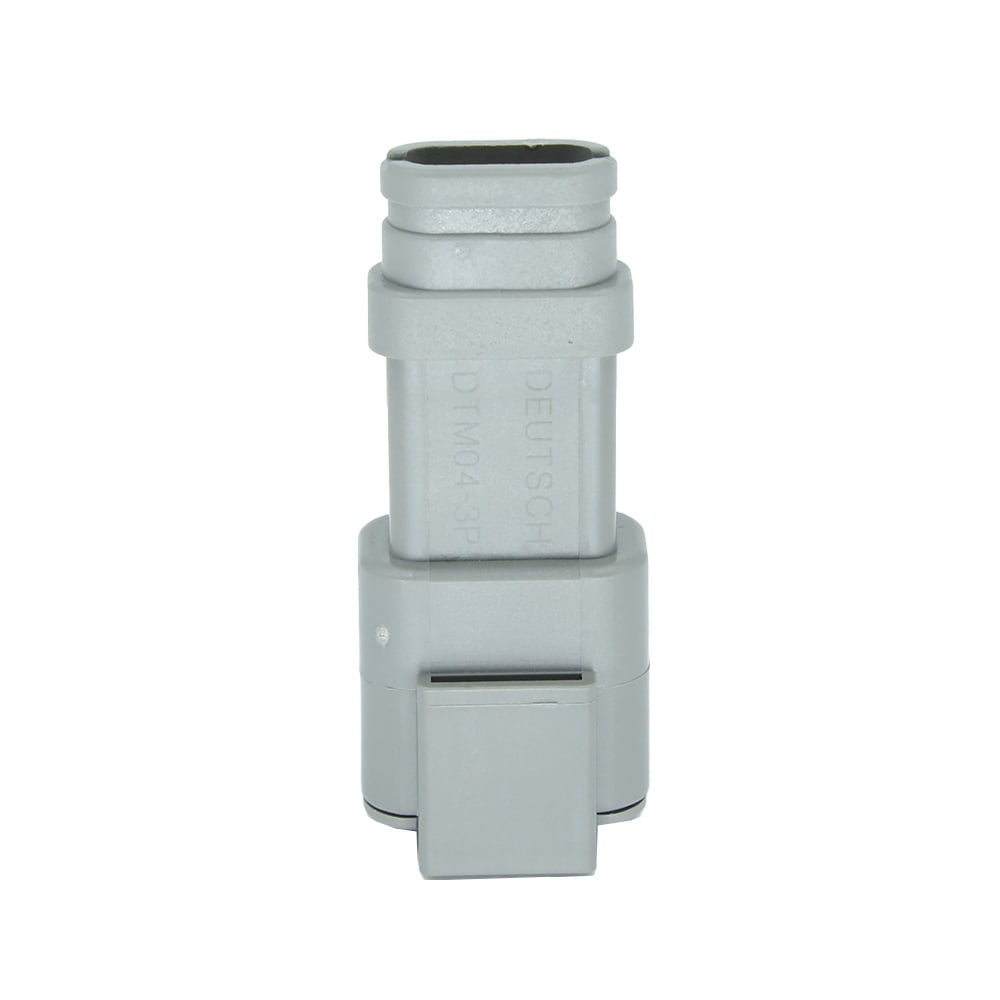

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : Housing for Male TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : Integrated in HousingMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 3Number of Rows : 1Blank Cavity Position : 0
|
|---|
| Electrical Characteristics | Operating Voltage (VAC): 250Operating Voltage (VDC): 250Nominal Voltage Architecture (V): 12, 24, 48
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : Gray
|
|---|
| Contact Features | Contact Type : PinContact Size : Size 20Mating Pin Diameter : 1.02 mm [ .04 in ]Contact Current Rating (Max) (A): 7.5
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : PolarizedStrain Relief : Add By AccessoryConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PA GFCenterline (Pitch) : 4.19 mm [ .165 in ]
|
|---|
| Dimensions | Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]Product Length : 50.93 mm [ 2.005 in ]Product Width : 20.73 mm [ .816 in ]Connector Height : 16.21 mm [ .638 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 125 °C [ 257 °F ]Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application : Power & Signal
|
|---|
| Industry Standards | UL Flammability Rating : 20mm Flame Test per Standard UL-94Compatible With Agency/Standards Products : SAE J2030Degree of Protection : IP68, IP6K9K
|
|---|
| Packaging Features | Packaging Method : BoxPackaging Quantity : 1000
|
|---|
| Other | Connector Position Assurance Capable : NoServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
