Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

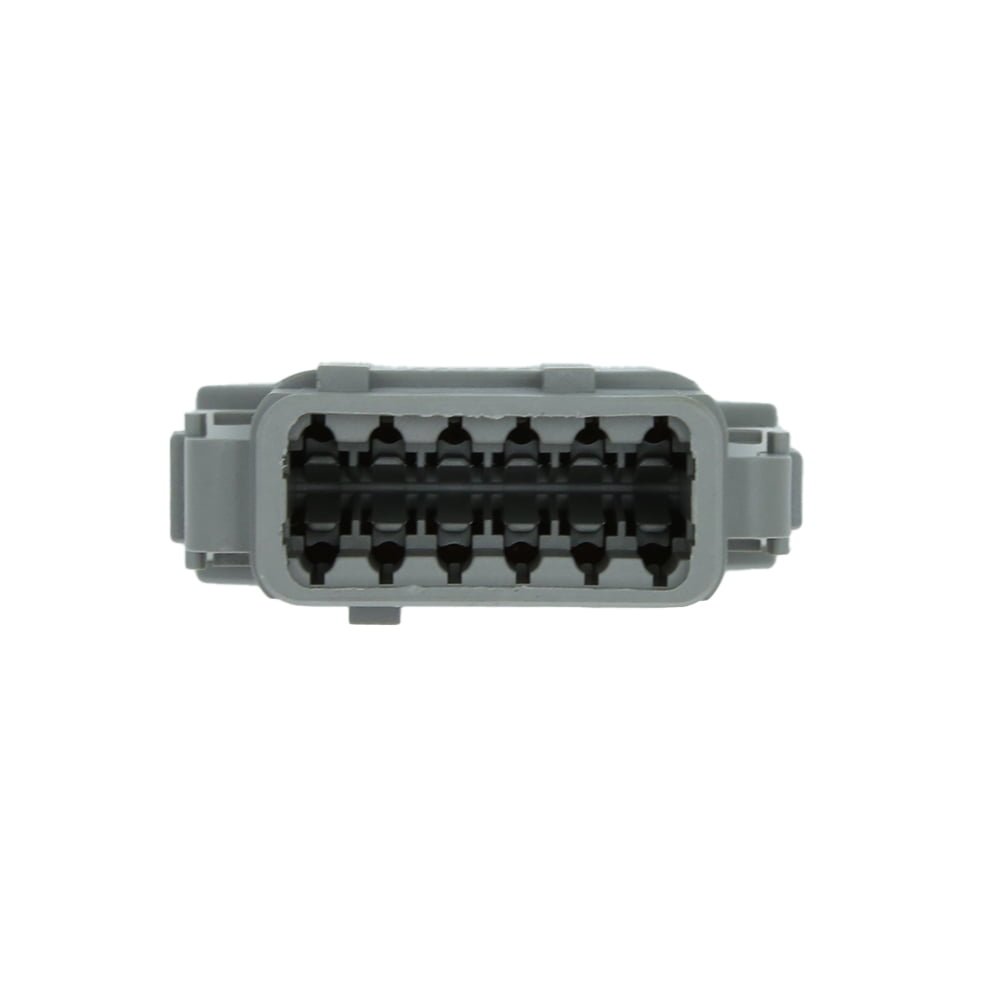

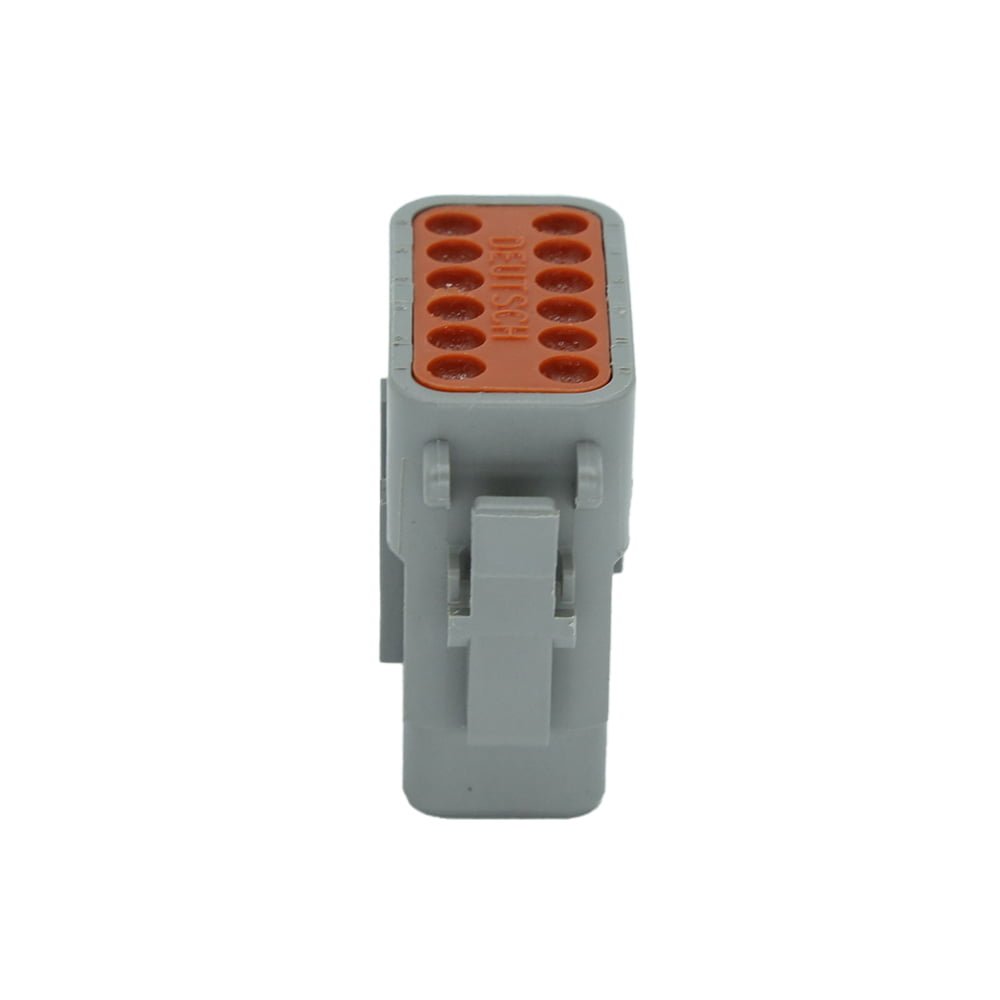

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : Housing for Female TerminalsSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : Integrated in HousingMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 12Number of Rows : 2Blank Cavity Position : 0
|
|---|
| Electrical Characteristics | Operating Voltage (VAC): 250Operating Voltage (VDC): 250Nominal Voltage Architecture (V): 250
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : GrayConnector & Keying Code : A
|
|---|
| Contact Features | Contact Type : SocketContact Size : Size 20Mating Pin Diameter : 1 mm [ .04 in ]Contact Current Rating (Max) (A): 7.5
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedStrain Relief : WithoutConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PA66 GF15Centerline (Pitch) : 3.81 mm [ .15 in ]
|
|---|
| Dimensions | Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]Row-to-Row Spacing : 7.11 mm [ .28 in ]Product Length : 37.8 mm [ 1.49 in ]Product Width : 15.2 mm [ .6 in ]Connector Height : 29.9 mm [ 1.18 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 125 °C [ 257 °F ]Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application : Power
|
|---|
| Industry Standards | UL Flammability Rating : UL 94V-0Compatible With Agency/Standards Products : SAE J2030Degree of Protection : IP68, IP6K9K
|
|---|
| Packaging Features | Packaging Method : PackagePackaging Quantity : 1
|
|---|
| Other | Connector Position Assurance Capable : NoServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
