Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

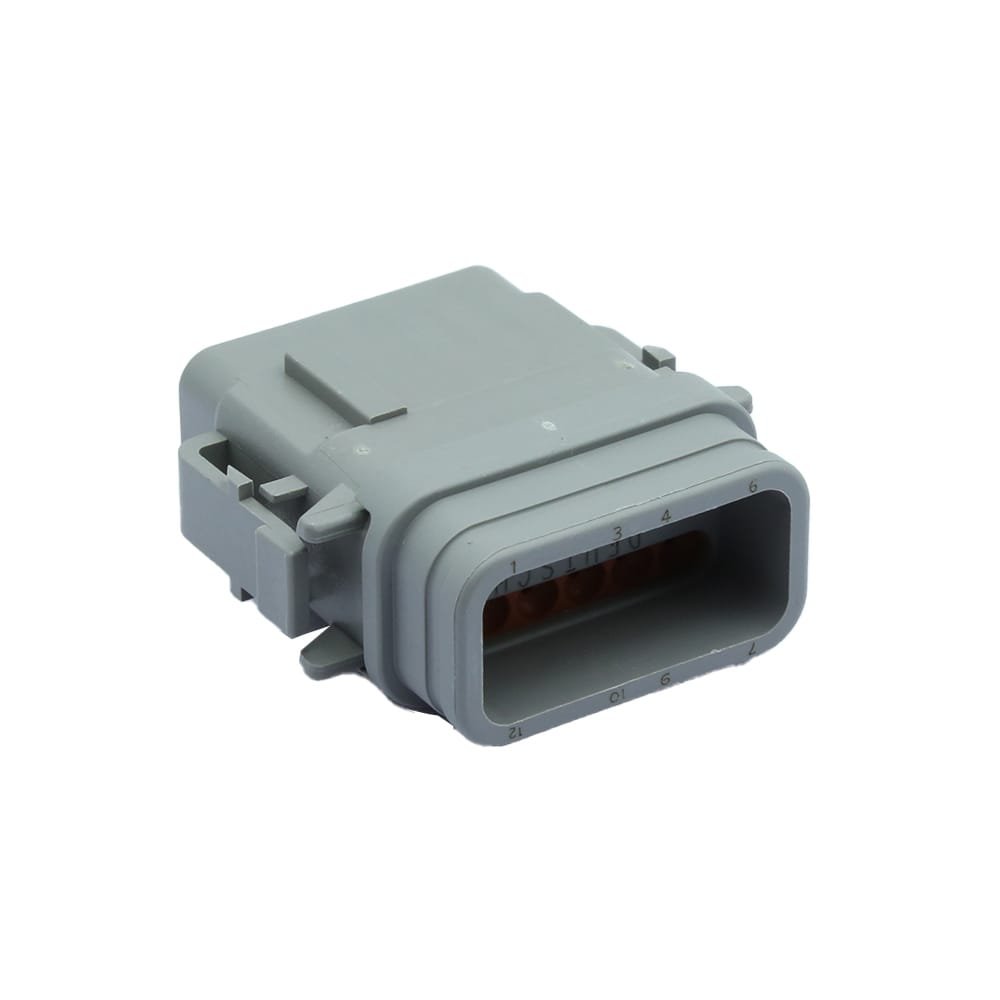

| Product Type Features | Connector Shape :Rectangular
Mixed & Hybrid Connector :No
Connector & Housing Type :Housing for Female Terminals
Connector System :Wire-to-Wire
Primary Locking Feature :Integrated in Housing
Connector & Contact Terminates To :Wire & Cable
|
|---|
| Configuration Features | Connector Modification :Shrink Boot Adapter
|
|---|
| Electrical Characteristics | Operating Voltage (VDC):250
Operating Voltage (VAC):250
Nominal Voltage Architecture (V):12, 24, 48
|
|---|
| Body Features | Primary Product Color :Gray
Connector & Keying Code :A
|
|---|
| Contact Features | Mating Pin Diameter :1.02 mm [ .04 in ]
Contact Current Rating (Max) (A):7.5
|
|---|
| Mechanical Attachment | Mating Alignment Type :Keyed
Terminal Position Assurance :Yes
Connector Mounting Type :Cable Mount (Free-Hanging)
|
|---|
| Housing Features | Housing Material :Plastic
Centerline (Pitch) :3.81 mm [ .15 in ]
|
|---|
| Dimensions | Connector Height :39.9 mm [ 1.57 in ]
Product Length :37.8 mm [ 1.49 in ]
Product Width :17.6 mm [ .693 in ]
Compatible Insulation Diameter Range :1.35 – 3.05 mm [ .053 – .12 in ]
Row-to-Row Spacing :7.11 mm [ .28 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) :125 °C [ 257 °F ]
Operating Temperature Range :-55 – 125 °C [ -67 – 257 °F ]
|
|---|
| Operation/Application | Circuit Application :Power
|
|---|
| Industry Standards | UL Flammability Rating :UL 94V-0
Compatible With Agency/Standards Products :SAE J2030
|
|---|
Packaging Features | Packaging Method :Package
|
|---|
| Other | Connector Position Assurance Capable :No
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
