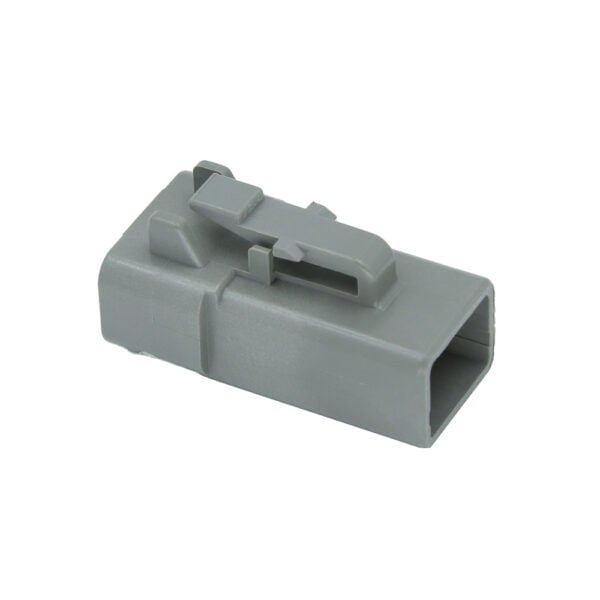

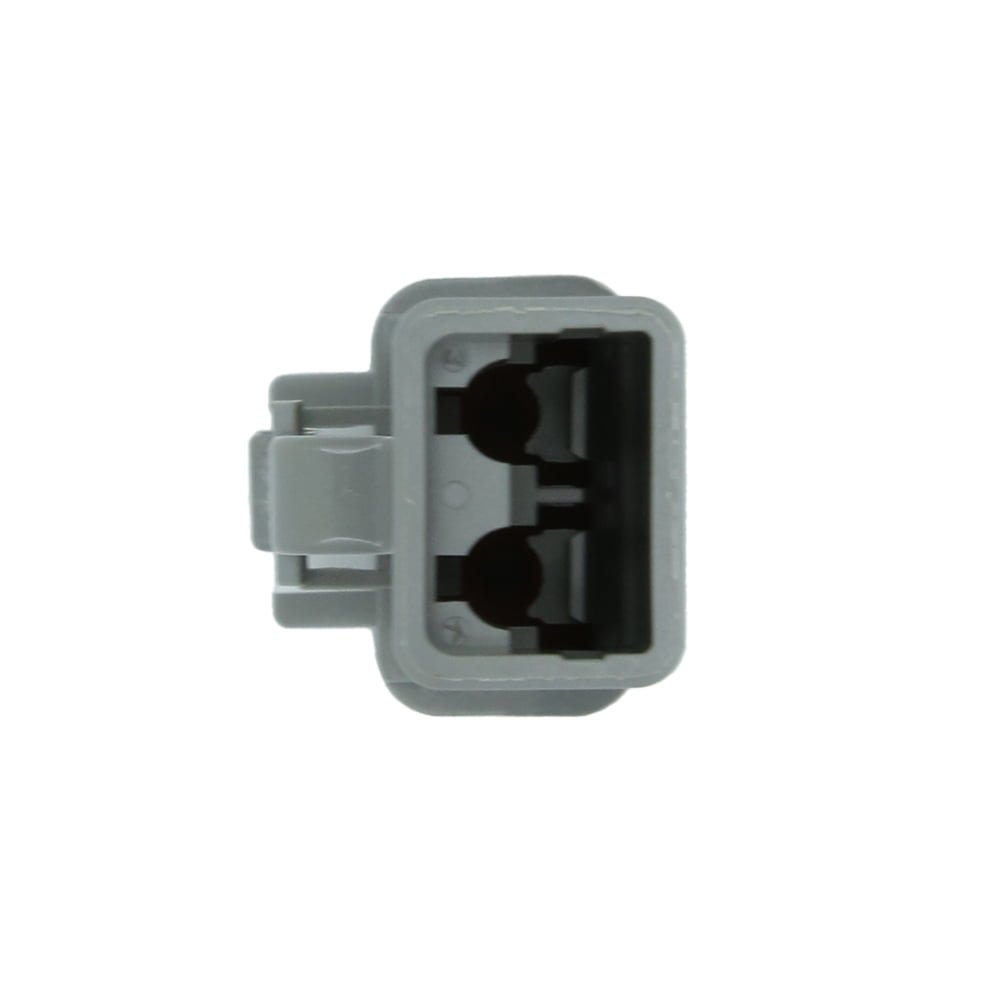

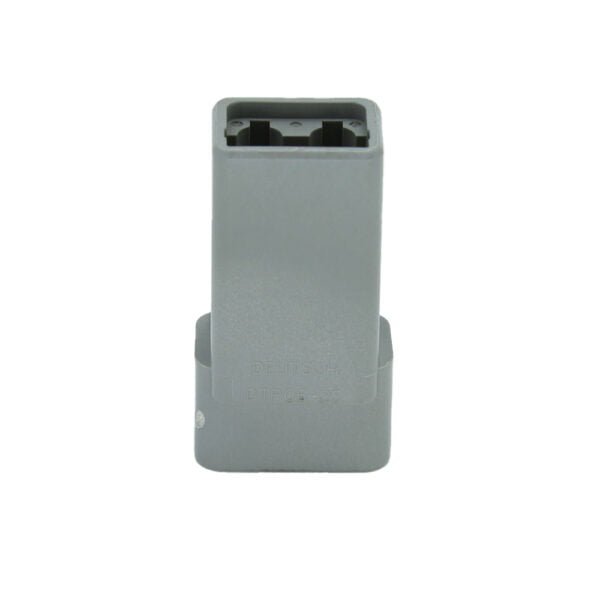

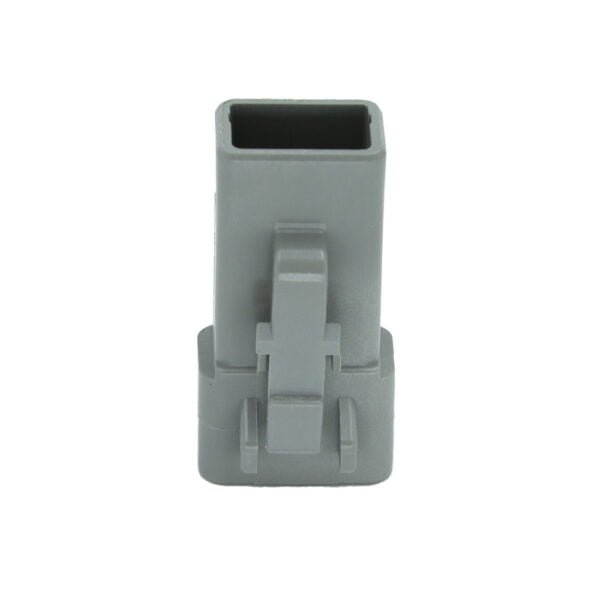

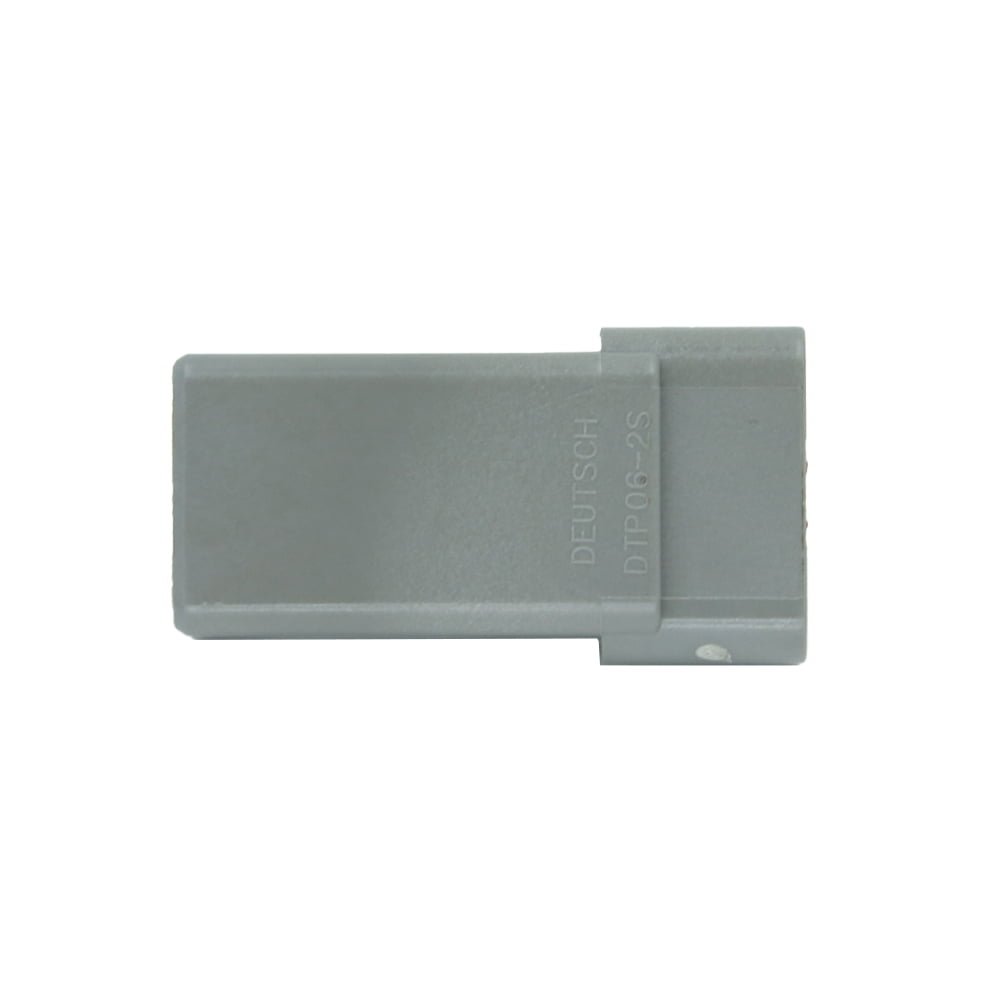

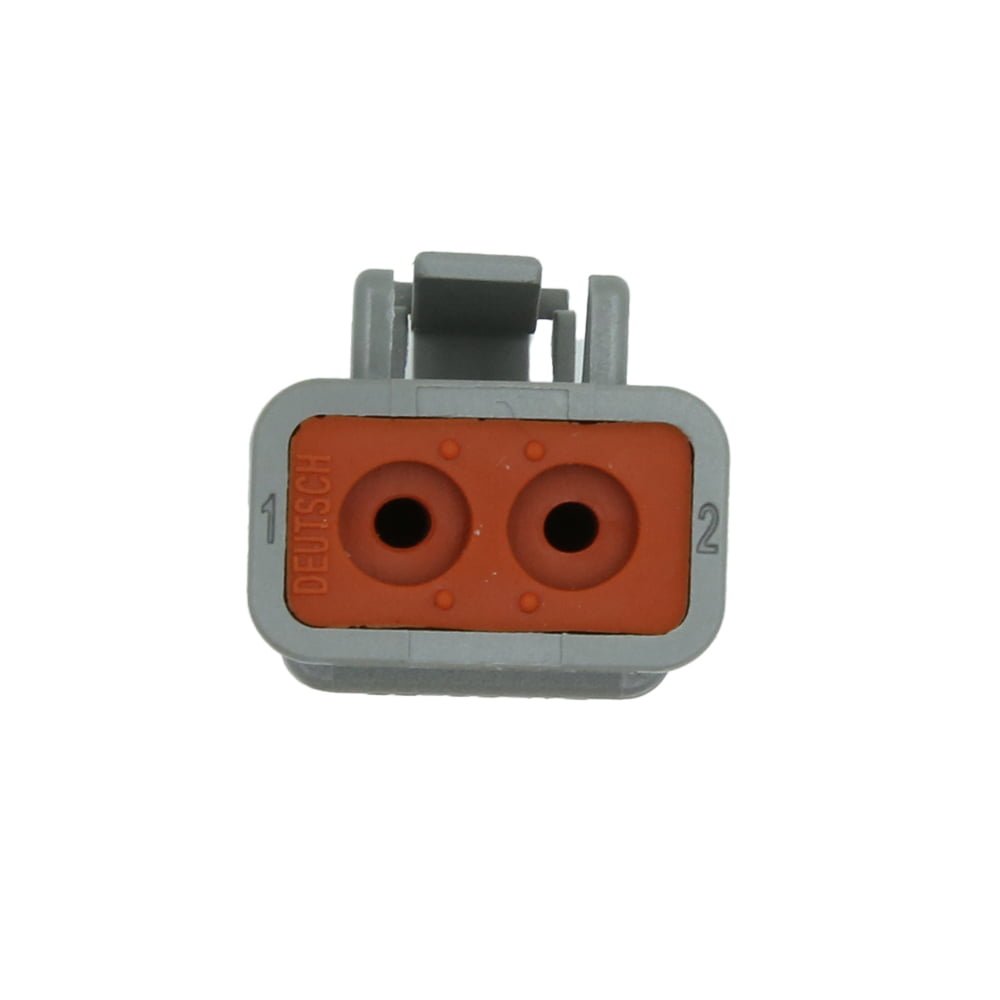

DTP06-2S

Housing for Female Terminals, Wire-to-Wire, 2 Position, .264 in [6.7 mm] Centerline, Sealable, Gray, Wire & Cable, Power, Hybrid

Additional information

Connector System

Wire-to-Wire

Number of Positions

2

Connector & Housing Type

Housing for Female Terminals

Centerline (Pitch)

6.7 mm [ .264 in ]

Sealable

Yes

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features
  • Connector Shape : Rectangular

  • Connector System : Wire-to-Wire

  • Connector & Housing Type : Housing for Female Terminals

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

  • Primary Locking Feature : Integrated in Housing

  • Mixed & Hybrid Connector : No

Configuration Features
  • Connector Seal Code : N Seal

  • Number of Positions : 2

  • Number of Rows : 1

  • Blank Cavity Position : 0

Electrical Characteristics
  • Operating Voltage (VAC): 200

  • Operating Voltage (VDC): 200

  • Nominal Voltage Architecture (V): 200

Body Features
  • Cable Exit Angle : 180°

  • Primary Product Color : Gray

Contact Features
  • Contact Type : Socket

  • Contact Size : Size 12

  • Mating Pin Diameter : 2.4 mm [ .094 in ]

  • Contact Current Rating (Max) (A): 25

Mechanical Attachment
  • Mating Alignment : With

  • Mating Alignment Type : Polarized

  • Strain Relief : Without

  • Connector Mounting Type : Cable Mount (Free-Hanging)

  • Terminal Position Assurance : No

Housing Features
  • Housing Material : PA GF

  • Centerline (Pitch) : 6.7 mm [ .264 in ]

Dimensions
  • Compatible Insulation Diameter Range : 3.4 – 4.9 mm [ .134 – 1.95 in ]

  • Product Length : 18.6 mm [ .732 in ]

  • Product Width : 18.6 mm [ .732 in ]

  • Connector Height : 34.6 mm [ 1.36 in ]

Usage Conditions
  • Operating Temperature (Max) : 125 °C [ 257 °F ]

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
  • Circuit Application : Power

Industry Standards
  • UL Flammability Rating : UL 94V-0

  • Compatible With Agency/Standards Products : SAE J2030

  • Degree of Protection : IP68, IP6K9K

Packaging Features
  • Packaging Method : Package

  • Packaging Quantity : 1

Other
  • Connector Position Assurance Capable : No

  • Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
