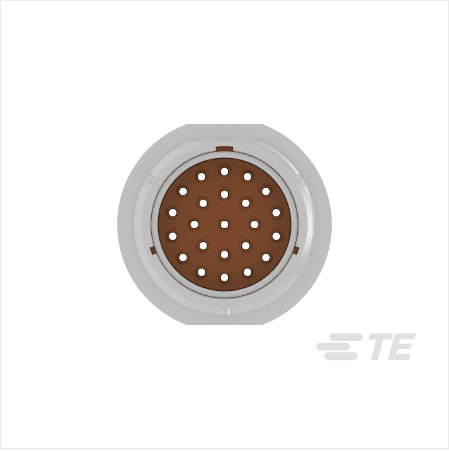

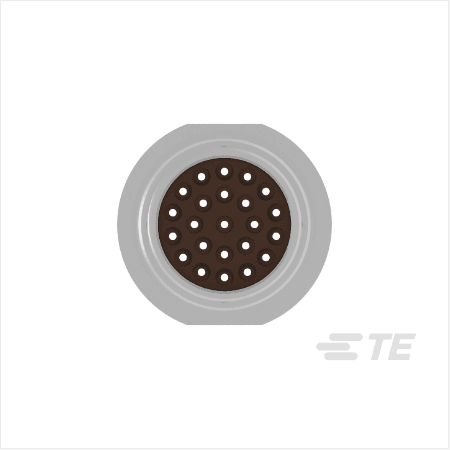

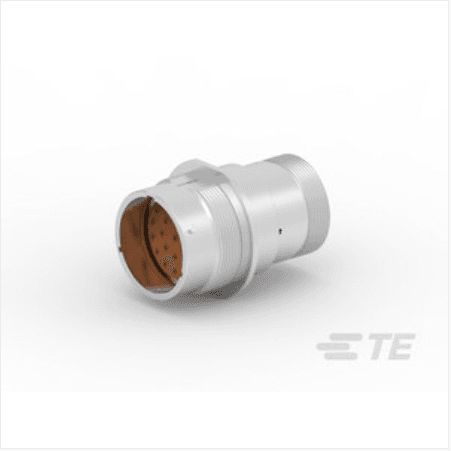

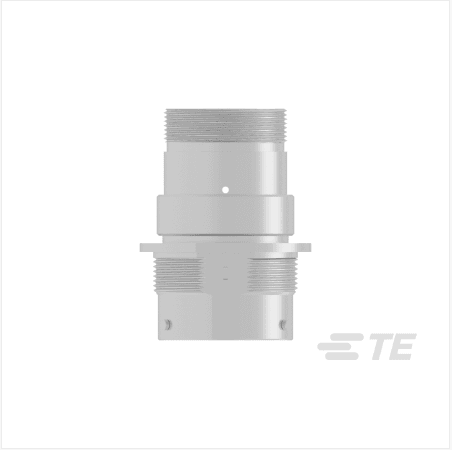

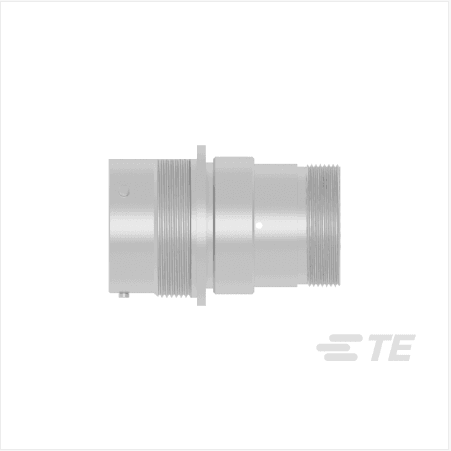

HD34-24-23PE-L005

Housing for Male Terminals, Wire-to-Panel, 23 Position, Sealable, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Additional information

Packaging Method	Package
Operating Temperature Range	-55 – 125 °C [ -67 – 257 °F ]
Product Width	47.6 mm [ 1.87 in ]
Connector & Contact Terminates To	Wire & Cable
Operating Temperature (Max)	125 °C [ 257 °F ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Connector & Contact Terminates To : Wire & Cable Connector Shape : Circular Connector & Housing Type : Housing for Male Terminals Primary Locking Feature : Integrated in Housing Sealable : Yes Connector System : Wire-to-Panel Mixed & Hybrid Connector : No
Configuration Features	Connector Seal Code : E Seal Number of Positions : 23 Blank Cavity Position : 0
Electrical Characteristics	Operating Voltage (VDC): 250 Operating Voltage (VAC): 250
Body Features	Cable Exit Angle : 180°
Contact Features	Mating Pin Diameter : 1.6 mm [ .063 in ] Contact Current Rating (Max) (A): 13 Contact Size : Size 16 Contact Type : Pin
Mechanical Attachment	Connector Mounting Type : Panel Mount Mating Alignment Type : Guide Post Terminal Position Assurance : No Mating Alignment : With Strain Relief : Without
Housing Features	Housing Material : Aluminum Alloy
Dimensions	Product Width : 47.6 mm [ 1.87 in ] Connector Height : 68.5 mm [ 2.69 in ] Product Length : 50.8 mm [ 2 in ] Compatible Insulation Diameter Range : 1.4 – 3.8 mm [ .055 – .149 in ]
Usage Conditions	Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ] Operating Temperature (Max) : 125 °C [ 257 °F ]
Operation/Application	Circuit Application : Power
Industry Standards	UL Flammability Rating : UL 94V-0 Degree of Protection : IP67
Packaging Features	Packaging Method : Package Packaging Quantity : 1
Other	Connector Position Assurance Capable : No Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.

Product drawings

Online Message

If you have any needs , please fill out the form below and we will contact you as soon as possible.

HD34-24-23PE-L005

Housing for Male Terminals, Wire-to-Panel, 23 Position, Sealable, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Additional information

Connector & Contact Terminates To : Wire & Cable

Connector Shape : Circular

Connector & Housing Type : Housing for Male Terminals

Primary Locking Feature : Integrated in Housing

Sealable : Yes

Connector System : Wire-to-Panel

Mixed & Hybrid Connector : No

Connector Seal Code : E Seal

Number of Positions : 23

Blank Cavity Position : 0

Operating Voltage (VDC): 250

Operating Voltage (VAC): 250

Cable Exit Angle : 180°

Mating Pin Diameter : 1.6 mm [ .063 in ]

Contact Current Rating (Max) (A): 13

Contact Size : Size 16

Contact Type : Pin

Connector Mounting Type : Panel Mount

Mating Alignment Type : Guide Post

Terminal Position Assurance : No

Mating Alignment : With

Strain Relief : Without

Housing Material : Aluminum Alloy

Product Width : 47.6 mm [ 1.87 in ]

Connector Height : 68.5 mm [ 2.69 in ]

Product Length : 50.8 mm [ 2 in ]

Compatible Insulation Diameter Range : 1.4 – 3.8 mm [ .055 – .149 in ]

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operating Temperature (Max) : 125 °C [ 257 °F ]

Circuit Application : Power

UL Flammability Rating : UL 94V-0

Degree of Protection : IP67

Packaging Method : Package

Packaging Quantity : 1

Connector Position Assurance Capable : No

Serviceable : Yes
