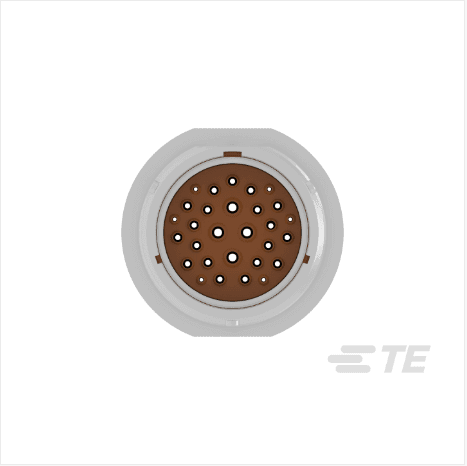

HD34-24-29PE-072

Receptacle, Wire-to-Panel, 29 Position, Sealable, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Additional information

Packaging Method

Package

Operating Temperature Range

-55 – 125 °C [ -67 – 257 °F ]

Product Width

47.6 mm [ 1.87 in ]

Connector & Contact Terminates To

Wire & Cable

Operating Temperature (Max)

125 °C [ 257 °F ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features
  • Connector System : Wire-to-Panel

  • Connector & Housing Type : Receptacle

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

  • Primary Locking Feature : Contact Retainer

  • Connector Shape : Circular

  • Mixed & Hybrid Connector : Yes

Configuration Features
  • Number of Positions : 29

  • Connector Seal Code : E Seal

  • Connector Modification : Threaded Adapter

  • Blank Cavity Position : 0

Electrical Characteristics
  • Operating Voltage (VDC): 250

  • Operating Voltage (VAC): 250

Body Features
  • Cable Exit Angle : 180°

Contact Features
  • Mating Pin Diameter (mm): 1.6, 2.4, 1

  • Mating Pin Diameter (in): .095, .062, .04

  • Contact Current Rating (Max) (A): 25, 13, 7.5

  • Contact Type : Pin

  • Contact Size : Size 16, Size 12, Size 20

Mechanical Attachment
  • Connector Mounting Type : Panel Mount

  • Mating Alignment : With

  • Mating Alignment Type : Guide Post

  • Terminal Position Assurance : No

  • Strain Relief : Without

Housing Features
  • Housing Material : Aluminum Alloy

Dimensions
  • Connector Height : 68.5 mm [ 2.7 in ]

  • Product Length : 50.8 mm [ 2 in ]

  • Product Width : 47.6 mm [ 1.87 in ]

  • Compatible Insulation Diameter Range (mm): 1.3 – 3.2, 1.4 – 3.8, 3.6 – 5.2

  • Compatible Insulation Diameter Range (in): .055 – .149, .05 – .125, .141 – .204

Usage Conditions
  • Operating Temperature (Max) : 125 °C [ 257 °F ]

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
  • Circuit Application : Power

Industry Standards
  • IP Rating : IP67

Packaging Features
  • Packaging Method : Package

  • Packaging Quantity : 1

Other
  • Connector Position Assurance Capable : No

  • EU RoHS Compliance : Compliant

  • EU ELV Compliance : Compliant

  • Serviceable : Yes
