HD34-24-31SE-L005

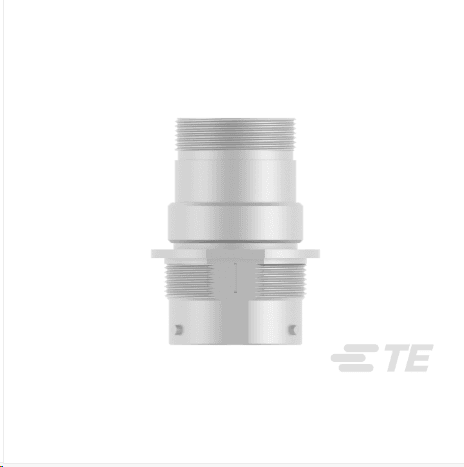

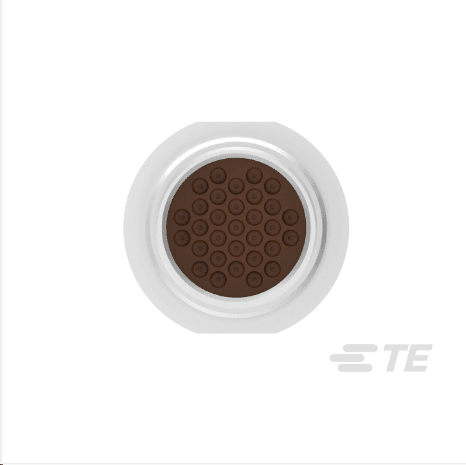

Housing for Female Terminals, Wire-to-Panel, 31 Position, Sealable, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Additional information

Connector System

Wire-to-Panel

Number of Positions

31

Connector & Housing Type

Housing for Female Terminals

Sealable

Yes

Mating Pin Diameter

1.6 mm [ .063 in ]

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features
  • Connector System : Wire-to-Panel

  • Connector & Housing Type : Housing for Female Terminals

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

  • Primary Locking Feature : Integrated in Housing

  • Connector Shape : Circular

  • Mixed & Hybrid Connector : No

Configuration Features
  • Number of Positions : 31

  • Connector Seal Code : E Seal

  • Blank Cavity Position : 0

Contact Features
  • Mating Pin Diameter : 1.6 mm [ .063 in ]

  • Contact Current Rating (Max) (A): 13

  • Contact Type : Socket

  • Contact Size : Size 16

Operation/Application
  • Circuit Application : Power

Mechanical Attachment
  • Connector Mounting Type : Panel Mount

  • Mating Alignment : With

  • Mating Alignment Type : Polarizing Slot

  • Terminal Position Assurance : No

  • Strain Relief : Without

Usage Conditions
  • Operating Temperature (Max) : 125 °C [ 257 °F ]

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Electrical Characteristics
  • Nominal Voltage Architecture (V): 250

  • Operating Voltage (VDC): 250

  • Operating Voltage (VAC): 250

Other
  • Connector Position Assurance Capable : No

  • EU RoHS Compliance : Compliant

  • EU ELV Compliance : Compliant

  • Serviceable : Yes

Body Features
  • Cable Exit Angle : 180°

Housing Features
  • Housing Material : Aluminum Alloy

Dimensions
  • Connector Height : 41.8 mm [ 1.64 in ]

  • Product Length : 50.8 mm [ 2 in ]

  • Product Width : 47.6 mm [ 1.87 in ]

  • Compatible Insulation Diameter Range : 1.4 – 3.8 mm [ .055 – .15 in ]

Industry Standards
  • IP Rating : IP67

Packaging Features
  • Packaging Method : Package

  • Packaging Quantity : 1

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
