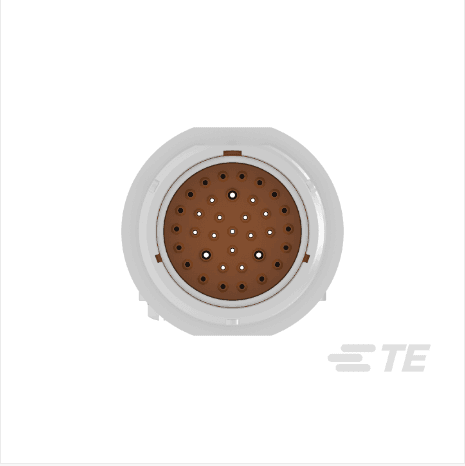

| Configuration Features |
-
Connector Seal Code : N Seal
-
Connector Modification : Cable Clamp
-
Blank Cavity Position : 0
-
Number of Positions : 35
|
| Product Type Features |
-
Connector Shape : Circular
-
Mixed & Hybrid Connector : Yes
-
Connector & Housing Type : Housing for Male Terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Primary Locking Feature : Contact Retainer
-
Connector & Contact Terminates To : Wire & Cable
|
| Contact Features |
-
Contact Type : Pin
-
Contact Size : Size 16, Size 20
-
Mating Pin Diameter (mm): 1.6, 1
-
Mating Pin Diameter (in): .063, .04
-
Contact Current Rating (Max) (A): 13, 7.5
|
| Other |
-
Serviceable : Yes
-
Connector Position Assurance Capable : No
-
EU RoHS Compliance : Compliant
-
EU ELV Compliance : Compliant
|
| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Guide Post
-
Terminal Position Assurance : No
-
Strain Relief : With
-
Connector Mounting Type : Panel Mount
|
| Packaging Features |
-
Packaging Method : Package
-
Packaging Quantity : 1
|
| Dimensions |
-
Connector Height : 84.3 mm [ 3.32 in ]
-
Product Length : 50.8 mm [ 2 in ]
-
Product Width : 47.6 mm [ 1.87 in ]
-
Compatible Insulation Diameter Range (mm): 1.3 – 3.2, 1.9 – 3.5
-
Compatible Insulation Diameter Range (in): .05 – .125, .075 – .138
|
| Body Features |
|
| Housing Features |
-
Housing Material : Aluminum Alloy
|
| Electrical Characteristics |
-
Operating Voltage (VDC): 250
-
Operating Voltage (VAC): 250
-
Nominal Voltage Architecture (V): 250
|
| Industry Standards |
|
| Usage Conditions |
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
