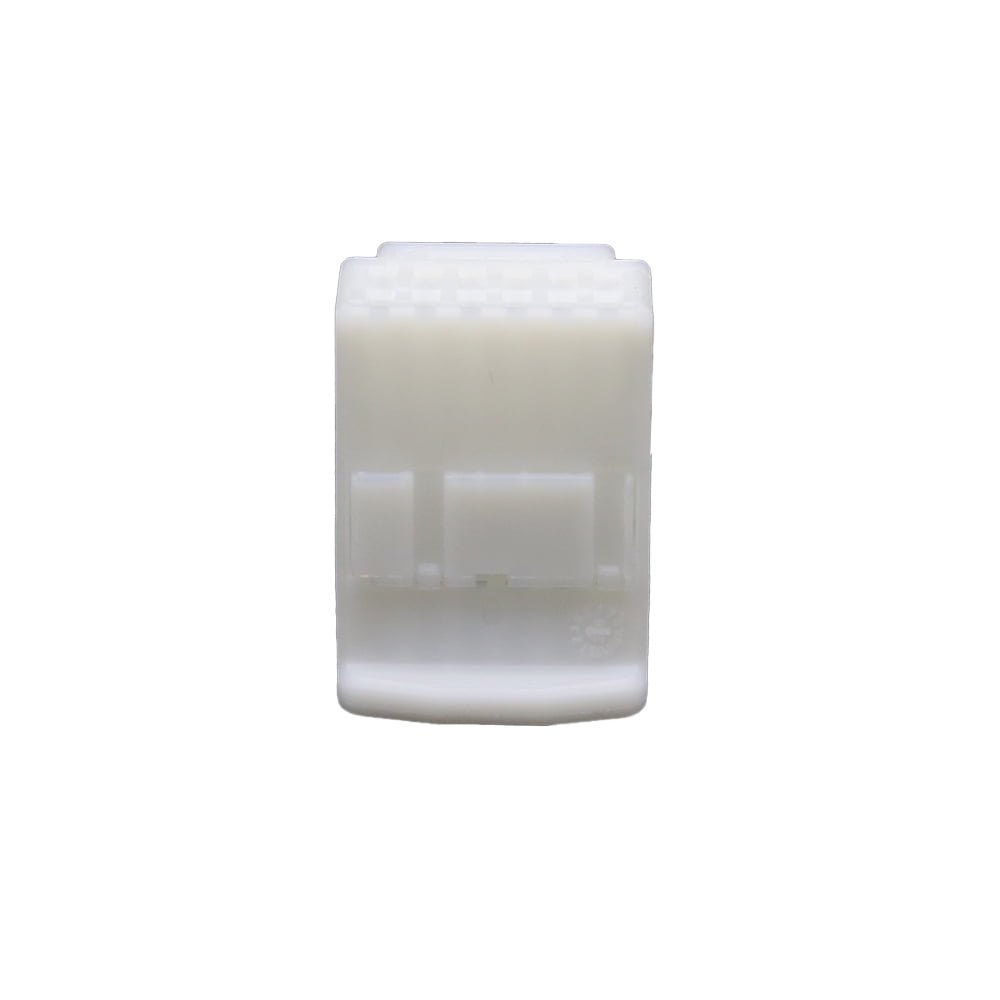

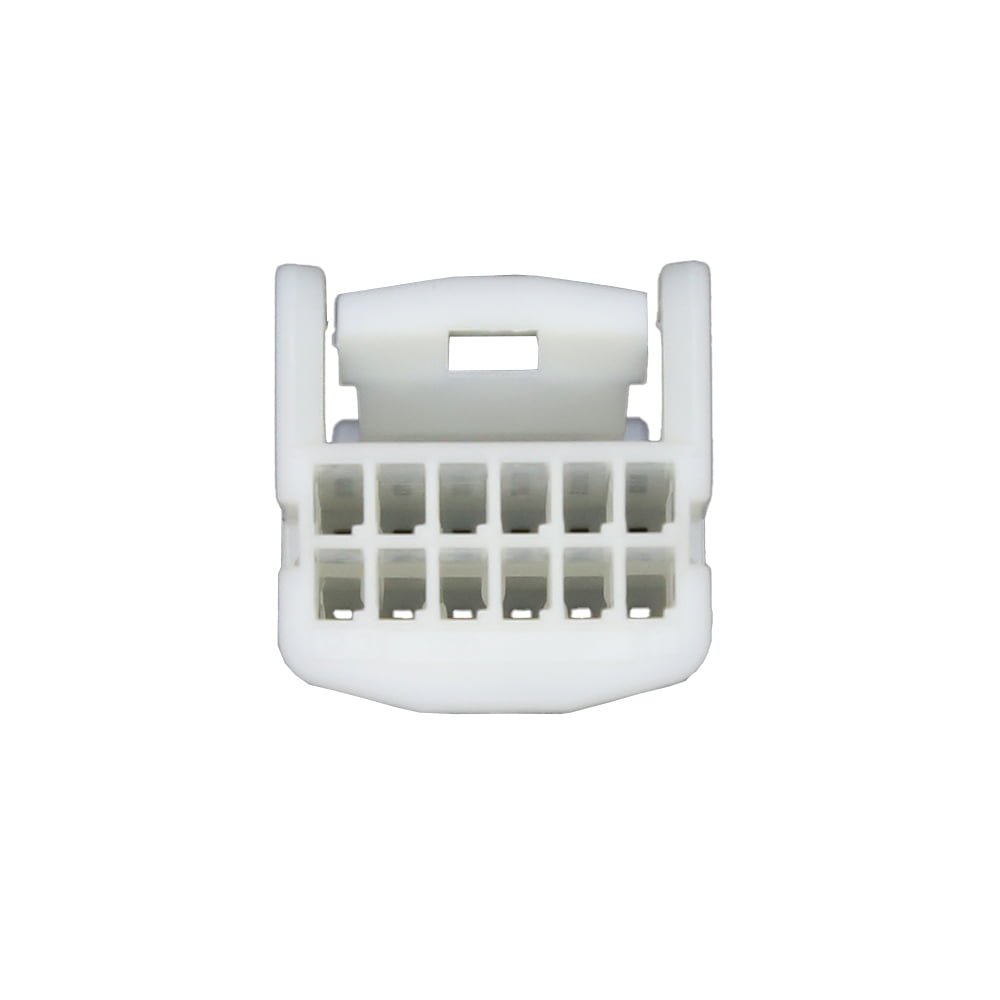

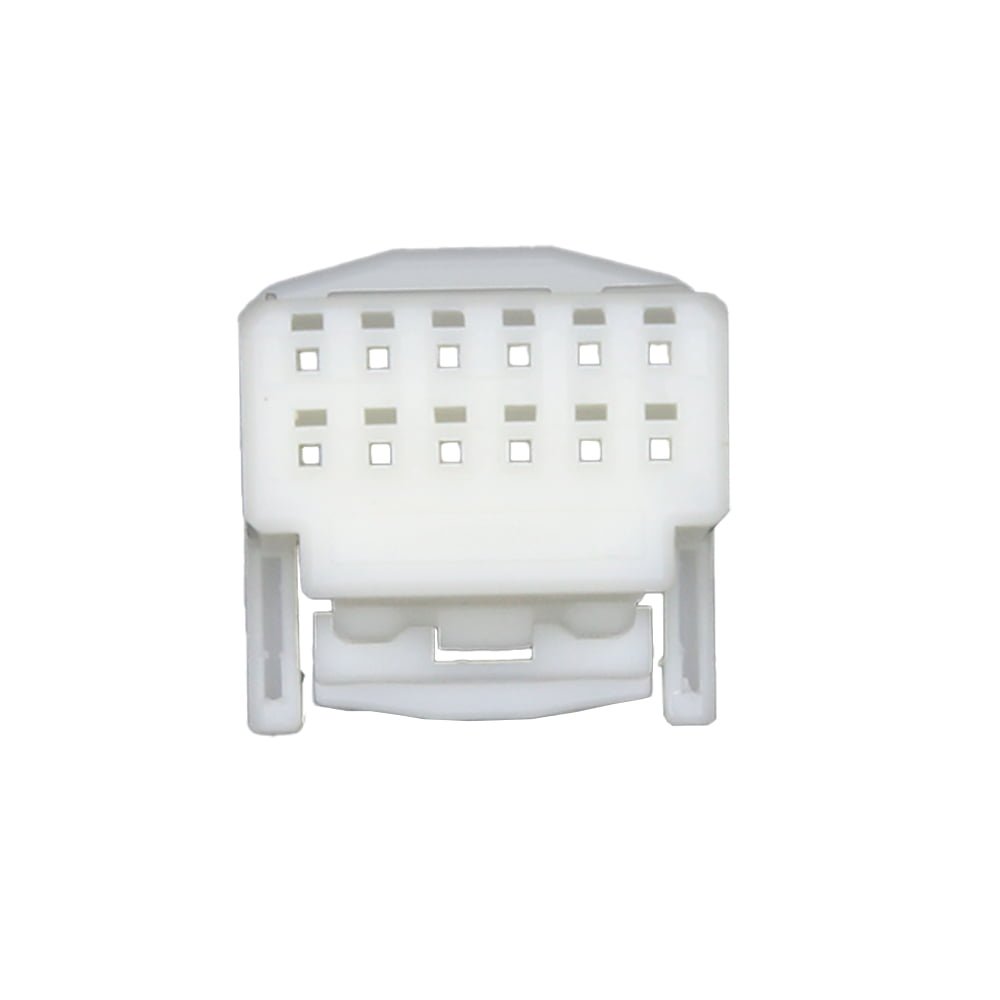

1318774-1

Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 12 Position, .087 in [2.2 mm] Centerline, 0.64/025 Connector System

Additional information

Connector System	Wire-to-Board, Wire-to-Device, Wire-to-Wire
Number of Positions	12
Connector & Housing Type	Housing for Female Terminals
Centerline (Pitch)	2.2 mm [ .087 in ]
Sealable	No

Share To:

Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

Product Type Features	Connector Shape : Rectangular Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire Connector & Housing Type : Housing for Female Terminals Sealable : No Primary Locking Feature : On the Terminal Mixed & Hybrid Connector : No
Configuration Features	Number of Positions : 12 Number of Rows : 2
Electrical Characteristics	Operating Voltage (VDC): 12 Nominal Voltage Architecture (V): 12
Body Features	Cable Exit Angle : 180° Primary Product Color : Natural
Contact Features	Contact Type : Receptacle Contact Size : .63mm Mating Tab Width : .64 mm [ .025 in ]
Mechanical Attachment	Mating Alignment : With Mating Alignment Type : Polarized Strain Relief : Without Connector Mounting Type : Cable Mount (Free-Hanging) Terminal Position Assurance : Yes
Housing Features	Housing Material : PBT Centerline (Pitch) : 2.2 mm [ .087 in ]
Dimensions	Row-to-Row Spacing : 5.9 mm [ .232 in ] Product Length : 21 mm [ .827 in ] Product Width : 15.4 mm [ .606 in ] Connector Height : 15.8 mm [ .622 in ]
Usage Conditions	Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105 Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221 Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
Operation/Application	Circuit Application : Signal
Industry Standards	UL Flammability Rating : UL 94HB
Packaging Features	Packaging Method : Bag Packaging Quantity : 100
Other	Connector Position Assurance Capable : No Serviceable : Yes

If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
