Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

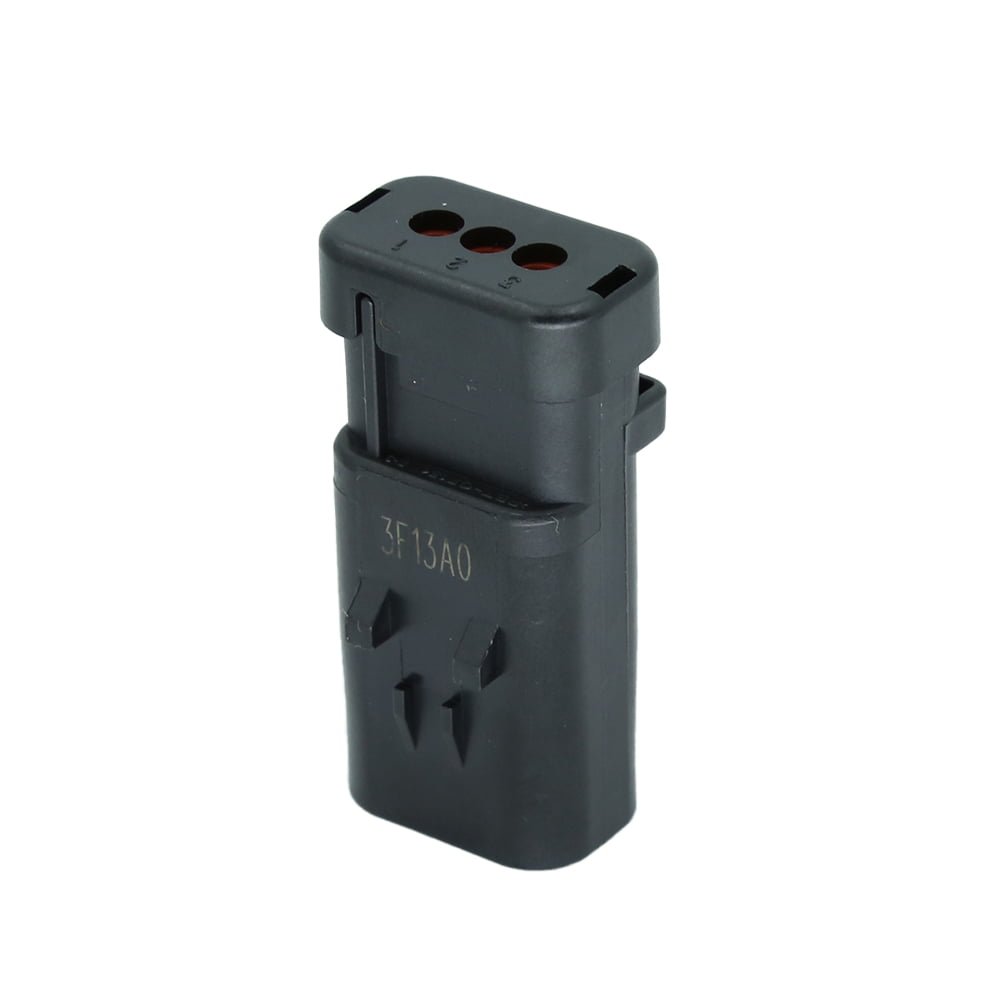

| Product Type Features | Connector Shape : RectangularConnector System : Wire-to-WireConnector & Housing Type : CapSealable : YesConnector & Contact Terminates To : Wire & CablePrimary Locking Feature : Integrated in HousingMixed & Hybrid Connector : No
|
|---|
| Configuration Features | Number of Positions : 3Number of Rows : 1
|
|---|
| Electrical Characteristics | Operating Voltage (VDC): 250
|
|---|
| Body Features | Cable Exit Angle : 180°Primary Product Color : BlackConnector & Keying Code : A
|
|---|
| Contact Features | Contact Type : PinContact Size : 1.5mmMating Pin Diameter : 1.5 mm [ .06 in ]
|
|---|
| Mechanical Attachment | Mating Alignment : WithMating Alignment Type : KeyedStrain Relief : Add By AccessoryConnector Mounting Type : Cable Mount (Free-Hanging)Terminal Position Assurance : Yes
|
|---|
| Housing Features | Housing Material : PBT GFCenterline (Pitch) : 4.5 mm [ .177 in ]
|
|---|
| Dimensions | Product Length : 24.1 mm [ .949 in ]Product Width : 47.55 mm [ 1.872 in ]Connector Height : 19.15 mm [ .754 in ]
|
|---|
| Usage Conditions | Operating Temperature (Max) : 125 °C [ 257 °F ]Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
|
|---|
| Industry Standards | UL Flammability Rating : UL 94HBDegree of Protection : IP67
|
|---|
| Packaging Features | Packaging Method : BagPackaging Quantity : 1
|
|---|
| Other | Connector Position Assurance Capable : YesServiceable : Yes
|
|---|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
