Please review the product documentation, or contact us for the latest information. Please note: All product design activities should refer to product drawings.

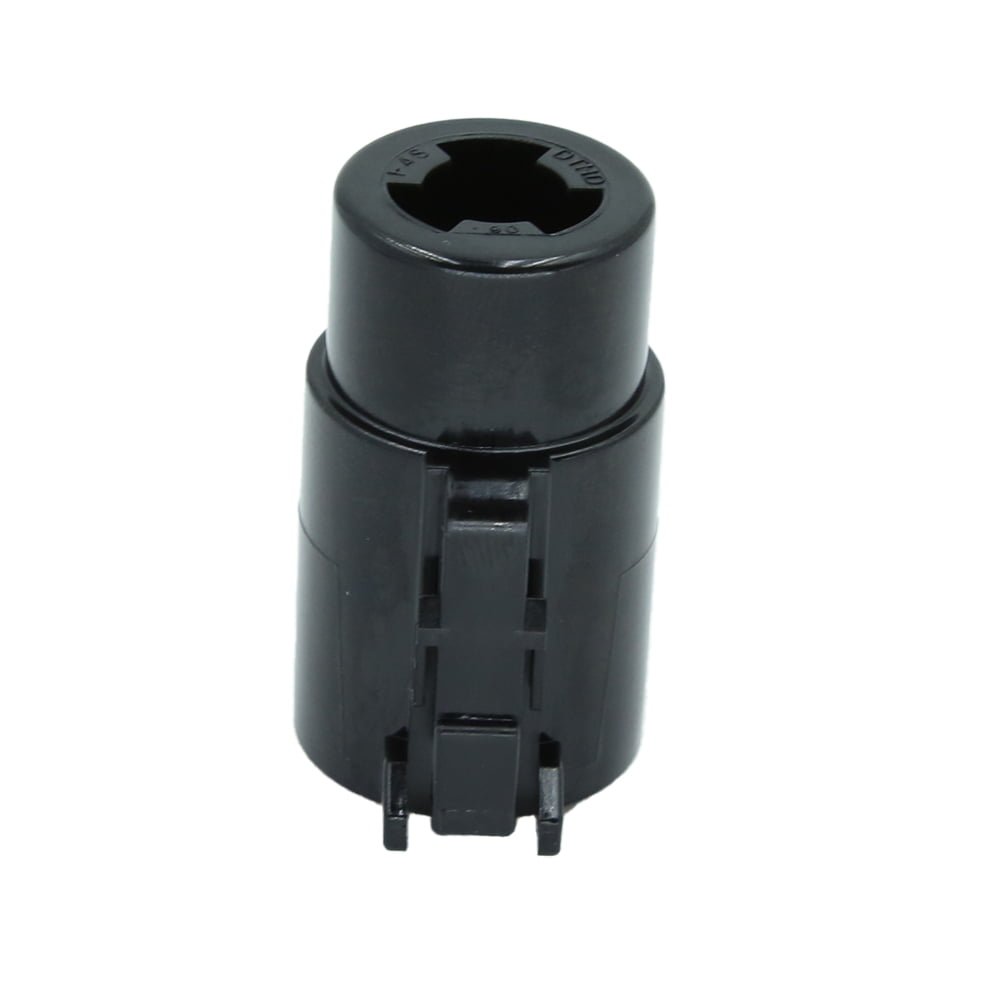

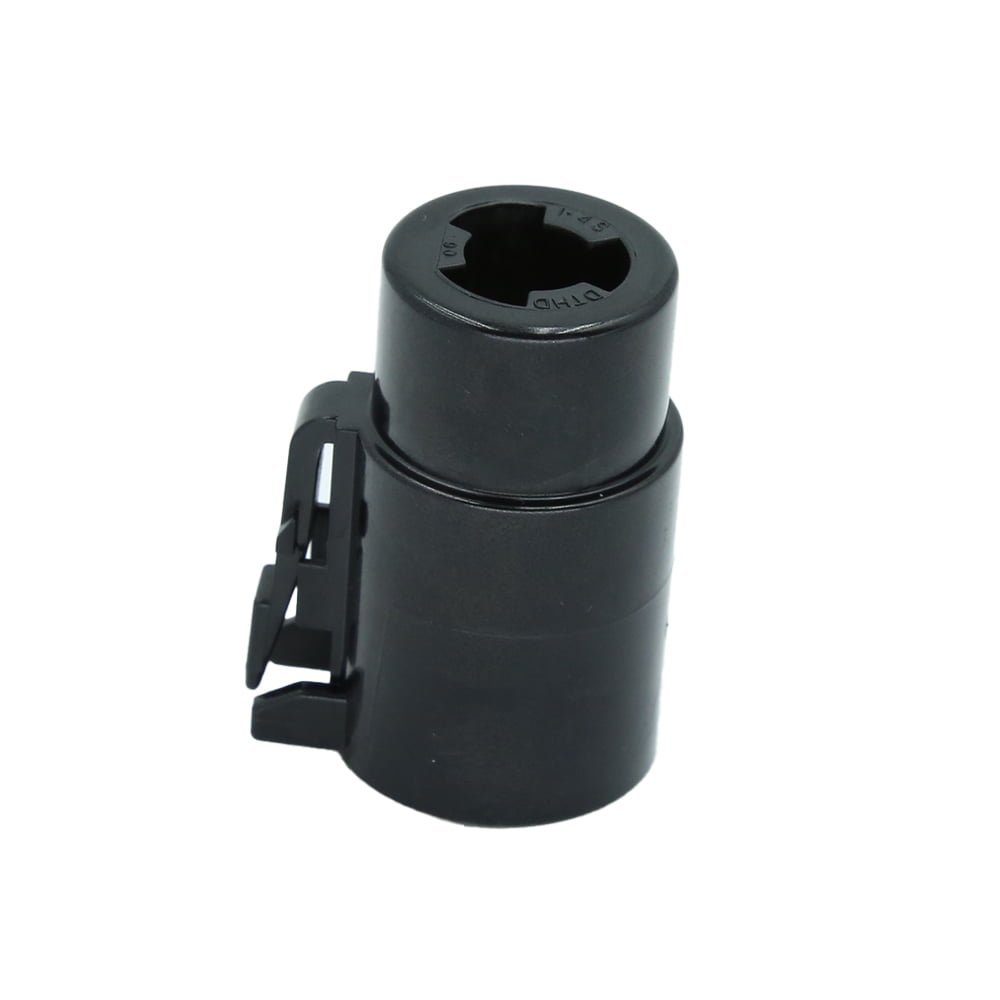

| Product Type Features |
-
Connector Shape : Circular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Housing for Female Terminals
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : Integrated in Housing
-
Mixed & Hybrid Connector : No
|
| Configuration Features |
-
Number of Positions : 1
-
Number of Rows : 1
|
| Electrical Characteristics |
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Nominal Voltage Architecture (V): 250
|

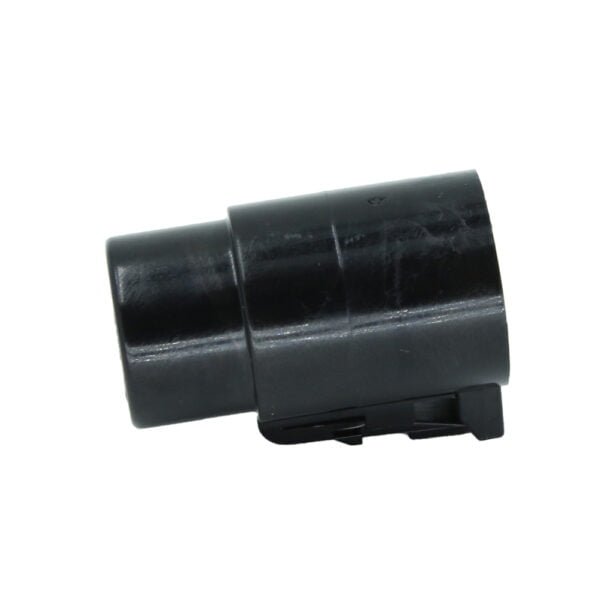

| Body Features |
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
|

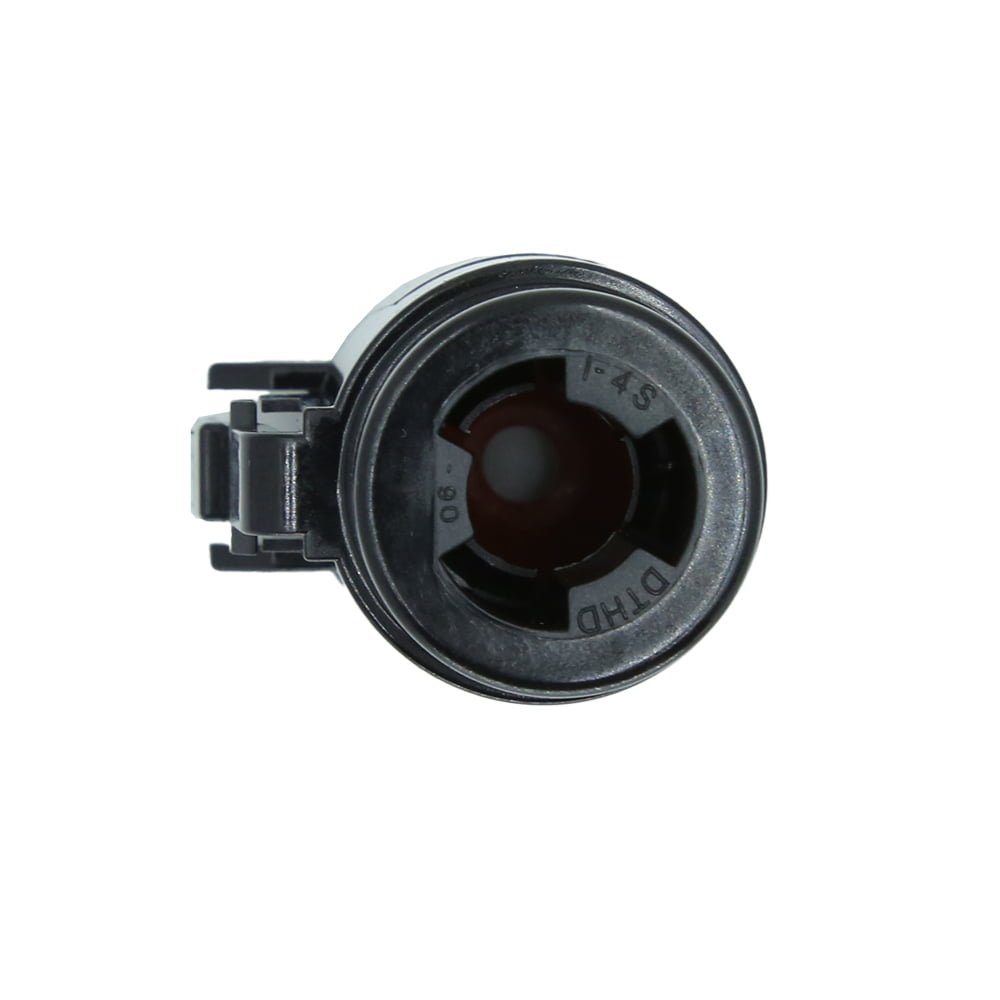

| Contact Features |
-
Contact Type : Socket
-
Contact Size : Size 4
-
Mating Pin Diameter : 5.72 mm [ .225 in ]
-
Contact Current Rating (Max) (A): 100
|

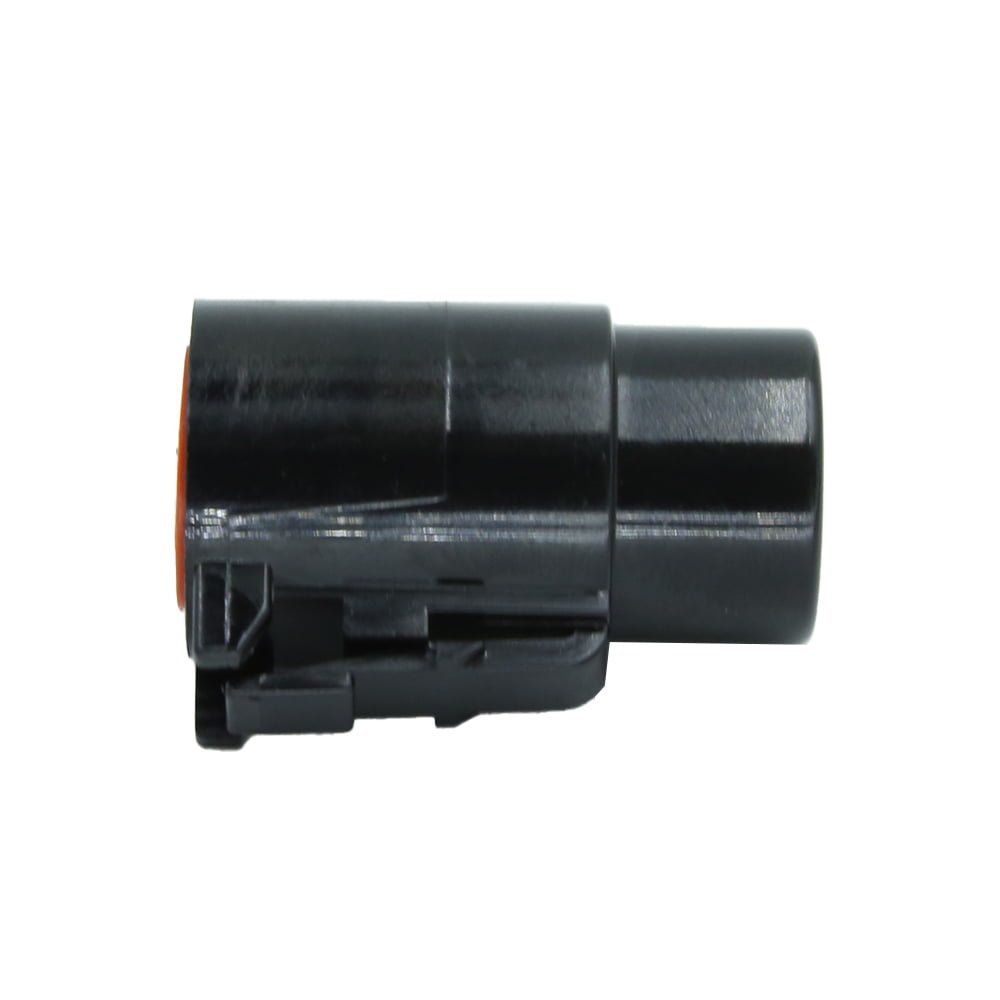

| Mechanical Attachment |
-
Mating Alignment : With
-
Mating Alignment Type : Polarizing Rib
-
Strain Relief : With
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : No
|

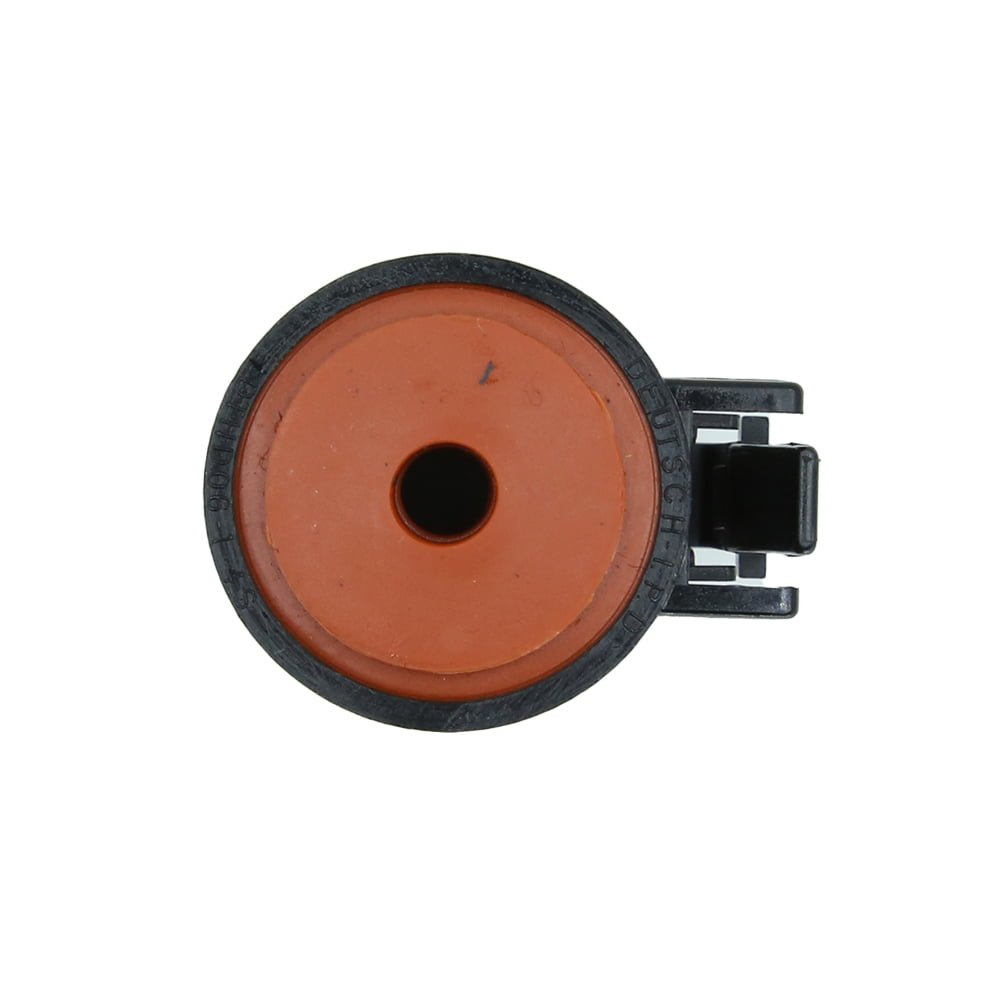

| Housing Features |
-
Housing Material : PEI (Polyetherimide)
|
| Dimensions |
-
Compatible Insulation Diameter Range : 6.63 – 10.67 mm [ .261 – .42 in ]
-
Product Length : 38.05 mm [ 1.498 in ]
-
Product Width : 22.23 mm [ .875 in ]
-
Connector Height : 27.33 mm [ 1.076 in ]
|
| Usage Conditions |
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
|
| Operation/Application |
-
Circuit Application : Power
|
| Industry Standards |
-
UL Flammability Rating : Not tested
-
Degree of Protection : Not Tested
|
| Packaging Features |
-
Packaging Method : Box
-
Packaging Quantity : 800
|
| Other |
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
|
If you need CAD or other information about the product, please contact us. Only part of the information is displayed on the website.
